PRODUCT
![]()
ชื่อรุ่น :

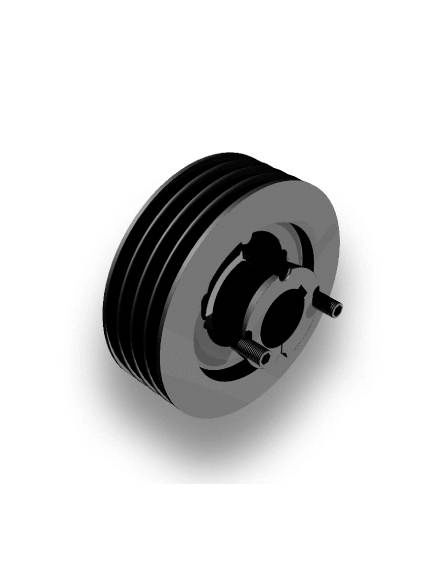

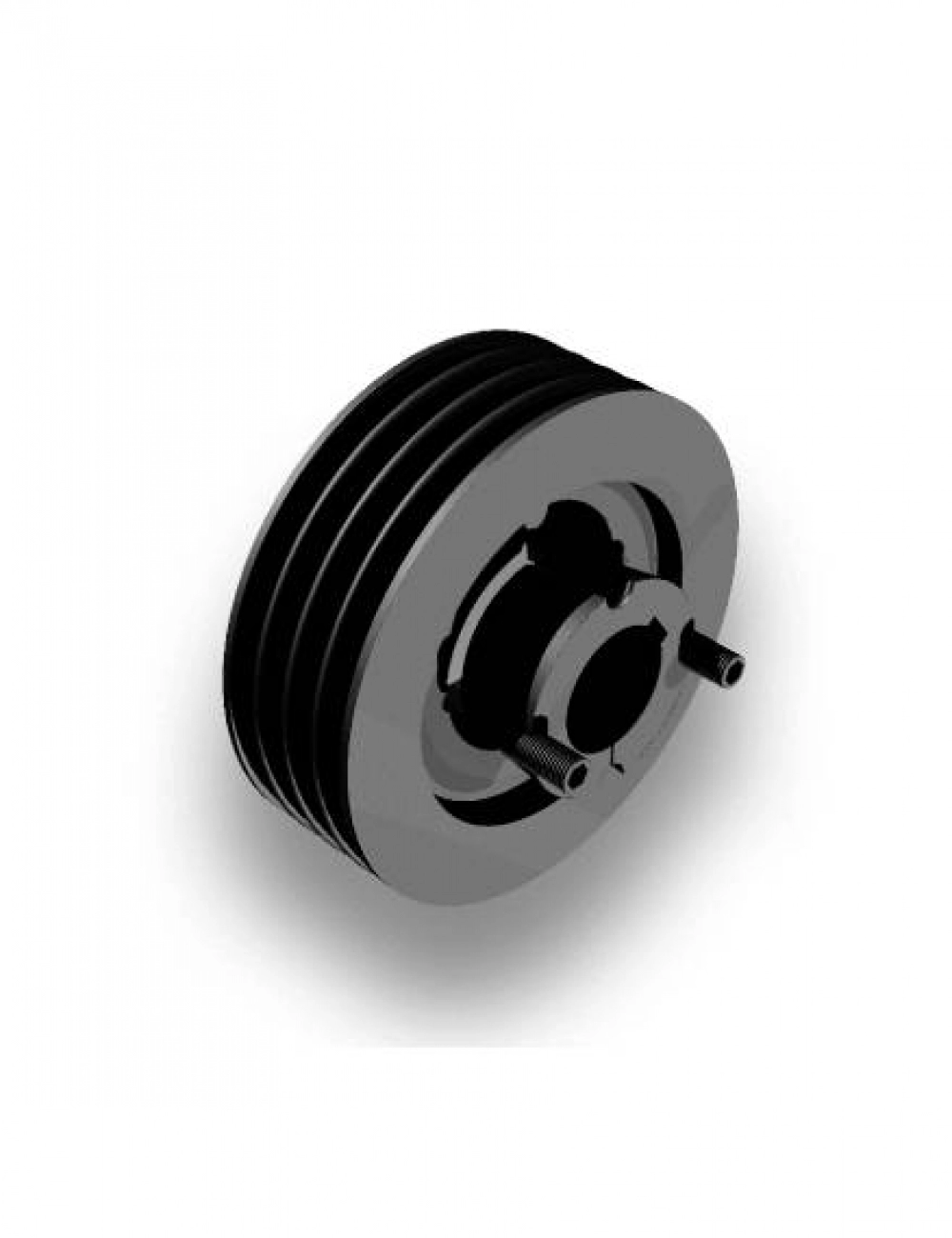

4 Groove 3V
แบรนด์
SKF
รายละเอียด :
Pulleys 3V (4 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 4 - 3V280TB
Model description
Bush no. 1108

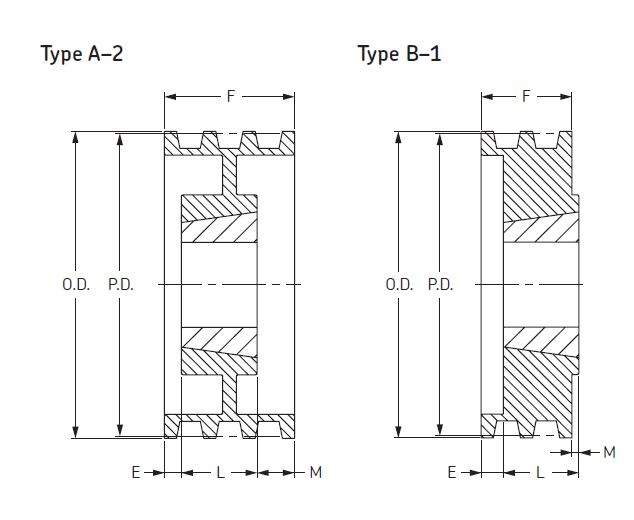

DIMENSIONS : Outside diameter = 2.80 in. , Pulley Type = B-1 , Bore min = 3/8 in , Bore max = 1.1/8 in. ,F = 1.29/32 in. , L = 7/8 in.
Price
Model
PHP 4 - 3V300TB
Model description
Bush no. 1210
DIMENSIONS : Outside diameter = 3.00 in. , Pulley Type = B-1 , Bore min = 5/8 in , Bore max = 1.1/4 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V315TB
Model description
Bush no. 1210
DIMENSIONS : Outside diameter = 3.15 in. , Pulley Type = B-1 , Bore min = 5/8 in , Bore max = 1.1/4 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V335TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 3.35 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V365TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 3.65 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V412TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 4.12 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V450TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 4.50 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V475TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 4.75 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V500TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 5.00 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V530TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 5.30 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V560TB
Model description
Bush no. 1610
DIMENSIONS : Outside diameter = 5.60 in. , Pulley Type = B-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 1.29/32 in. , L = 1 in.
Price
Model
PHP 4 - 3V600TB
Model description
Bush no. 2517
DIMENSIONS : Outside diameter = 6.00 in. , Pulley Type = B-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 1.29/32 in. , L = 1.3/4 in.
Price
Model
PHP 4 - 3V650TB
Model description
Bush no. 2517
DIMENSIONS : Outside diameter = 6.50 in. , Pulley Type = B-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 1.29/32 in. , L = 1.3/4 in.
Price
Model
PHP 4 - 3V690TB
Model description
Bush no. 2517
DIMENSIONS : Outside diameter = 6.90 in. , Pulley Type = B-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 1.29/32 in. , L = 1.3/4 in.
Price
Model
PHP 4 - 3V800TB
Model description
Bush no. 2517
DIMENSIONS : Outside diameter = 8.00 in. , Pulley Type = B-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 1.29/32 in. , L = 1.3/4 in.
Price
Model
PHP 4 - 3V1060TB
Model description
Bush no. 2517
DIMENSIONS : Outside diameter = 10.60 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 1.29/32 in. , L = 1.3/4 in.
Price
Model
PHP 4 - 3V1400TB
Model description
Bush no. 2517

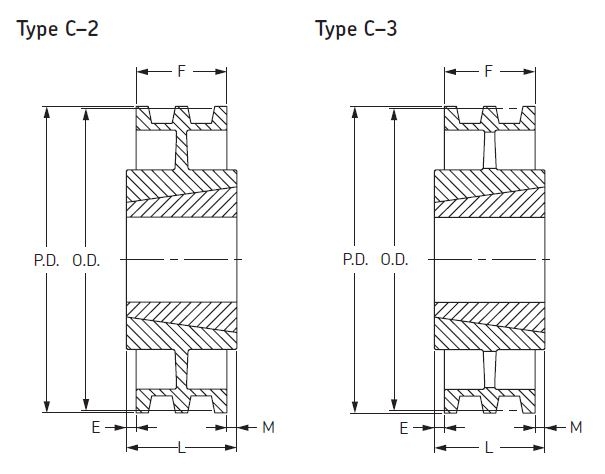

DIMENSIONS : Outside diameter = 14.00 in. , Pulley Type = C-3 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 1.29/32 in. , L = 1.3/4 in.
Price
Model
PHP 4 - 3V1900TB
Model description
Bush no. 3020
DIMENSIONS : Outside diameter = 19.00 in. , Pulley Type = C-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 1.29/32 in. , L = 3 in.
Price
Model
PHP 4 - 3V2500TB
Model description
Bush no. 3020
DIMENSIONS : Outside diameter = 25.00 in. , Pulley Type = C-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 1.29/32 in. , L = 3 in.
Price
Model
PHP 4 - 3V3350TB
Model description
Bush no. 3020
DIMENSIONS : Outside diameter = 33.50 in. , Pulley Type = C-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 1.29/32 in. , L = 3 in.
Price
