PRODUCT
![]()
ชื่อรุ่น :

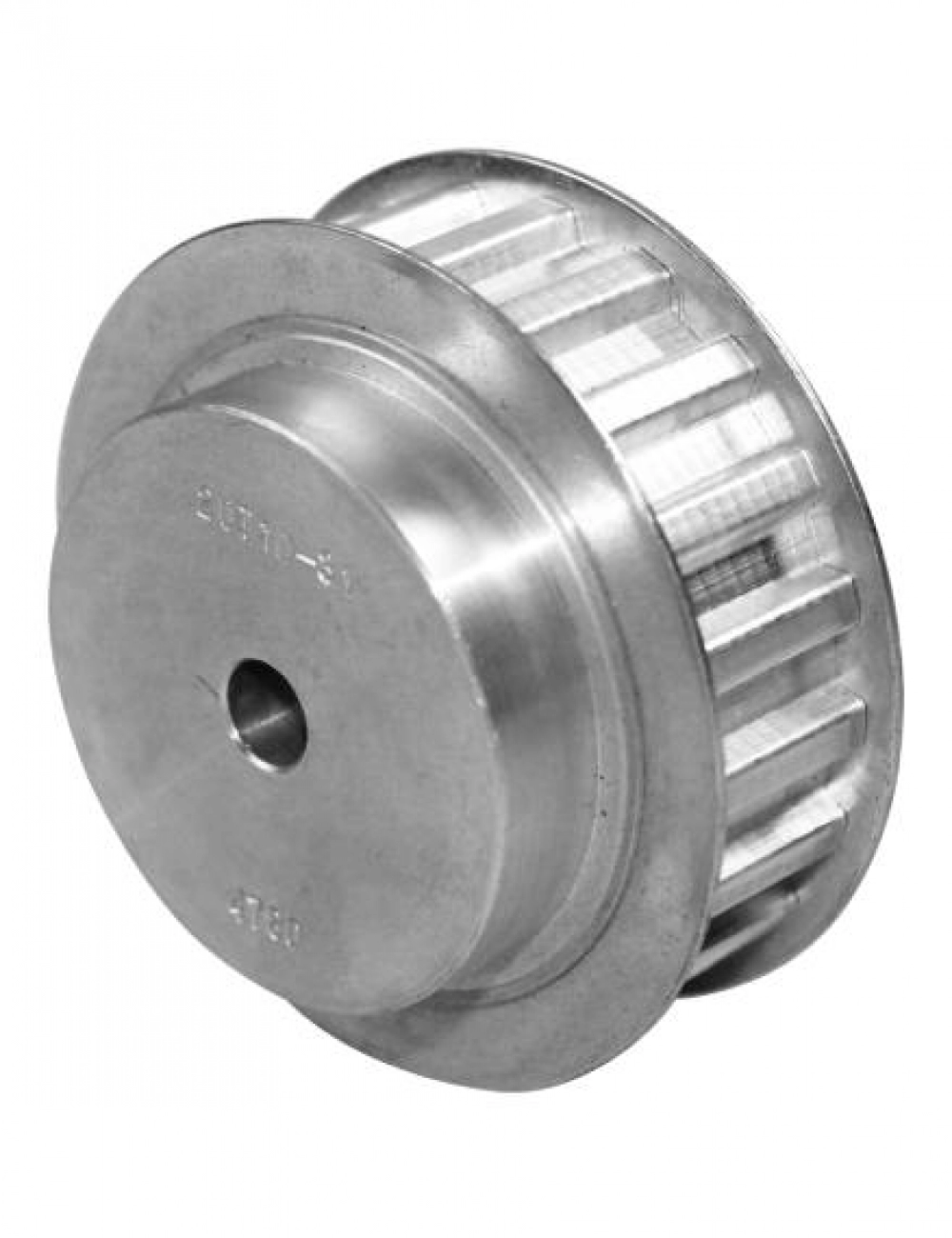

PHP 31 - T10 - XXRSB
แบรนด์
SKF
รายละเอียด :

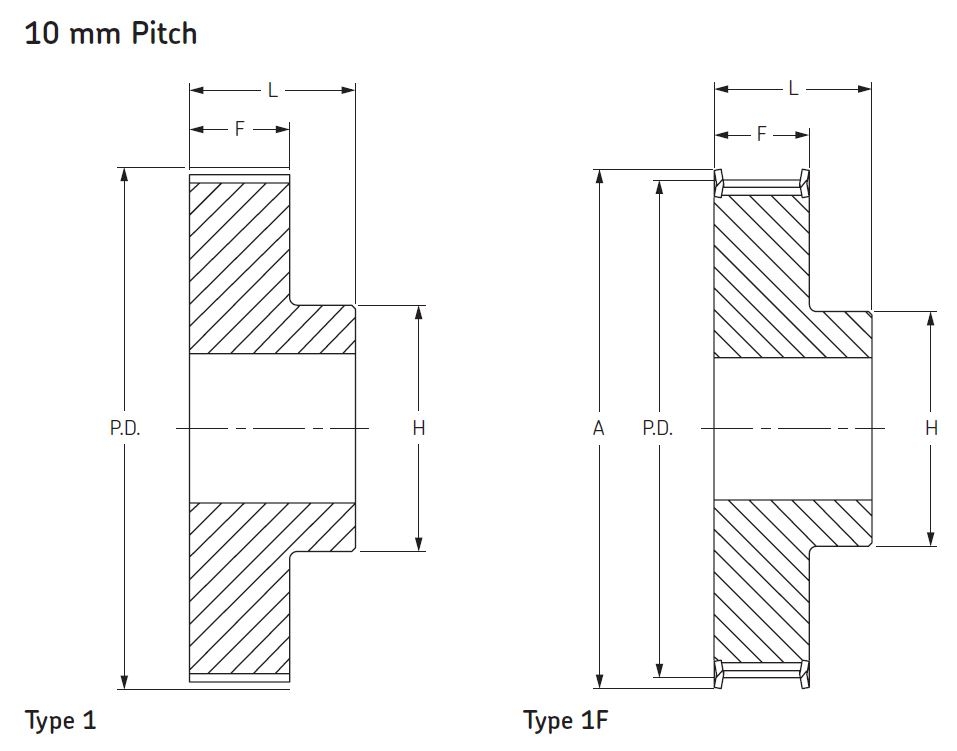

- ระยะห่างระหว่างฟัน ( Pitch ) = 10 mm
- สายพานหน้ากว้าง 16 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 36 - T10 - 12RSB
Model description
No. Teeth = 12
DIMENSIONS : Diameter (P.D.) = 38.20 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 18 mm ,F = 21 mm , H = 28 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 13RSB
Model description
No. Teeth = 13
DIMENSIONS : Diameter (P.D.) = 41.38 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 19 mm ,F = 21 mm , H = 32 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 14RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 44.56 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 21 mm ,F = 21 mm , H = 21 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 15RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 47.75 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 21 mm ,F = 21 mm , H = 32 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 16RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 50.93 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 23 mm ,F = 21 mm , H = 35 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 17RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 54.11 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 21 mm , H = 38 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 18RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 57.29 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 21 mm , H = 40 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 19RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 60.48 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 28 mm ,F = 21 mm , H = 44 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 20RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 63.66 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 30 mm ,F = 21 mm , H = 46 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 21RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 66.85 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 36 mm ,F = 21 mm , H = 48 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 22RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 70.03 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 34 mm ,F = 21 mm , H = 52 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 23RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 73.21 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 36 mm ,F = 21 mm , H = 55 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 24RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 38 mm ,F = 21 mm , H = 58 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 25RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 79.58 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 21 mm , H = 60 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 26RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 82.76 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 21 mm , H = 60 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 27RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 85.95 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 21 mm , H = 60 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 28RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 89.25 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 21 mm , H = 60 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 30RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 95.49 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 39 mm ,F = 21 mm , H = 60 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 32RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 42 mm ,F = 21 mm , H = 65 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 35RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 111.41 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 45 mm ,F = 21 mm , H = 70 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 36RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 45 mm ,F = 21 mm , H =70 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 38RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 120.96 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 48 mm ,F = 21 mm , H = 75 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 40RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 52 mm ,F = 21 mm , H = 80 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 42RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 133.69 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 52 mm ,F = 21 mm , H = 80 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 44RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 140.06 mm , Pulley Type = 1 , Bore min = 10 mm , Bore max = 57 mm ,F = 21 mm , H = 88 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 45RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 143.24 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 57 mm ,F = 21 mm , H = 90 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 48RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 152.78 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 62 mm ,F = 21 mm , H = 95 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 54RSB
Model description
No. Teeth = 54
DIMENSIONS : Diameter (P.D.) = 171.89 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 66 mm ,F = 21 mm , H = 100 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 57RSB
Model description
No. Teeth = 57
DIMENSIONS : Diameter (P.D.) = 181.44 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 66 mm ,F = 21 mm , H = 110 mm , L = 31 mm
Price
Model
PHP 36 - T10 - 60RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 190.98 mm , Pulley Type = 1 , Bore min = 16 mm , Bore max = 72 mm ,F = 21 mm , H = 110 mm , L = 31 mm
Price
