PRODUCT
![]()
ชื่อรุ่น :

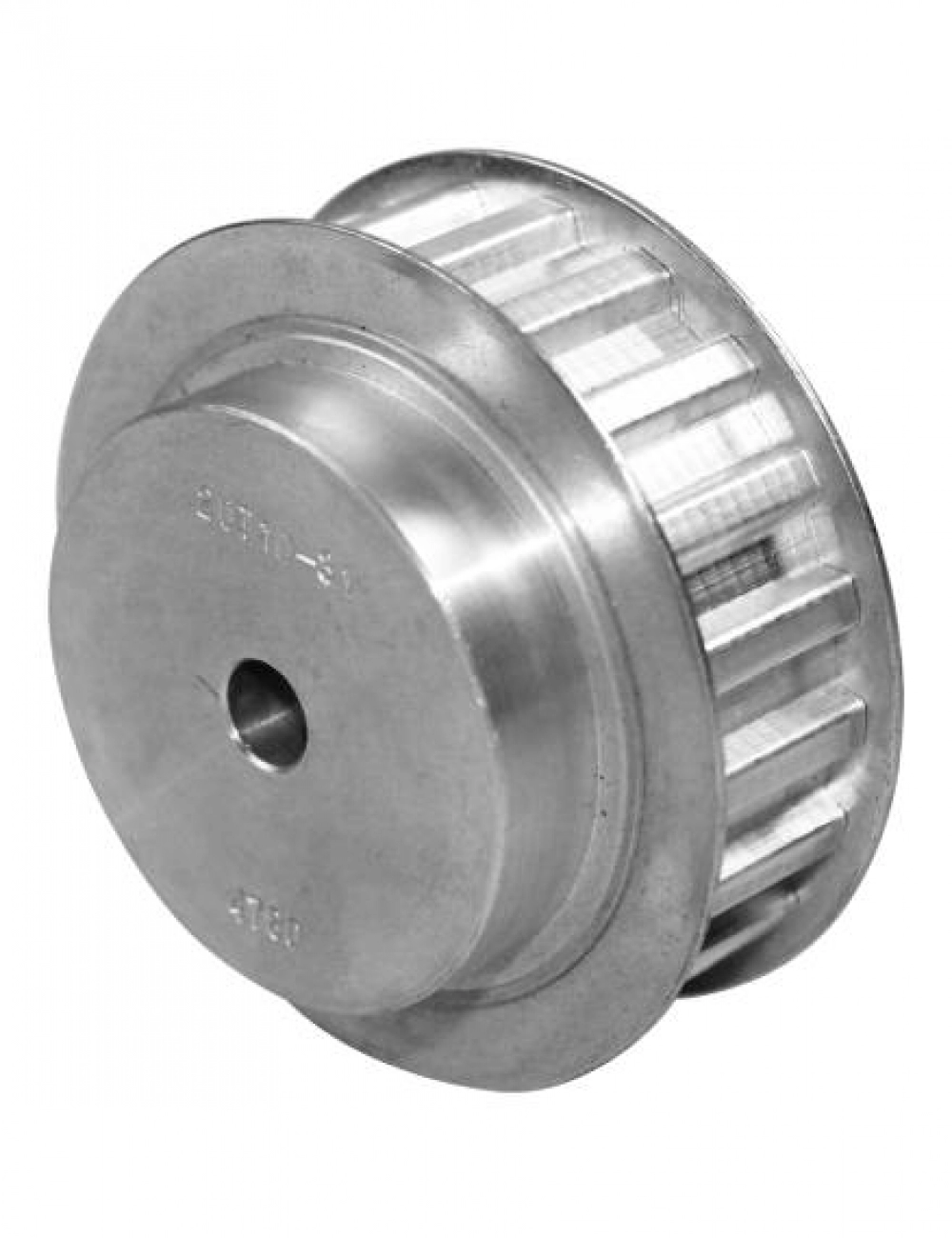

PHP 21 - T5 - XXRSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 5 mm
- สายพานหน้ากว้าง 10 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 21 - T5 - 10RSB
Model description
No. Teeth = 10
DIMENSIONS : Diameter (P.D.) = 15.92 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 5 mm ,F = 15 mm , H = 8 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 11RSB
Model description
No. Teeth = 11
DIMENSIONS : Diameter (P.D.) = 17.51 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 6 mm ,F = 15 mm , H = 10 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 12RSB
Model description
No. Teeth = 12
DIMENSIONS : Diameter (P.D.) = 19.10 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 15 mm , H = 12 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 13RSB
Model description
No. Teeth = 13
DIMENSIONS : Diameter (P.D.) = 20.69 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 8 mm ,F = 15 mm , H = 13 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 14RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 22.29 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9 mm ,F = 15 mm , H = 14 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 15RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 23.88 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 10 mm ,F = 15 mm , H = 16 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 16RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 25.47 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 11 mm ,F = 15 mm , H = 18 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 17RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 27.06 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 12 mm ,F = 15 mm , H = 19 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 18RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 28.65 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 13 mm ,F = 15 mm , H = 20 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 19RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 30.25 mm , Pulley Type = 1 F , Bore min = 6 mm , Bore max = 14 mm ,F = 15 mm , H = 22 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 20RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 31.83 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 15 mm , H = 24 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 21RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 33.42 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 15 mm , H = 24 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 22RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 35.01 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 15 mm , H = 24 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 23RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 36.61 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 16 mm ,F = 15 mm , H = 25 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 24RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 38.21 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 17 mm ,F = 15 mm , H = 26 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 25RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 39.80 mm , Pulley Type = 1F , Bore min =6 mm , Bore max = 17 mm ,F = 15 mm , H = 26 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 26RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 41.45 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 17 mm ,F = 15 mm , H = 26 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 27RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 42.98 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 19 mm ,F = 15 mm , H = 30 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 28RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 44.56 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 20 mm ,F = 15 mm , H = 32 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 30RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 47.76 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 22 mm ,F = 15 mm , H = 34 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 32RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 50.94 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 15 mm , H = 38 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 35RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 55.70 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 15 mm , H = 38 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 36RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 57.31 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 15 mm , H = 38 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 38RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 60.48 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 15 mm , H = 40 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 40RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 63.66 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 15 mm , H = 40 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 42RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 66.84 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 15 mm , H = 40 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 44RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 70.20 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 29 mm ,F = 15 mm , H = 45 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 45RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 71.62 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 31 mm ,F = 15 mm , H = 45 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 48RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 32 mm ,F = 15 mm , H = 50 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 54RSB
Model description
No. Teeth = 54
DIMENSIONS : Diameter (P.D.) = 58.94 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 35 mm ,F = 15 mm , H = 55 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 57RSB
Model description
No. Teeth = 57
DIMENSIONS : Diameter (P.D.) = 90.72 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 38 mm ,F = 15 mm , H = 60 mm , L = 21 mm
Price
Model
PHP 21 - T5 - 60RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 95.49 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 42 mm ,F = 15 mm , H = 65 mm , L = 21 mm
Price
