PRODUCT
![]()
ชื่อรุ่น :

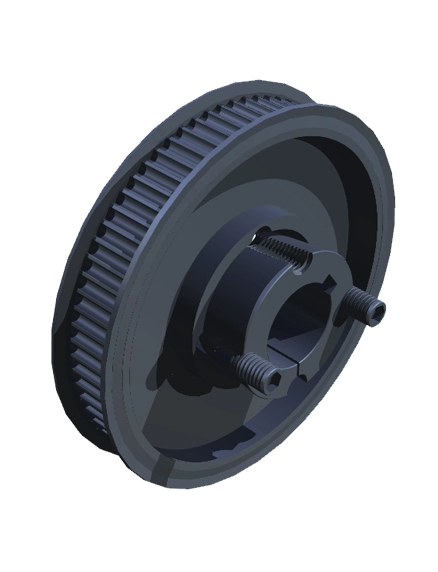

PHP XX - 8M - 85TB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 8 mm
- สายพานหน้ากว้าง 85 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 24 - 8M - 85TB
Model description
No. Teeth = 24 , Bush No. = 1108

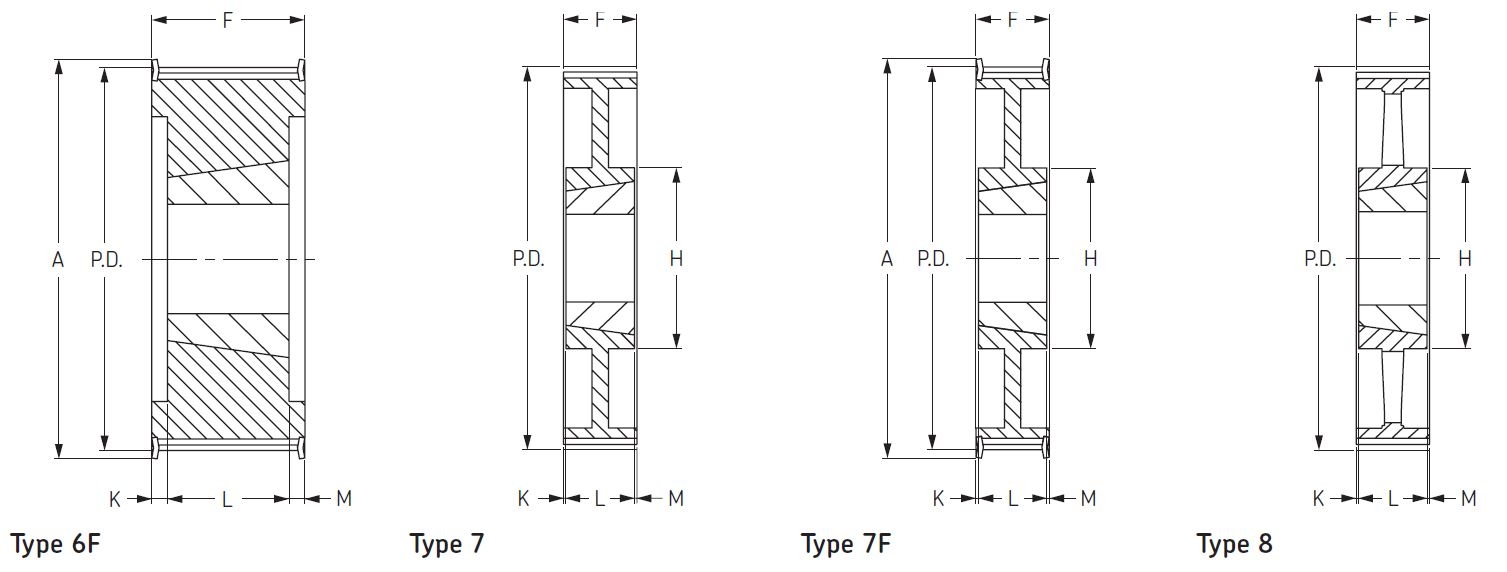

DIMENSIONS : Diameter (P.D.) = 61.12 mm , Pulley Type = 6F , Bore min = 9 mm , Bore max = 32 mm ,F = 95 mm , L = 22 mm
Price
Model
PHP 26 - 8M - 85TB
Model description
No. Teeth = 26 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 66.21 mm , Pulley Type = 6F , Bore min = 9 mm , Bore max = 32 mm ,F = 95 mm , L = 22 mm
Price
Model
PHP 28 - 8M - 85TB
Model description
No. Teeth = 28 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 71.30 mm , Pulley Type = 6F , Bore min = 9 mm , Bore max = 32 mm ,F = 95 mm , L = 22 mm
Price
Model
PHP 30 - 8M - 85TB
Model description
No. Teeth = 30 , Bush No. = 1615
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 32 mm ,F = 95 mm , L = 22 mm
Price
Model
PHP 33 - 8M - 85TB
Model description
No. Teeth = 33 , Bush No. = 1615
DIMENSIONS : Diameter (P.D.) = 84.03 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 22 mm
Price
Model
PHP 34 - 8M - 85TB
Model description
No. Teeth = 34 , Bush No. = 1615
DIMENSIONS : Diameter (P.D.) = 86.58 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 38 mm
Price
Model
PHP 35 - 8M - 85TB
Model description
No. Teeth = 35 , Bush No. = 1615
DIMENSIONS : Diameter (P.D.) = 89.13 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 38 mm
Price
Model
PHP 36 - 8M - 85TB
Model description
No. Teeth = 36 , Bush No. = 1615
DIMENSIONS : Diameter (P.D.) = 91.77 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 38 mm
Price
Model
PHP 38 - 8M - 85TB
Model description
No. Teeth = 38 , Bush No. = 1615
DIMENSIONS : Diameter (P.D.) = 96.77 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 38 mm
Price
Model
PHP 40 - 8M - 85TB
Model description
No. Teeth = 40 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 32 mm
Price
Model
PHP 42 - 8M - 85TB
Model description
No. Teeth = 42 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 106.95 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 32 mm
Price
Model
PHP 44 - 8M - 85TB
Model description
No. Teeth = 44 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 112.05 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 42 mm ,F = 95 mm , L = 32 mm
Price
Model
PHP 45 - 8M - 85TB
Model description
No. Teeth = 45 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 95 mm , L = 32 mm
Price
Model
PHP 48 - 8M - 85TB
Model description
No. Teeth = 48 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 122.23 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 50 - 8M - 85TB
Model description
No. Teeth = 50 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 52 - 8M - 85TB
Model description
No. Teeth = 52 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 132.42 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 56 - 8M - 85TB
Model description
No. Teeth = 56 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 58 - 8M - 85TB
Model description
No. Teeth = 58 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 147.70 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 60 - 8M - 85TB
Model description
No. Teeth = 60 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 152.79 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 64 - 8M - 85TB
Model description
No. Teeth = 64 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 162.97 mm , Pulley Type = 7F , Bore min = 16 mm , Bore max = 50 mm ,F = 95 mm , L = 45 mm
Price
Model
PHP 72 - 8M - 85TB
Model description
No. Teeth = 72 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 183.35 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 60 mm ,F = 95 mm , L = 51 mm
Price
Model
PHP 80 - 8M - 85TB
Model description
No. Teeth = 80 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 203.72 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 60 mm ,F = 95 mm , L = 51 mm
Price
Model
PHP 90 - 8M - 85TB
Model description
No. Teeth = 90 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 229.18 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 60 mm ,F = 95 mm , L = 51 mm
Price
Model
PHP 112 - 8M - 85TB
Model description
No. Teeth = 112 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 285.21 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 60 mm ,F = 95 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 144 - 8M - 85TB
Model description
No. Teeth = 144 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 366.69 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 95 mm , L = 89 mm , H = 190 mm
Price
Model
PHP 168 - 8M - 85TB
Model description
No. Teeth = 168 , Bush No. = 3535
DIMENSIONS : Diameter (P.D.) = 427.81 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 95 mm , L = 89 mm , H = 190 mm
Price
Model
PHP 192 - 8M - 85TB
Model description
No. Teeth = 192 , Bush No. = 3535
DIMENSIONS : Diameter (P.D.) = 488.92 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 95 mm , L = 89 mm , H = 190 mm
Price
