ชื่อรุ่น :

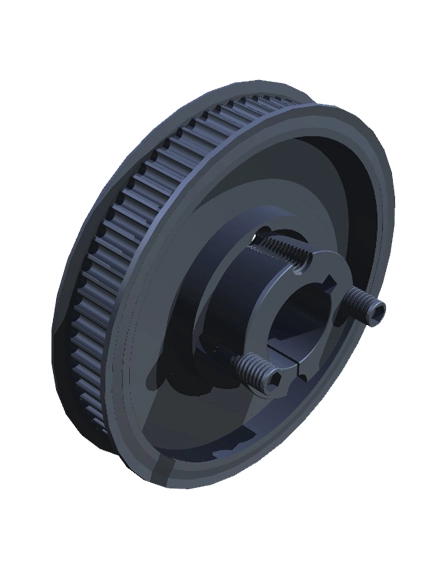

PHP XX - 8M - 50TB

แบรนด์

SKF

รายละเอียด :

  • ระยะห่างระหว่างฟัน ( Pitch ) = 8 mm
  • สายพานหน้ากว้าง 50 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 24 - 8M - 50TB
Model description

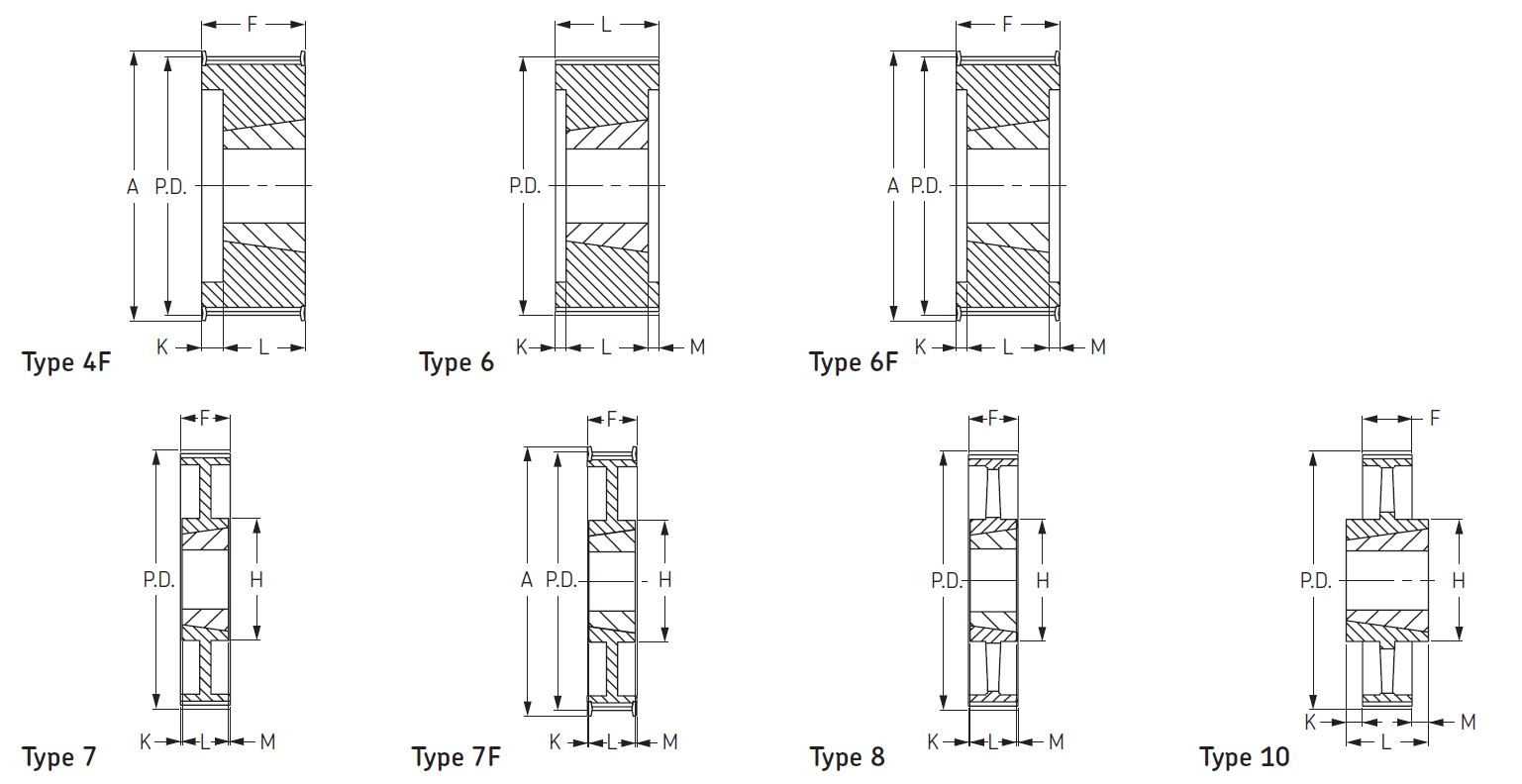

No. Teeth = 24 , Bush No. = 1108 DIMENSIONS : Diameter (P.D.) = 61.12 mm , Pulley Type = 6F , Bore min = 9 mm , Bore max = 32 mm ,F = 60 mm , L = 22 mm
Price
Model
PHP 26 - 8M - 50TB
Model description
No. Teeth = 26 , Bush No. = 1108 DIMENSIONS : Diameter (P.D.) = 66.21 mm , Pulley Type = 6F , Bore min = 9 mm , Bore max = 32 mm ,F = 60 mm , L = 22 mm
Price
Model
PHP 27 - 8M - 50TB
Model description
No. Teeth = 27 , Bush No. = 68.75 DIMENSIONS : Diameter (P.D.) = 68.75 mm , Pulley Type = 6F , Bore min = 9 mm , Bore max = 32 mm ,F = 60 mm , L = 22 mm
Price
Model
PHP 28 - 8M - 50TB
Model description
No. Teeth = 28 , Bush No. = 1108 DIMENSIONS : Diameter (P.D.) = 71.30 mm , Pulley Type = 4F , Bore min = 9 mm , Bore max = 32 mm ,F = 60 mm , L = 22 mm
Price
Model
PHP 30 - 8M - 50TB
Model description
No. Teeth = 30 , Bush No. = 1210 DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 4F , Bore min = 11 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 31 - 8M - 50TB
Model description
No. Teeth = 31 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 78.94 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 32 - 8M - 50TB
Model description
No. Teeth = 32 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 81.49 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 33 - 8M - 50TB
Model description
No. Teeth = 33 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 84.03 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 34 - 8M - 50TB
Model description
No. Teeth = 34 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 86.58 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 35 - 8M - 50TB
Model description
No. Teeth = 35 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 89.13 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 36 - 8M - 50TB
Model description
No. Teeth = 36 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 91.67 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 38 - 8M - 50TB
Model description
No. Teeth = 38 , Bush No. = 1610 DIMENSIONS : Diameter (P.D.) = 96.77 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 60 mm , L = 25 mm
Price
Model
PHP 40 - 8M - 50TB
Model description
No. Teeth = 40 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 42 - 8M - 50TB
Model description
No. Teeth = 42 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 106.95 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 44 - 8M - 50TB
Model description
No. Teeth = 44 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 112.05 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 45 - 8M - 50TB
Model description
No. Teeth = 45 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 48 - 8M - 50TB
Model description
No. Teeth = 48 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 122.23 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 50 - 8M - 50TB
Model description
No. Teeth = 50 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 52 - 8M - 50TB
Model description
No. Teeth = 52, Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 132.42 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 60 mm , L = 32 mm
Price
Model
PHP 56 - 8M - 50TB
Model description
No. Teeth = 56 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 58 - 8M - 50TB
Model description
No. Teeth = 58 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 147.70 mm , Pulley Type = 6F, Bore min = 16 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 60 - 8M - 50TB
Model description
No. Teeth = 60 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 152.79 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 64 - 8M - 50TB
Model description
No. Teeth = 64 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 162.97 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 72 - 8M - 50TB
Model description
No. Teeth = 72, Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 183.35 mm , Pulley Type = 7F , Bore min = 16 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 80 - 8M - 50TB
Model description
No. Teeth = 80 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 203.72 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 75 mm ,F = 60 mm , L = 45 mm , H = 125 mm
Price
Model
PHP 90 - 8M - 50TB
Model description
No. Teeth = 90 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 229.18 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 60 mm , L = 51 mm , H = 160 mm
Price
Model
PHP 112 - 8M - 50TB
Model description
No. Teeth = 112 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 285.21 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 60 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 144 - 8M - 50TB
Model description
No. Teeth = 144 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 366.69 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 60 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 168 - 8M - 50TB
Model description
No. Teeth = 168 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 427.81 mm , Pulley Type = 10 , Bore min = 25 mm , Bore max = 100 mm ,F = 60 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 192 - 8M - 50TB
Model description
No. Teeth = 192 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 488.92 mm , Pulley Type = 10 , Bore min = 25 mm , Bore max = 100 mm ,F = 60 mm , L = 51 mm , H = 170 mm
Price
