PRODUCT
![]()
ชื่อรุ่น :
PHP XX - 8M - 20TB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 8 mm
- สายพานหน้ากว้าง 20 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 22 - 8M - 20TB
Model description
No. Teeth = 22 , Bush No. = 1008

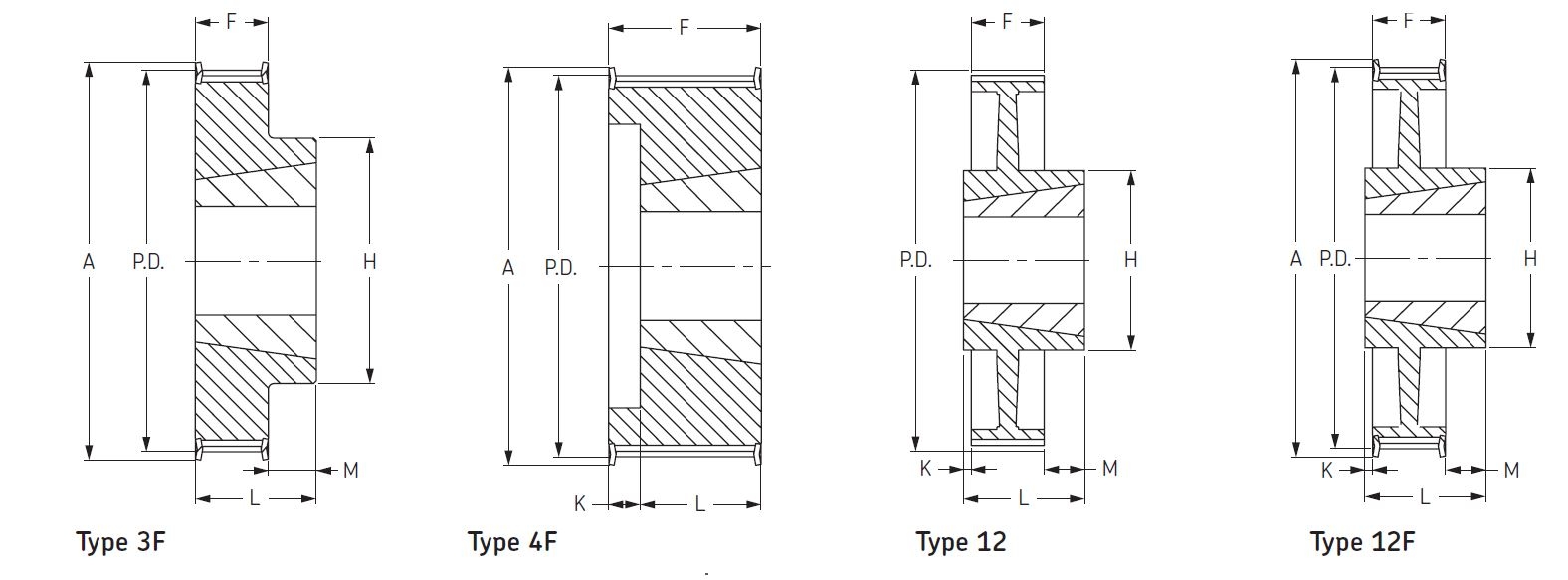

DIMENSIONS : Diameter (P.D.) = 56.02 mm , Pulley Type = 4F , Bore min = 9 mm , Bore max = 25 mm ,F = 28 mm , L = 22 mm
Price
Model
PHP 24 - 8M - 20TB
Model description
No. Teeth = 24 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 61.12 mm , Pulley Type = 4F , Bore min = 9 mm , Bore max = 25 mm ,F = 28 mm , L = 22 mm
Price
Model
PHP 26 - 8M - 20TB
Model description
No. Teeth = 26 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 66.21 mm , Pulley Type = 4F , Bore min = 9 mm , Bore max = 25 mm ,F = 28 mm , L = 22 mm
Price
Model
PHP 28 - 8M - 20TB
Model description
No. Teeth = 28 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 71.30 mm , Pulley Type = 4F , Bore min = 9 mm , Bore max = 25 mm ,F = 28 mm , L = 22 mm
Price
Model
PHP 30 - 8M - 20TB
Model description
No. Teeth = 30 , Bush No. = 1210
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 4F , Bore min = 11 mm , Bore max = 28 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 32 - 8M - 20TB
Model description
No. Teeth = 32 , Bush No. = 1210
DIMENSIONS : Diameter (P.D.) = 81.49 mm , Pulley Type = 4F , Bore min = 11 mm , Bore max = 42 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 34 - 8M - 20TB
Model description
No. Teeth = 34 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 86.58 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 36 - 8M - 20TB
Model description
No. Teeth = 36 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 91.67 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 38 - 8M - 20TB
Model description
No. Teeth = 38 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 96.77 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 40 - 8M - 20TB
Model description
No. Teeth = 40 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 42 - 8M - 20TB
Model description
No. Teeth = 42 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 106.95 mm , Pulley Type = 4F , Bore min = 14 mm , Bore max = 42 mm ,F = 28 mm , L = 25 mm
Price
Model
PHP 44 - 8M - 20TB
Model description
No. Teeth = 44 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 112.05 mm , Pulley Type = 3F , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , L = 32 mm , H = 92 mm
Price
Model
PHP 48 - 8M - 20TB
Model description
No. Teeth = 48 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 122.23 mm , Pulley Type = 3F , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , L = 32 mm , H = 96 mm
Price
Model
PHP 56 - 8M - 20TB
Model description
No. Teeth = 56 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 3F , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , L = 32 mm , H = 110 mm
Price
Model
PHP 60 - 8M - 20TB
Model description
No. Teeth = 60 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 152.79 mm , Pulley Type = 3F , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , L = 32 mm , H = 110 mm
Price
Model
PHP 64 - 8M - 20TB
Model description
No. Teeth = 64 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 162.97 mm , Pulley Type = 12F , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , L = 32 mm , H = 110 mm
Price
Model
PHP 72 - 8M - 20TB
Model description
No. Teeth = 72 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 183.35 mm , Pulley Type = 12F , Bore min = 14 mm , Bore max = 50 mm ,F = 28 mm , L = 32 mm , H = 110 mm
Price
Model
PHP 80 - 8M - 20TB
Model description
No. Teeth = 80 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 203.72 mm , Pulley Type = 12 , Bore min = 16 mm , Bore max = 50 mm ,F = 28 mm , L = 45 mm , H = 125125 mm
Price
Model
PHP 90 - 8M - 20TB
Model description
No. Teeth = 90 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 229.18 mm , Pulley Type = 12 , Bore min = 16 mm , Bore max = 50 mm ,F = 28 mm , L = 45 mm , H = 125 mm
Price
