PRODUCT
![]()
ชื่อรุ่น :

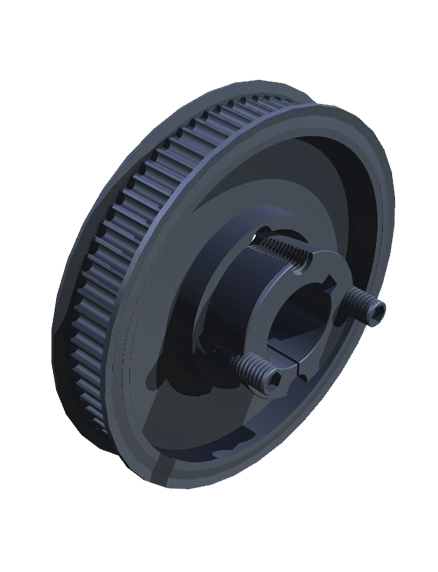

PHP XX - 5M - 15TB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 5 mm
- สายพานหน้ากว้าง 15 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 34 - 5M - 15TB
Model description
No. Teeth = 34 , Bush No. = 1008

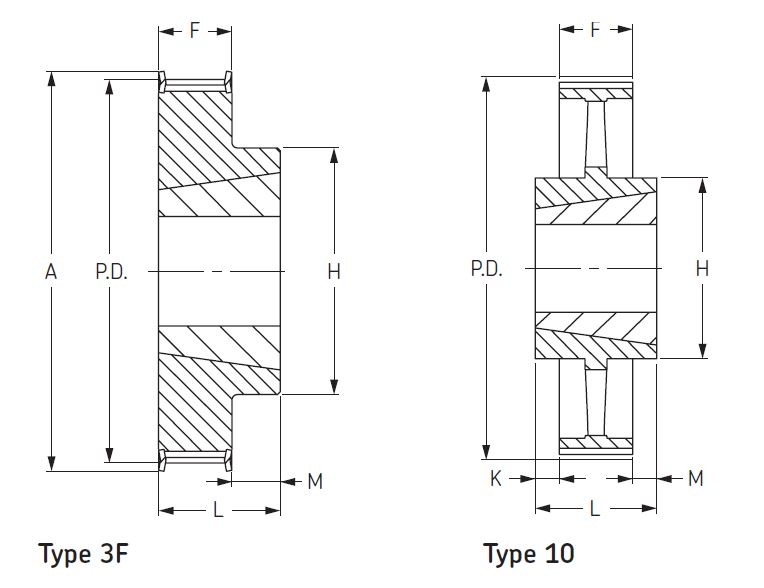

DIMENSIONS : Diameter (P.D.) = 54.11 mm , Pulley Type = 3F , Bore min = 9 mm , Bore max = 25 mm ,F = 20.5 mm , L = 22 mm , H = 43 mm
Price
Model
PHP 36 - 5M - 15TB
Model description
No. Teeth = 36 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 57.30 mm , Pulley Type = 3F , Bore min = 9 mm , Bore max = 28 mm ,F = 20.5 mm , L = 22 mm , H = 45 mm
Price
Model
PHP 38 - 5M - 15TB
Model description
No. Teeth = 38 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 60.48 mm , Pulley Type = 3F , Bore min = 9 mm , Bore max = 28 mm ,F = 20.5 mm , L = 22 mm , H = 48 mm
Price
Model
PHP 40 - 5M - 15TB
Model description
No. Teeth = 40 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 63.66 mm , Pulley Type = 3F , Bore min = 9 mm , Bore max = 28 mm ,F = 20.5 mm , L = 22 mm , H = 52 mm
Price
Model
PHP 44 - 5M - 15TB
Model description
No. Teeth = 44 , Bush No. = 1108
DIMENSIONS : Diameter (P.D.) = 70.03 mm , Pulley Type = 3F , Bore min = 9 mm , Bore max = 28 mm ,F = 20.5 mm , L = 22 mm , H = 54 mm
Price
Model
PHP 48 - 5M - 15TB
Model description
No. Teeth = 48, Bush No. = 1210
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 3F , Bore min = 11 mm , Bore max = 32 mm ,F = 20.5 mm , L = 25 mm , H = 64 mm
Price
Model
PHP 56 - 5M - 15TB
Model description
No. Teeth = 56 , Bush No. = 1210
DIMENSIONS : Diameter (P.D.) = 89.13 mm , Pulley Type = 3F , Bore min = 11 mm , Bore max = 32 mm ,F = 20.5 mm , L = 25 mm , H = 70 mm
Price
Model
PHP 64 - 5M - 15TB
Model description
No. Teeth = 64 , Bush No. = 1210
DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 3F , Bore min = 11 mm , Bore max = 32 mm ,F = 20.5 mm , L = 25 mm , H = 78 mm
Price
Model
PHP 72 - 5M - 15TB
Model description
No. Teeth = 72 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 3F , Bore min = 14 mm , Bore max = 42 mm ,F = 20.5 mm , L = 25 mm , H = 90 mm
Price
Model
PHP 80 - 5M - 15TB
Model description
No. Teeth = 80 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 3F , Bore min = 14 mm , Bore max = 42 mm ,F = 20.5 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 90 - 5M - 15TB
Model description
No. Teeth = 90 , Bush No. = 1610
DIMENSIONS : Diameter (P.D.) = 143.24 mm , Pulley Type = 10 , Bore min = 14 mm , Bore max = 20.5 mm ,F = 20.5 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 112 - 5M - 15TB
Model description
No. Teeth = 112 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 178.25 mm , Pulley Type = 10 , Bore min = 14 mm , Bore max = 42 mm ,F = 20.5 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 136 - 5M - 15TB
Model description
No. Teeth = 136 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 216.45 mm , Pulley Type = 10 , Bore min = 14 mm , Bore max = 50 mm ,F = 20.5 mm , L = 32 mm , H = 106 mm
Price
Model
PHP 150 - 5M - 15TB
Model description
No. Teeth = 150 , Bush No. = 2012
DIMENSIONS : Diameter (P.D.) = 238.73 mm , Pulley Type = 10 , Bore min = 14 mm , Bore max = 50 mm ,F = 20.5 mm , L = 32 mm , H = 106 mm
Price
