ชื่อรุ่น :

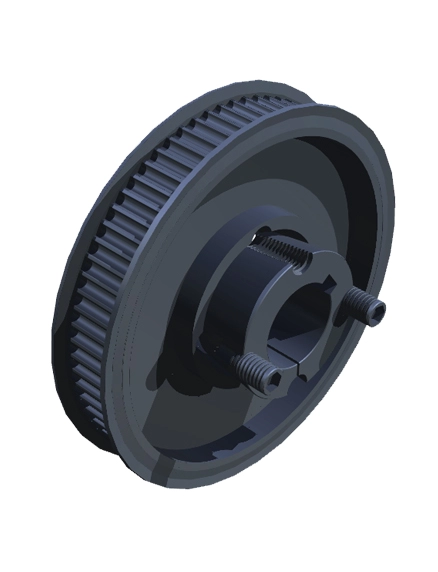

PHP XX - 14M - 55TB

แบรนด์

SKF

รายละเอียด :

  • ระยะห่างระหว่างฟัน ( Pitch ) = 14 mm
  • สายพานหน้ากว้าง 55 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 28 - 14M - 55TB
Model description

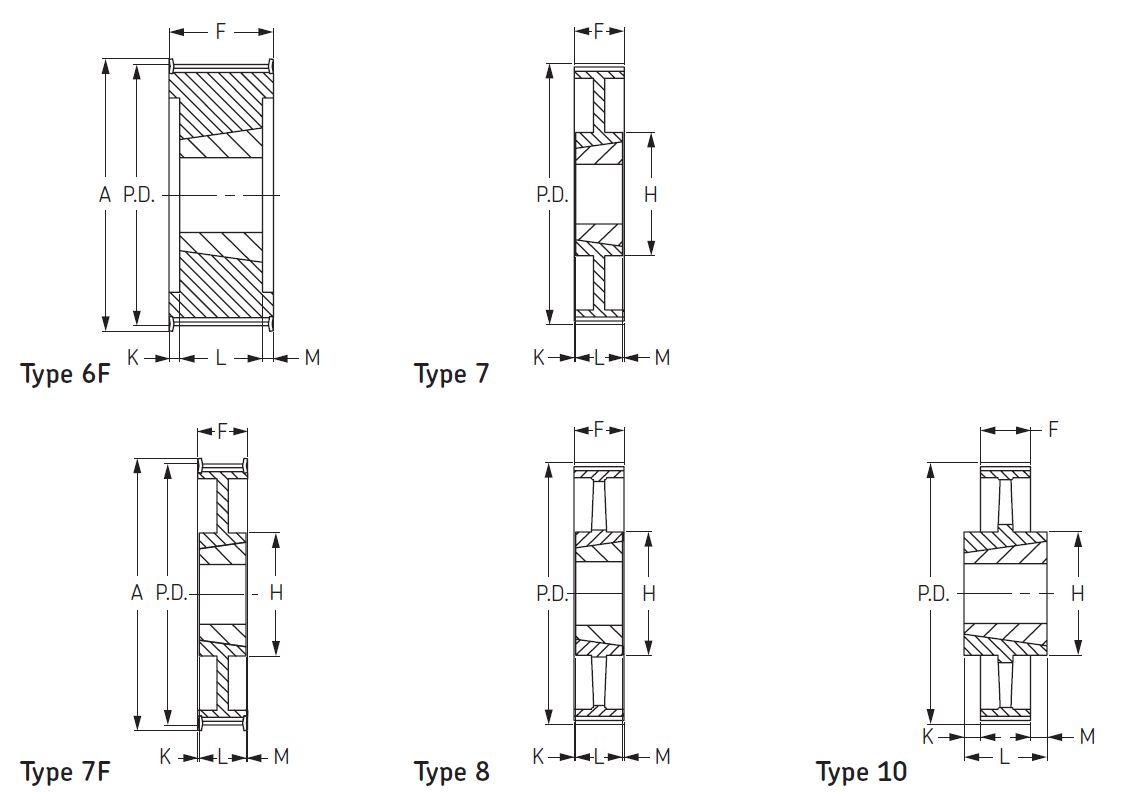

No. Teeth = 28 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 124.78 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 70 mm , L = 32 mm
Price
Model
PHP 29 - 14M - 55TB
Model description
No. Teeth = 29 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 129.23 mm , Pulley Type = 6F , Bore min = 14 mm , Bore max = 50 mm ,F = 70 mm , L = 32 mm
Price
Model
PHP 30 - 14M - 55TB
Model description
No. Teeth = 30 , Bush No. = 2012 DIMENSIONS : Diameter (P.D.) = 133.69 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 32 - 14M - 55TB
Model description
No. Teeth = 32 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 34 - 14M - 55TB
Model description
No. Teeth = 34 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 151.51 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 35 - 14M - 55TB
Model description
No. Teeth = 35 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 155.97 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 36 - 14M - 55TB
Model description
No. Teeth = 36 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 160.43 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 38 - 14M - 55TB
Model description
No. Teeth = 38 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 169.34 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 40 - 14M - 55TB
Model description
No. Teeth = 40 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 178.25 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 42 - 14M - 55TB
Model description
No. Teeth = 42 , Bush No. = 2517 DIMENSIONS : Diameter (P.D.) = 187.17 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 70 mm , L = 45 mm
Price
Model
PHP 44 - 14M - 55TB
Model description
No. Teeth = 44 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 196.08 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm
Price
Model
PHP 45 - 14M - 55TB
Model description
No. Teeth = 45 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 200.54 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm
Price
Model
PHP 48 - 14M - 55TB
Model description
No. Teeth = 48 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 213.90 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm
Price
Model
PHP 50 - 14M - 55TB
Model description
No. Teeth = 50 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 228.82 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm
Price
Model
PHP 56 - 14M - 55TB
Model description
No. Teeth = 56, Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 249.55 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm
Price
Model
PHP 60 - 14M - 55TB
Model description
No. Teeth = 60 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 267.38 mm , Pulley Type = 7F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 64 - 14M - 55TB
Model description
No. Teeth = 64 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 285 21 mm , Pulley Type = 7F , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 72 - 14M - 55TB
Model description
No. Teeth 72 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 320.86 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 80 - 14M - 55TB
Model description
No. Teeth = 80 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 356.51 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 90 - 14M - 55TB
Model description
No. Teeth = 90 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 401.07 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 112 - 14M - 55TB
Model description
No. Teeth 112 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 499.11 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 144 - 14M - 55TB
Model description
No. Teeth = 114 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 641.71 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 168 - 14M - 55TB
Model description
No. Teeth = 168, Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 748.66 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 192 - 14M - 55TB
Model description
No. Teeth = 192 , Bush No. = 3020 DIMENSIONS : Diameter (P.D.) = 855.62 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 70 mm , L = 51 mm , H = 170 mm
Price
Model
PHP 216 - 14M - 55TB
Model description
No. Teeth = 216 , Bush No. = 3525 DIMENSIONS : Diameter (P.D.) = 962.56 mm , Pulley Type = 10 , Bore min = 35 mm , Bore max = 100 mm ,F = 70 mm , L = 51 mm , H = 190 mm
Price
สอบถามเพิ่มเติม
