PRODUCT
![]()
ชื่อรุ่น :

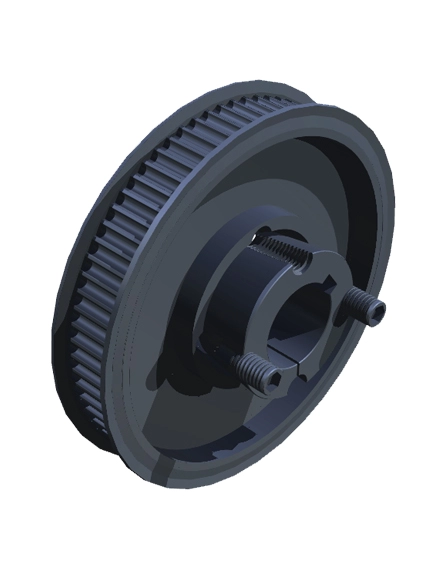

PHP XX - 14M - 115TB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 14 mm
- สายพานหน้ากว้าง 115 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 28 - 14M - 115TB
Model description
No. Teeth = 28 , Bush No. = 2517

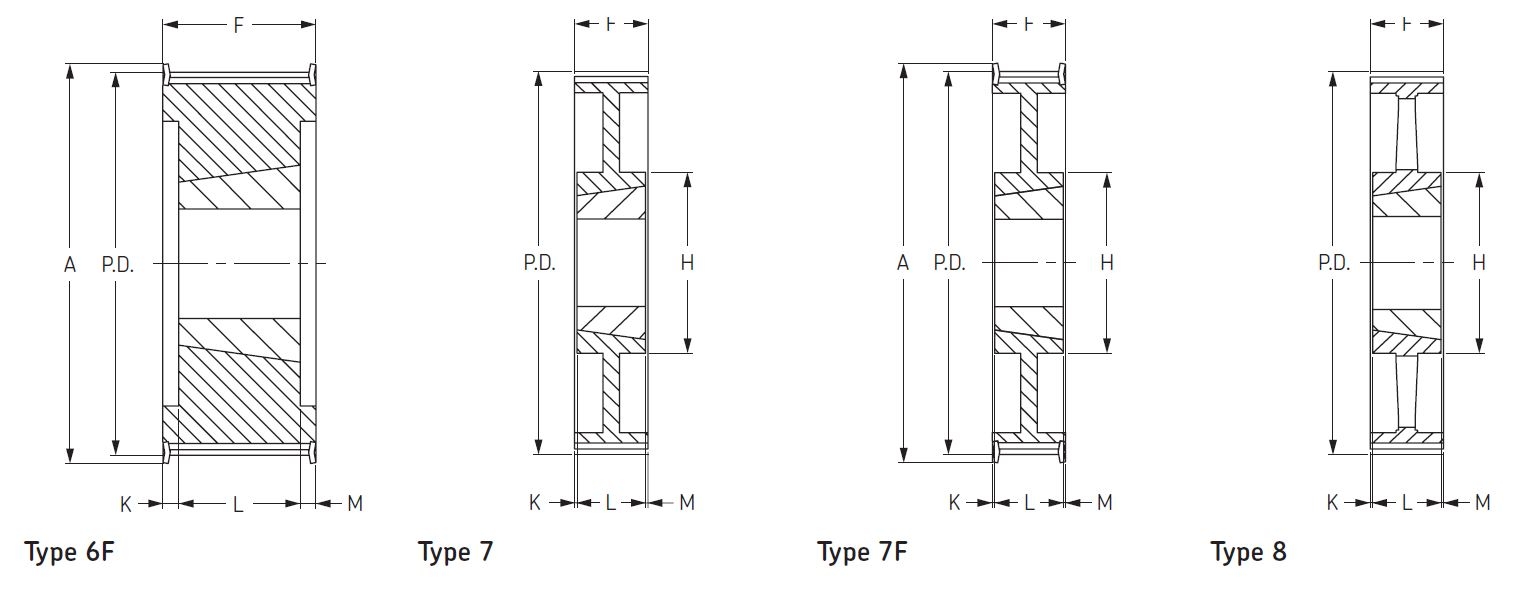

DIMENSIONS : Diameter (P.D.) = 124.78 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 133 mm , L = 45 mm
Price
Model
PHP 29 - 14M - 115TB
Model description
No. Teeth = 29 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 129.23 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 133 mm , L = 45 mm
Price
Model
PHP 30 - 14M - 115TB
Model description
No. Teeth = 30 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 133.69 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 133 mm , L = 45 mm
Price
Model
PHP 32 - 14M - 115TB
Model description
No. Teeth = 32 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 133 mm , L = 45 mm
Price
Model
PHP 34 - 14M - 115TB
Model description
No. Teeth = 34 , Bush No. = 2517
DIMENSIONS : Diameter (P.D.) = 151.52 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 133 mm , L = 45 mm
Price
Model
PHP 35 - 14M - 115TB
Model description
No. Teeth = 35 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 155.97 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 133 mm , L = 51 mm
Price
Model
PHP 36 - 14M - 115TB
Model description
No. Teeth = 36 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 160.43 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 133 mm , L = 51 mm
Price
Model
PHP 38 - 14M - 115TB
Model description
No. Teeth = 38 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 169.34 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 133 mm , L = 51 mm
Price
Model
PHP 40 - 14M - 115TB
Model description
No. Teeth = 40 , Bush No. = 3020
DIMENSIONS : Diameter (P.D.) = 178.25 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 133 mm , L = 51 mm
Price
Model
PHP 42 - 14M - 115TB
Model description
No. Teeth = 42 , Bush No. = 3535
DIMENSIONS : Diameter (P.D.) = 187.17 mm , Pulley Type = 6F , Bore min = 35 mm , Bore max = 100 mm ,F = 133 mm , L = 89 mm
Price
Model
PHP 44 - 14M - 115TB
Model description
No. Teeth = 44 , Bush No. = 3535
DIMENSIONS : Diameter (P.D.) = 196.08 mm , Pulley Type = 6F , Bore min = 35 mm , Bore max = 100 mm ,F = 133 mm , L = 89 mm
Price
Model
PHP 45 - 14M - 115TB
Model description
No. Teeth = 45 , Bush No. = 3535
DIMENSIONS : Diameter (P.D.) = 200.54 mm , Pulley Type = 6F , Bore min = 35 mm , Bore max = 100 mm ,F = 133 mm , L = 89 mm
Price
Model
PHP 48 - 14M - 115TB
Model description
No. Teeth = 48 , Bush No. = 3535
DIMENSIONS : Diameter (P.D.) = 213.90 mm , Pulley Type = 6F , Bore min = 35 mm , Bore max = 100 mm ,F = 133 mm , L = 89 mm
Price
Model
PHP 50 - 14M - 115TB
Model description
No. Teeth = 50 , Bush No. = 4040
DIMENSIONS : Diameter (P.D.) =222.82 mm , Pulley Type = 6F , Bore min = 40 mm , Bore max = 100 mm ,F = 133 mm , L = 102 mm
Price
Model
PHP 56 - 14M - 115TB
Model description
No. Teeth = 56 , Bush No. = 4040
DIMENSIONS : Diameter (P.D.) = 249.55 mm , Pulley Type = 6F , Bore min = 40 mm , Bore max = 100 mm ,F = 133 mm , L = 102 mm
Price
Model
PHP 60 - 14M - 115TB
Model description
No. Teeth = 60 , Bush No. = 4040
DIMENSIONS : Diameter (P.D.) = 267.38 mm , Pulley Type = 6F , Bore min = 40 mm , Bore max = 100 mm ,F = 133 mm , L = 102 mm
Price
Model
PHP 64 - 14M - 115TB
Model description
No. Teeth = 64 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 285.21 mm , Pulley Type = 7F , Bore min = 55 mm , Bore max = 100 mm ,F = 133 mm , L = 115 mm
Price
Model
PHP 72 - 14M - 115TB
Model description
No. Teeth = 72 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 320.86 mm , Pulley Type = 7 , Bore min = 55 mm , Bore max = 100 mm ,F = 133 mm , L = 115 mm
Price
Model
PHP 80 - 14M - 115TB
Model description
No. Teeth = 80 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 356.51 mm , Pulley Type = 8 , Bore min = 55 mm , Bore max = 100 mm ,F = 133 mm , L = 115 mm , H = 242 mm
Price
Model
PHP 90 - 14M - 115TB
Model description
No. Teeth = 90 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 401.07 mm , Pulley Type = 8 , Bore min = 55 mm , Bore max = 100 mm ,F = 133 mm , L = 115 mm , H = 242 mm
Price
Model
PHP 112 - 14M - 115TB
Model description
No. Teeth = 112 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 499.11 mm , Pulley Type = 8 , Bore min = 55 mm , Bore max = 100 mm ,F = 133 mm , L = 115 mm , H = 242 mm
Price
Model
PHP 144 - 14M - 115TB
Model description
No. Teeth = 144 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 641.71 mm , Pulley Type = 8 , Bore min = 55 mm , Bore max = 115 mm ,F = 133 mm , L = 115 mm , H = 242 mm
Price
Model
PHP 168 - 14M - 115TB
Model description
No. Teeth = 168 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 748.66 mm , Pulley Type = 8 , Bore min = 55 mm , Bore max = 115 mm ,F = 133 mm , L = 115 mm , H = 242 mm
Price
Model
PHP 192 - 14M - 115TB
Model description
No. Teeth = 192 , Bush No. = 4545
DIMENSIONS : Diameter (P.D.) = 855.62 mm , Pulley Type = 8 , Bore min = 55 mm , Bore max = 115 mm ,F = 133 mm , L = 115 mm , H = 242 mm
Price
Model
PHP 216 - 14M - 115TB
Model description
No. Teeth = 216 , Bush No. = 6050
DIMENSIONS : Diameter (P.D.) = 962.57 mm , Pulley Type = 8 , Bore min = 70 mm , Bore max = 125 mm ,F = 133 mm , L = 127 mm , H = 394 mm
Price
