PRODUCT
![]()
ชื่อรุ่น :

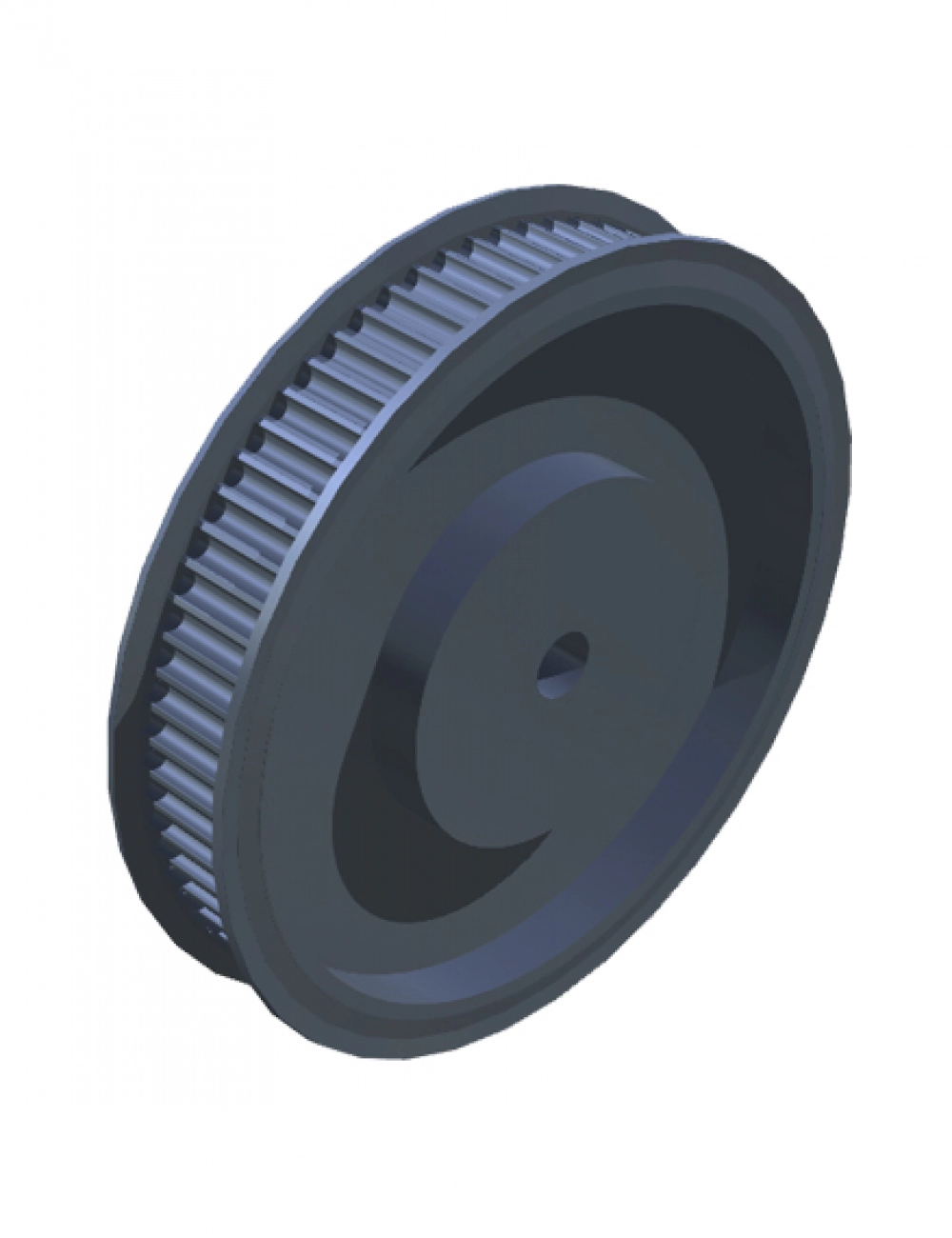

PHP XX - 8M - 20RSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 8 mm
- สายพานหน้ากว้าง 20 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 20 - 8M - 20RSB
Model description
No. Teeth = 20

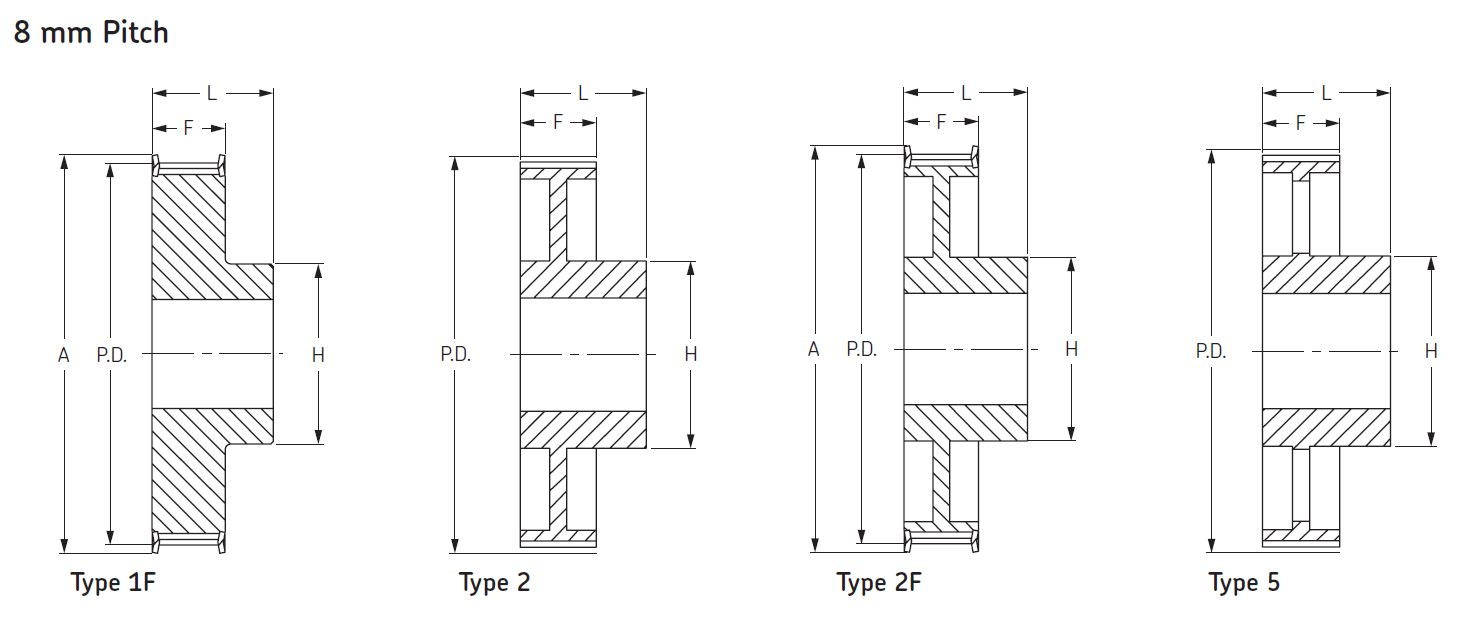

DIMENSIONS : Diameter (P.D.) = 50.93 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 25 mm ,F = 28 mm , L = 38 mm , H = 38 mm
Price
Model
PHP 21 - 8M - 20RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 53.47 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 27 mm ,F = 28 mm , L = 38 mm , H = 40 mm
Price
Model
PHP 22 - 8M - 20RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 56.02 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 29 mm ,F = 28 mm , L = 38 mm , H = 45 mm
Price
Model
PHP 23 - 8M - 20RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 58.57 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 29 mm ,F = 28 mm , L = 38 mm , H = 45 mm
Price
Model
PHP 24 - 8M - 20RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 61.12 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 28 mm , L = 38 mm , H = 45 mm
Price
Model
PHP 25 - 8M - 20RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 63.66 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 31 mm ,F = 28 mm , L = 38 mm , H = 45 mm
Price
Model
PHP 26 - 8M - 20RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 66.21 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 32 mm ,F = 28 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 27 - 8M - 20RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 68.75 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 28 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 28 - 8M - 20RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 71.30 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 34 mm ,F = 28 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 29 - 8M - 20RSB
Model description
No. Teeth = 29
DIMENSIONS : Diameter (P.D.) = 73.85 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 35 mm ,F = 28 mm , L = 38 mm , H = 55 mm
Price
Model
PHP 30 - 8M - 20RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 36 mm ,F = 28 mm , L = 38 mm , H = 55 mm
Price
Model
PHP 31 - 8M - 20RSB
Model description
No. Teeth = 31
DIMENSIONS : Diameter (P.D.) = 78.94 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 38 mm ,F = 28 mm , L = 38 mm , H = 55 mm
Price
Model
PHP 32 - 8M - 20RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 81.49 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 40 mm ,F = 28 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 33 - 8M - 20RSB
Model description
No. Teeth = 33
DIMENSIONS : Diameter (P.D.) = 84.03 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 42 mm ,F = 28 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 34 - 8M - 20RSB
Model description
No. Teeth = 34
DIMENSIONS : Diameter (P.D.) = 86.58 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 44 mm ,F = 28 mm , L = 38 mm , H = 70 mm
Price
Model
PHP 35 - 8M - 20RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 89.13 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 45 mm ,F = 28 mm , L = 38 mm , H = 70 mm
Price
Model
PHP 36 - 8M - 20RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 91.67 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 46 mm ,F = 28 mm , L = 38 mm , H = 70 mm
Price
Model
PHP 38 - 8M - 20RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 96.77 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 50 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 40 - 8M - 20RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 101.86 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 50 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 42 - 8M - 20RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 106.95 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 50 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 44 - 8M - 20RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 112.05 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 50 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 45 - 8M - 20RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 50 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 48 - 8M - 20RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 122.23 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 50 - 8M - 20RSB
Model description
No. Teeth = 50
DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 52 - 8M - 20RSB
Model description
No. Teeth = 52
DIMENSIONS : Diameter (P.D.) = 132.42 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 80 mm
Price
Model
PHP 56 - 8M - 20RSB
Model description
No. Teeth = 56
DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 2F , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L =38 mm , H = 80 mm
Price
Model
PHP 64 - 8M - 20RSB
Model description
No. Teeth = 64
DIMENSIONS : Diameter (P.D.) = 162.97 mm , Pulley Type = 2F , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 80 mm
Price
Model
PHP 72 - 8M - 20RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 183.35 mm , Pulley Type = 2F , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 80 mm
Price
Model
PHP 80 - 8M - 20RSB
Model description
No. Teeth = 80
DIMENSIONS : Diameter (P.D.) = 203.72 mm , Pulley Type = 2 , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 90 mm
Price
Model
PHP 90 - 8M - 20RSB
Model description
No. Teeth = 90
DIMENSIONS : Diameter (P.D.) = 229.18 mm , Pulley Type = 2 , Bore min = 15 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 90 mm
Price
Model
PHP 112 - 8M - 20RSB
Model description
No. Teeth = 112
DIMENSIONS : Diameter (P.D.) = 285.83 mm , Pulley Type = 5 , Bore min = 18 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 90 mm
Price
Model
PHP 144 - 8M - 20RSB
Model description
No. Teeth = 144
DIMENSIONS : Diameter (P.D.) = 366.69 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 28 mm , L = 38 mm , H = 90 mm
Price
Model
PHP 168 - 8M - 20RSB
Model description
No. Teeth = 168
DIMENSIONS : Diameter (P.D.) = 427.81 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 60 mm ,F = 28 mm , L = 38 mm , H = 100 mm
Price
Model
PHP 192 - 8M - 20RSB
Model description
No. Teeth = 192
DIMENSIONS : Diameter (P.D.) = 488.92 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 60 mm ,F = 28 mm , L = 38 mm , H = 100 mm
Price
