PRODUCT
![]()
ชื่อรุ่น :

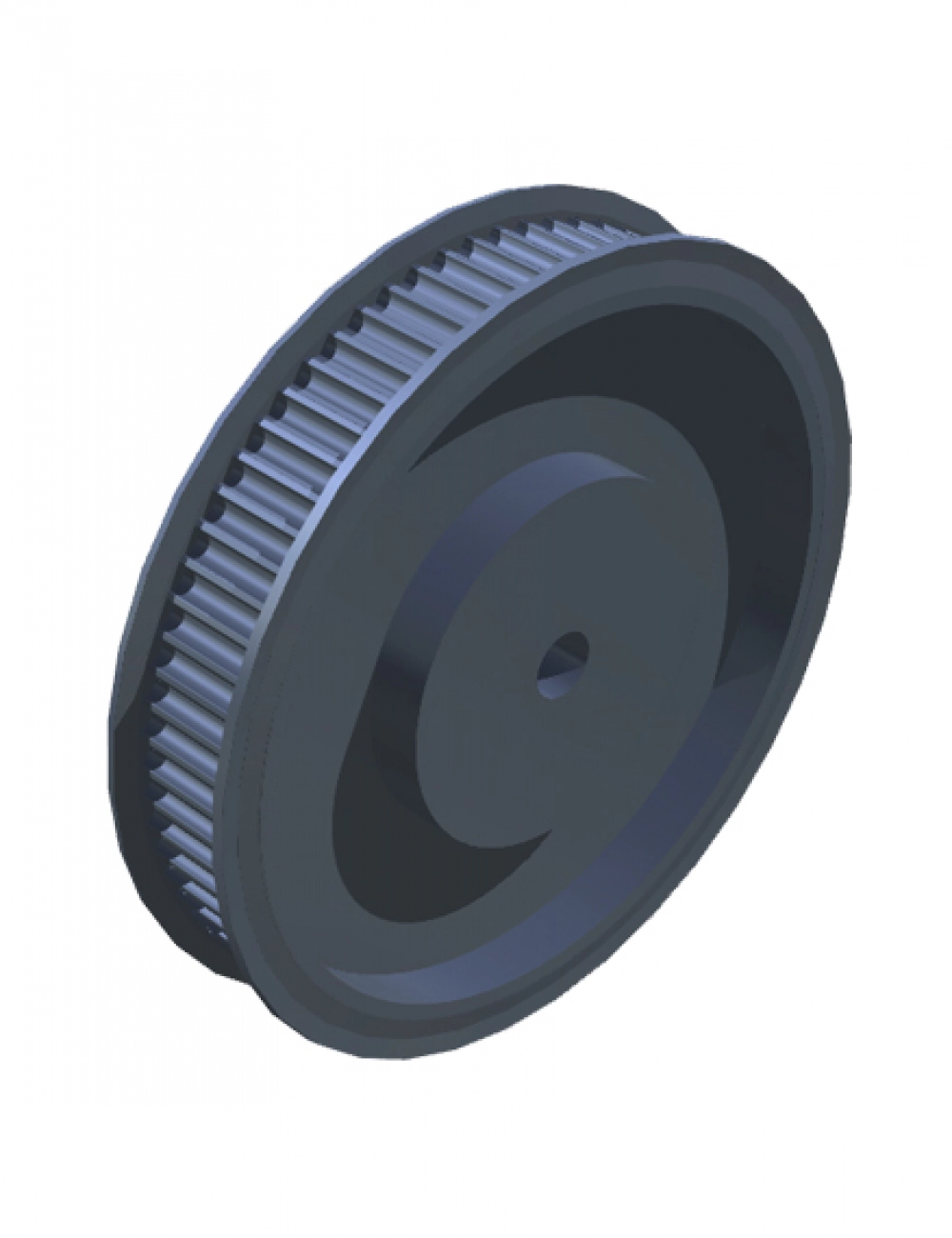

PHP XX - 5M - 25RSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 5 mm
- สายพานหน้ากว้าง 25 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 12 - 5M - 25RSB
Model description
No. Teeth = 12

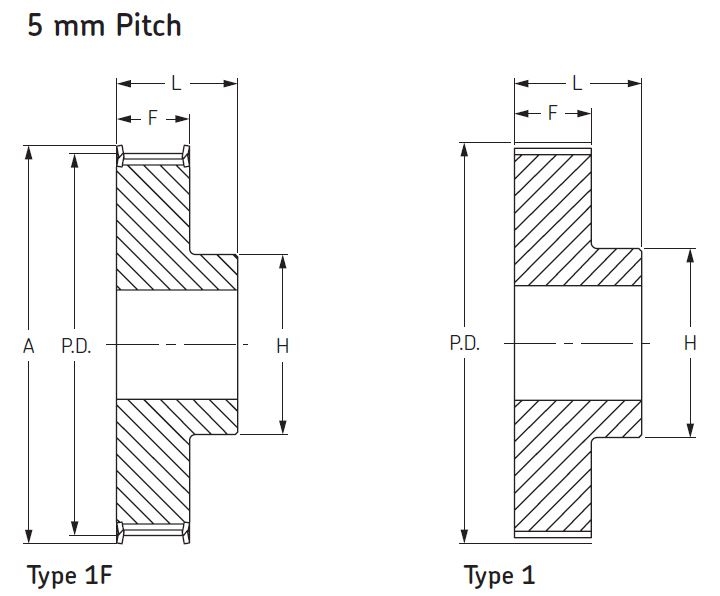

DIMENSIONS : Diameter (P.D.) = 19.10 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 8 mm ,F = 30.5 mm , L = 36 mm , H = 13.0 mm
Price
Model
PHP 14 - 5M - 25RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 22.28 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9 mm ,F = 30.5 mm , L = 36 mm , H = 13.0 mm
Price
Model
PHP 15 - 5M - 25RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 23.87 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 11 mm ,F = 30.5 mm , L = 36 mm , H = 16.0 mm
Price
Model
PHP 16 - 5M - 25RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 25.46 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 11 mm ,F = 30.5 mm , L = 36 mm , H = 16.0 mm
Price
Model
PHP 18 - 5M - 25RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 28.65 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 13 mm ,F = 30.5 mm , L = 36 mm , H = 19.0 mm
Price
Model
PHP 20 - 5M - 25RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 31.83 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 14 mm ,F = 30.5 mm , L = 36 mm , H = 23.0 mm
Price
Model
PHP 21 - 5M - 25RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 33.42 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 30.5 mm , L = 38 mm , H = 24.0 mm
Price
Model
PHP 22 - 5M - 25RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 35.01 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 16 mm ,F = 30.5 mm , L = 38 mm , H = 25.5 mm
Price
Model
PHP 24 - 5M - 25RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 38.20 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 18 mm ,F = 30.5 mm , L = 38 mm , H = 27.0 mm
Price
Model
PHP 26 - 5M - 25RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 41.38 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 20 mm ,F = 30.5 mm , L = 38 mm , H = 30.0 mm
Price
Model
PHP 28 - 5M - 25RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 44.56 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 20 mm ,F = 30.5 mm , L = 38 mm , H = 30.5 mm
Price
Model
PHP 30 - 5M - 25RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 44.75 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 24 mm ,F = 30.5 mm , L = 38 mm , H = 35.0 mm
Price
Model
PHP 32 - 5M - 25RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 50.93 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 30.5 mm , L = 38 mm , H = 38.0 mm
Price
Model
PHP 36 - 5M - 25RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 57.30 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 30.5 mm , L = 38 mm , H = 38.0 mm
Price
Model
PHP 40 - 5M - 25RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 63.66 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 30.5 mm , L = 38 mm , H = 38.0 mm
Price
Model
PHP 44 - 5M - 25RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 70.03 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 26 mm ,F = 30.5 mm , L =40 mm , H = 38.0 mm
Price
Model
PHP 48 - 5M - 25RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 76.39 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 26 mm ,F = 30.5 mm , L = 40 mm , H = 38.0 mm
Price
Model
PHP 60 - 5M - 25RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 94.35 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 34 mm ,F = 30.5 mm , L = 40 mm , H = 50.0 mm
Price
Model
PHP 72 - 5M - 25RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 114.59 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 34 mm ,F = 30.5 mm , L = 40 mm , H = 50.0 mm
Price
Model
PHP 80 - 5M - 25RSB
Model description
No. Teeth = 80
DIMENSIONS : Diameter (P.D.) = 127.32 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 34 mm ,F =30.5 mm , L = 40 mm , H = 50.0 mm
Price
