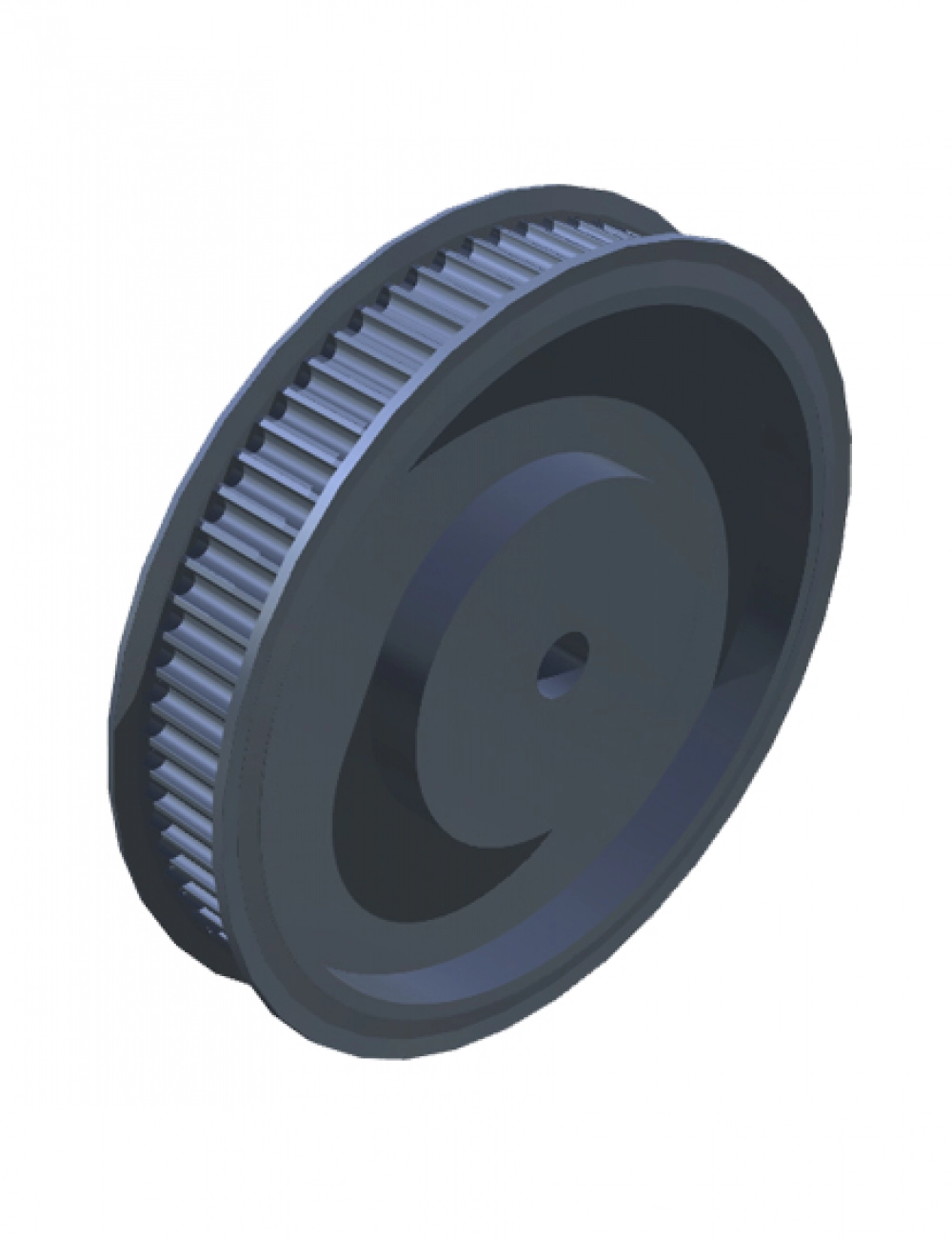

ชื่อรุ่น :

XH 400

แบรนด์

SKF

รายละเอียด :

  • ระยะห่างระหว่างฟัน ( Pitch ) = 22.225 mm (7/8")
  • สายพานหน้ากว้าง 101.6 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 18XH400RSB
Model description

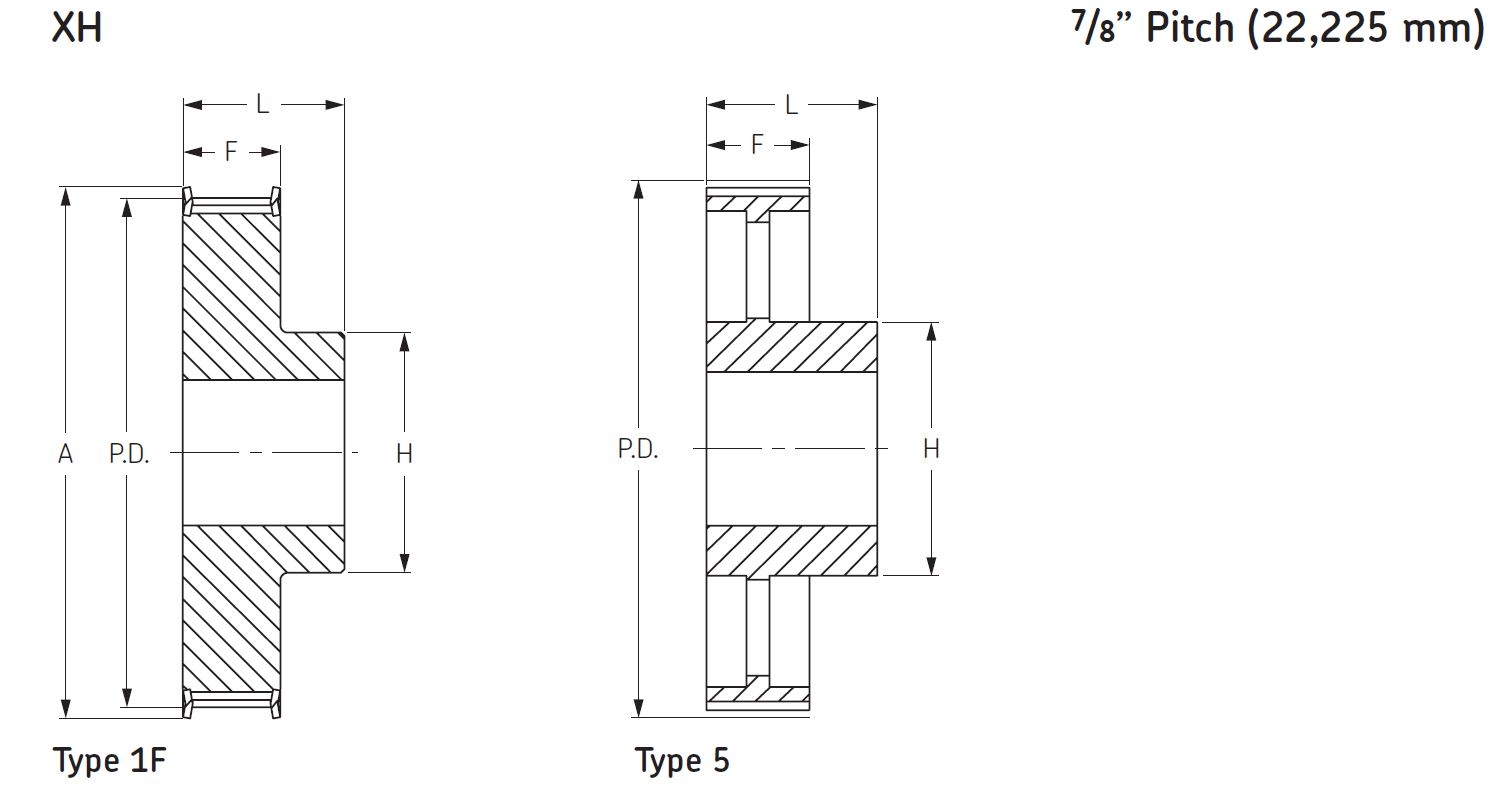

No. Teeth = 18 DIMENSIONS : Diameter (P.D.) = 127.34 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 119 mm , L = 132 mm , H = 100 mm
Price
Model
PHP 19XH400RSB
Model description
No. Teeth = 19 DIMENSIONS : Diameter (P.D.) = 134.41 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 119 mm , L = 132 mm , H = 100 mm
Price
Model
PHP 20XH400RSB
Model description
No. Teeth = 20 DIMENSIONS : Diameter (P.D.) = 141.49 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 119 mm , L = 132 mm , H = 100 mm
Price
Model
PHP 21XH400RSB
Model description
No. Teeth = 21 DIMENSIONS : Diameter (P.D.) = 148.56 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 73 mm ,F = 119 mm , L = 132 mm , H = 110 mm
Price
Model
PHP 22XH400RSB
Model description
No. Teeth = 22 DIMENSIONS : Diameter (P.D.) = 155.64 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 73 mm ,F = 119 mm , L = 132 mm , H = 110 mm
Price
Model
PHP 24XH400RSB
Model description
No. Teeth = 24 DIMENSIONS : Diameter (P.D.) = 169.79 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 80 mm ,F = 119 mm , L = 132 mm , H = 120 mm
Price
Model
PHP 25XH400RSB
Model description
No. Teeth = 25 DIMENSIONS : Diameter (P.D.) = 176.86 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 80 mm ,F = 119 mm , L = 132 mm , H = 120 mm
Price
Model
PHP 26XH400RSB
Model description
No. Teeth = 26 DIMENSIONS : Diameter (P.D.) = 183.93 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 80 mm ,F = 119 mm , L = 132 mm , H = 120 mm
Price
Model
PHP 27XH400RSB
Model description
No. Teeth = 27 DIMENSIONS : Diameter (P.D.) = 191.01 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 80 mm ,F = 119 mm , L = 132 mm , H = 120 mm
Price
Model
PHP 28XH400RSB
Model description
No. Teeth = 28 DIMENSIONS : Diameter (P.D.) = 198.09 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 119 mm , L = 132 mm , H = 150 mm
Price
Model
PHP 30XH400RSB
Model description
No. Teeth = 30 DIMENSIONS : Diameter (P.D.) = 212.23 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 119 mm , L = 132 mm , H = 150 mm
Price
Model
PHP 32XH400RSB
Model description
No. Teeth = 32 DIMENSIONS : Diameter (P.D.) = 226.38 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 119 mm , L = 132 mm , H = 150 mm
Price
Model
PHP 34XH400RSB
Model description
No. Teeth = 34 DIMENSIONS : Diameter (P.D.) = 240.53 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 119 mm , L = 132 mm , H = 150 mm
Price
Model
PHP 38XH400RSB
Model description
No. Teeth = 38 DIMENSIONS : Diameter (P.D.) = 268.83 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 100 mm ,F = 119 mm , L = 132 mm , H = 150 mm
Price
Model
PHP 40XH400RSB
Model description
No. Teeth = 40 DIMENSIONS : Diameter (P.D.) = 282.98 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 100 mm ,F = 119 mm , L = 132 mm , H = 150 mm
Price
Model
PHP 48XH400RSB
Model description
No. Teeth = 48 DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 110 mm ,F = 119 mm , L = 132 mm , H = 175 mm
Price
Model
PHP 60XH400RSB
Model description
No. Teeth = 60 DIMENSIONS : Diameter (P.D.) = 424.47 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 110 mm ,F = 119 mm , L = 132 mm , H = 175 mm
Price
