PRODUCT
![]()
ชื่อรุ่น :

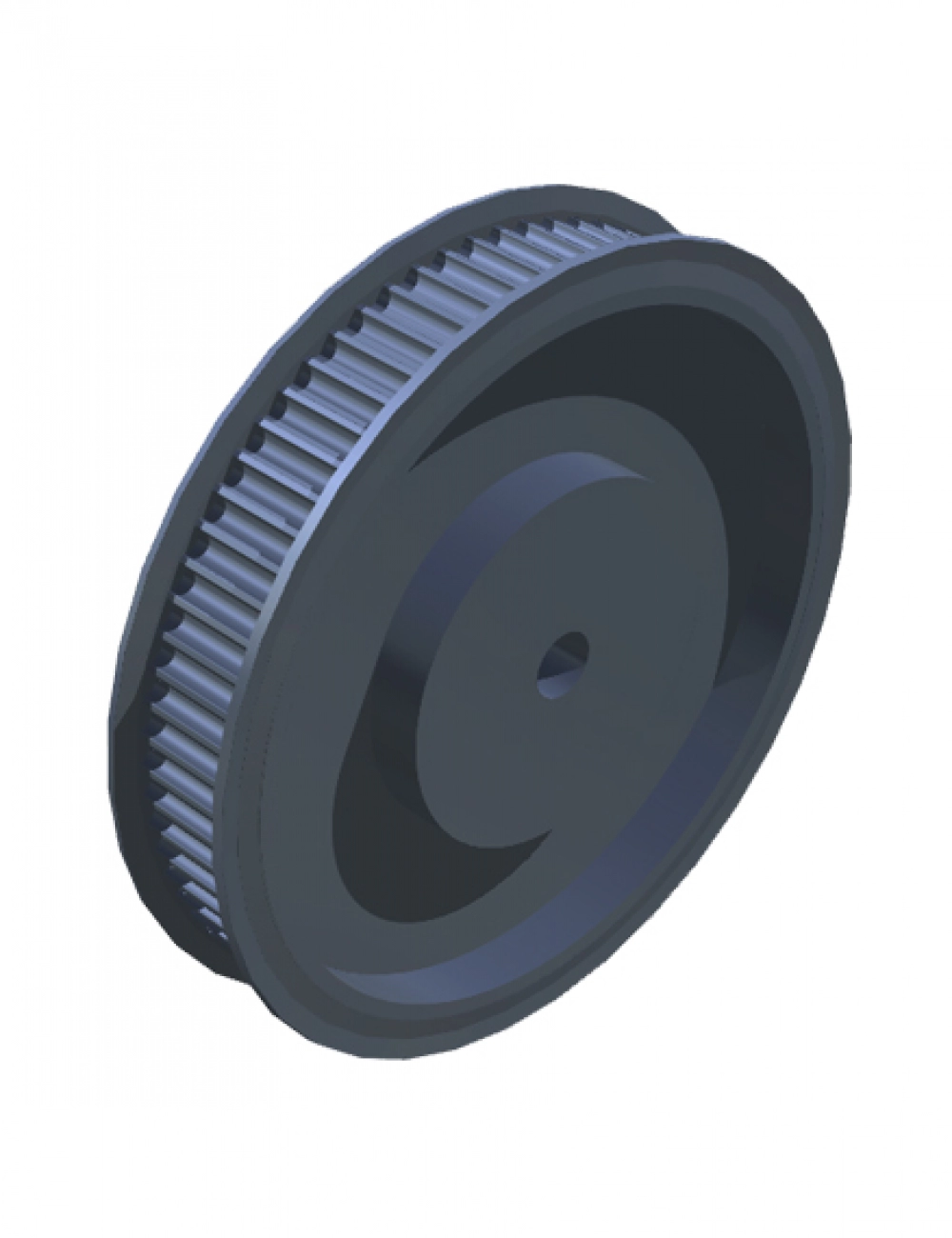

XH 300
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 22.225 mm (7/8")
- สายพานหน้ากว้าง 76.2 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 18XH300RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 127.34 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 67 mm ,F = 92.1 mm , L = 110 mm , H = 100 mm
Price
Model
PHP 19XH300RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 134.41 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 67 mm ,F = 92.1 mm , L = 110 mm , H = 100 mm
Price
Model
PHP 20XH300RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 141.49 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 67 mm ,F = 92.1 mm , L = 110 mm , H = 100 mm
Price
Model
PHP 21XH300RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 148.56 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 73 mm ,F = 92.1 mm , L = 110 mm , H = 110 mm
Price
Model
PHP 22XH300RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 155.64 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 73 mm ,F = 92.1 mm , L = 110 mm , H = 110 mm
Price
Model
PHP 24XH300RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 169.79 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 120 mm
Price
Model
PHP 25XH300RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 176.86 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 120 mm
Price
Model
PHP 26XH300RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 183.93 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 120 mm
Price
Model
PHP 27XH300RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 191.01 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 120 mm
Price
Model
PHP 28XH300RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 198.09 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 150 mm
Price
Model
PHP 30XH300RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 212.23 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 150 mm
Price
Model
PHP 32XH300RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 226.38 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 150 mm
Price
Model
PHP 34XH300RSB
Model description
No. Teeth = 34
DIMENSIONS : Diameter (P.D.) = 240.53 mm , Pulley Type = 1F , Bore min = 28 mm , Bore max = 80 mm ,F = 92.1 mm , L = 110 mm , H = 150 mm
Price
Model
PHP 38XH300RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 268.83 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 100 mm ,F = 92.1 mm , L = 120 mm , H = mm
Price
Model
PHP 40XH300RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 282.98 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 100 mm ,F = 92.1 mm , L = 120 mm , H = mm
Price
Model
PHP 48XH300RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 100 mm ,F = 92.1 mm , L = 120 mm , H = mm
Price
Model
PHP 60XH300RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 424.47 mm , Pulley Type = 5 , Bore min = 32 mm , Bore max = 100 mm ,F = 92.1 mm , L = 120 mm , H = mm
Price
