ชื่อรุ่น :
H 100
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 12.7 mm (1/2")
- สายพานหน้ากว้าง 19.1 mm และ 25.4 mm
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 14H100RSB
Model description
No. Teeth = 14

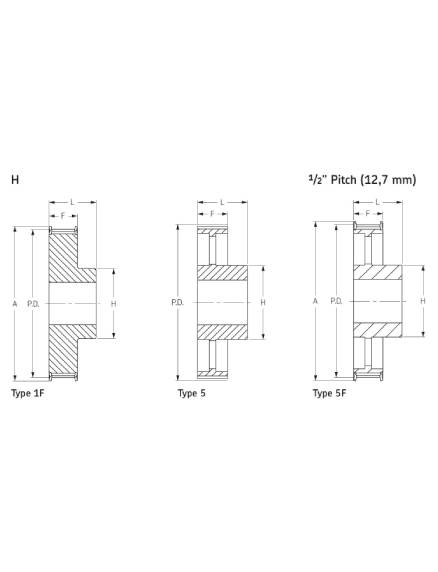

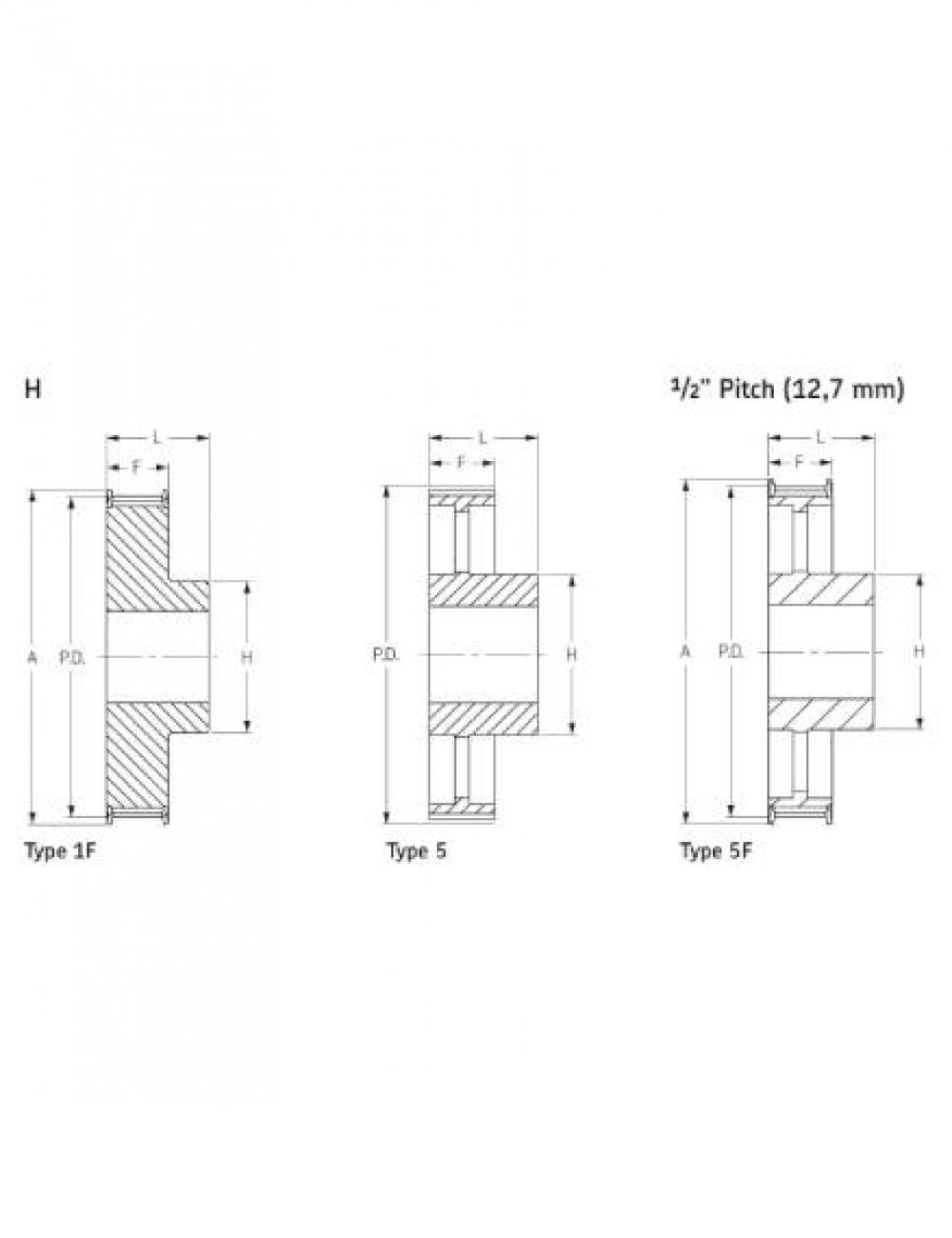

DIMENSIONS : Diameter (P.D.) = 56.60 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 27 mm ,F = 33.3 mm , L = 45 mm , H = 40 mm
Price
Model
PHP 15H100RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 60.64 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 30 mm ,F = 33.3 mm , L = 45 mm , H = 46 mm
Price
Model
PHP 16H100RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 64.67 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 30 mm ,F = 33.3 mm , L = 45 mm , H = 46 mm
Price
Model
PHP 17H100RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 68.72 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 30 mm ,F = 33.3 mm , L = 45 mm , H = 46 mm
Price
Model
PHP 18H100RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 72.77 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 33.3 mm , L = 45 mm , H = 55 mm
Price
Model
PHP 19H100RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 76.81 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 36 mm ,F = 33.3 mm , L = 45 mm , H = 60 mm
Price
Model
PHP 20H100RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 80.85 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 41 mm ,F = 33.3 mm , L = 45 mm , H = 62 mm
Price
Model
PHP 21H100RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 84.89 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 43 mm ,F = 33.3 mm , L = 45 mm , H = 67 mm
Price
Model
PHP 22H100RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 88.94 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 45 mm ,F = 33.3 mm , L = 45 mm , H = 70 mm
Price
Model
PHP 23H100RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 92.98 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 46 mm ,F = 33.3 mm , L = 45 mm , H =72 mm
Price
Model
PHP 24H100RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 97.03 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 47 mm ,F = 33.3 mm , L = 45 mm , H = 75 mm
Price
Model
PHP 25H100RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 101.06 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 47 mm ,F = 33.3 mm , L = 45 mm , H = 75 mm
Price
Model
PHP 26H100RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 105.11 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 27H100RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 109.15 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 28H100RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 113.18 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 29H100RSB
Model description
No. Teeth = 29
DIMENSIONS : Diameter (P.D.) = 117.23 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 30H100RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 121.29 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 31H100RSB
Model description
No. Teeth = 31
DIMENSIONS : Diameter (P.D.) = 125.32 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 32H100RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 129.36 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 33H100RSB
Model description
No. Teeth = 33
DIMENSIONS : Diameter (P.D.) = 133.40 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 34H100RSB
Model description
No. Teeth = 34
DIMENSIONS : Diameter (P.D.) = 137.45 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 35H100RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 141.49 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 36H100RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 145.53 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 38H100RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 153.62 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 40H100RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 161.70 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 42H100RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 169.79 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 45 mm , H = 80 mm
Price
Model
PHP 44H100RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 177.87 mm , Pulley Type = 5F , Bore min = 20 mm , Bore max = 48 mm ,F = 33.3 mm , L = 50 mm , H = 80 mm
Price
Model
PHP 45H100RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 181.91 mm , Pulley Type = 5F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 50 mm , H = 80 mm
Price
Model
PHP 48H100RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 194.03 mm , Pulley Type = 5F , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 50 mm , H = 90 mm
Price
Model
PHP 50H100RSB
Model description
No. Teeth = 50
DIMENSIONS : Diameter (P.D.) = 202.13 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 50 mm , H = 90 mm
Price
Model
PHP 52H100RSB
Model description
No. Teeth = 52
DIMENSIONS : Diameter (P.D.) = 210.21 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 50 mm , H = 90 mm
Price
Model
PHP 57H100RSB
Model description
No. Teeth = 57
DIMENSIONS : Diameter (P.D.) = 230.42 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 50 mm , H = 90 mm
Price
Model
PHP 58H100RSB
Model description
No. Teeth = 58
DIMENSIONS : Diameter (P.D.) = 234.47 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 33.3 mm , L = 50 mm , H = 90 mm
Price
Model
PHP 60H100RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 242.55 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 33.3 mm , L = 50 mm , H = 120 mm
Price
Model
PHP 70H100RSB
Model description
No. Teeth = 70
DIMENSIONS : Diameter (P.D.) = 282.98 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 33.3 mm , L = 55 mm , H = 120 mm
Price
Model
PHP 72H100RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 291.06 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 33.3 mm , L = 55 mm , H = 120 mm
Price
Model
PHP 76H100RSB
Model description
No. Teeth = 76
DIMENSIONS : Diameter (P.D.) = 307.23 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 33.3 mm , L = 55 mm , H = 120 mm
Price
Model
PHP 84H100RSB
Model description
No. Teeth = 84
DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 33.3 mm , L = 55 mm , H = 120 mm
Price
Model
PHP 96H100RSB
Model description
No. Teeth = 96
DIMENSIONS : Diameter (P.D.) = 388.08 mm , Pulley Type = 5 , Bore min = 24 mm , Bore max = 70 mm ,F = 33.3 mm , L = 60 mm , H = 120 mm
Price
Model
PHP 120H100RSB
Model description
No. Teeth = 120
DIMENSIONS : Diameter (P.D.) = 485.10 mm , Pulley Type = 5 , Bore min = 24 mm , Bore max = 70 mm ,F = 33.3 mm , L = 60 mm , H = 120 mm
Price
Model
PHP 156H100RSB
Model description
No. Teeth = 156
DIMENSIONS : Diameter (P.D.) = 630.63 mm , Pulley Type = 5 , Bore min = 24 mm , Bore max = 70 mm ,F = 33.3 mm , L = 60 mm , H = 130 mm
Price
