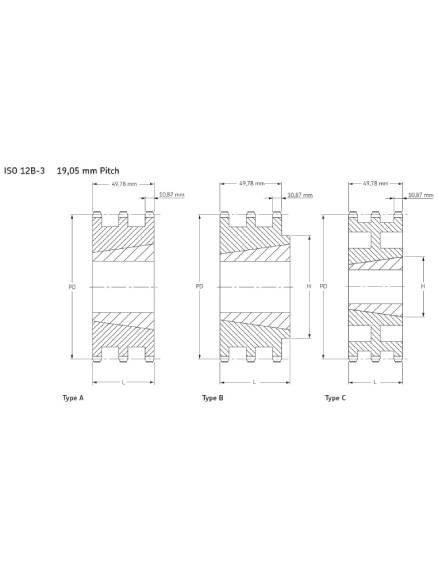

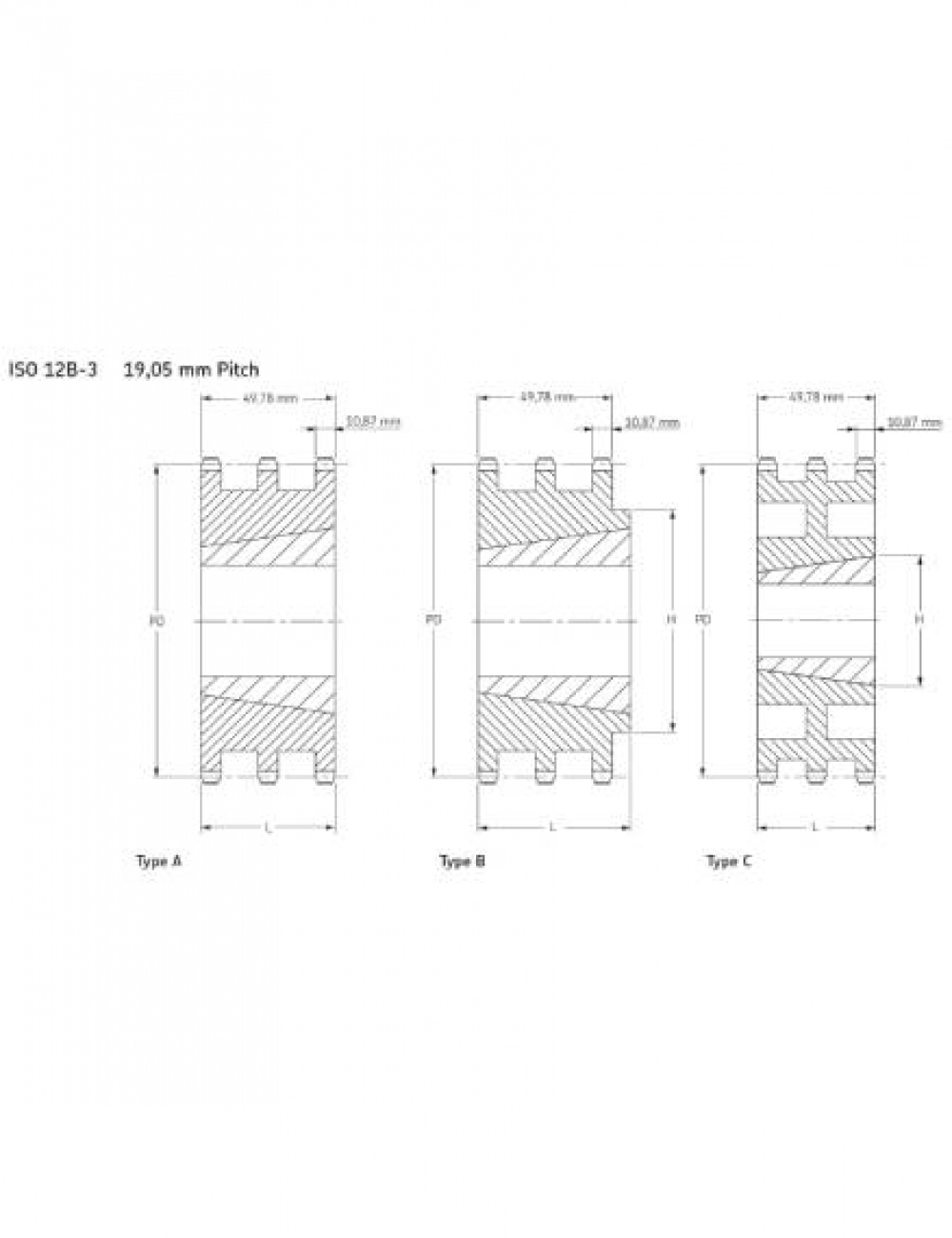

ISO PHS 12B-3TBXX

No.Teeth = 17 , Bushing Size :2012
DIMENSIONS :Pitch diameter = 103.67 mm , Type = A , Bore min. = 14 mm , Bore max. = 50 mm ,L = mm , H = mm

No.Teeth = 19 , Bushing Size :2517
DIMENSIONS :Pitch diameter = 115.75 mm , Type = A , Bore min. = 16 mm , Bore max. = 65 mm ,L = mm , H = mm

No.Teeth = 21 , Bushing Size :2517
DIMENSIONS :Pitch diameter = 127.82 mm , Type = A , Bore min. = 16 mm , Bore max. = 65 mm ,L = mm , H = mm

No.Teeth = 23 , Bushing Size :2517
DIMENSIONS :Pitch diameter = 139.90 mm , Type = A , Bore min. = 16 mm , Bore max. = 65 mm ,L = mm , H = mm

No.Teeth = 25 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 152.00 mm , Type = A , Bore min. = 25 mm , Bore max. = 75 mm ,L = mm , H = mm

No.Teeth = 27 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 164.09 mm , Type = B , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 51 mm

No.Teeth = 30 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 182.25 mm , Type = B , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 51 mm

No.Teeth = 38 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 230.69 mm , Type = B , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 51 mm

No.Teeth = 45 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 273.10 mm , Type = C , Bore min. = 25 mm , Bore max. =75 mm ,L = 140 mm , H = 51 mm

No.Teeth = 57 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 345.81 mm , Type = C , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 51 mm

No.Teeth = 76 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 460.99 mm , Type = C , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 51 mm

No.Teeth = 95 , Bushing Size :3030
DIMENSIONS :Pitch diameter = 576.17 mm , Type = C , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 76 mm

No.Teeth = 114 , Bushing Size :3030
DIMENSIONS :Pitch diameter = 691.36 mm , Type = C , Bore min. = 25 mm , Bore max. = 75 mm ,L = 140 mm , H = 76 mm
