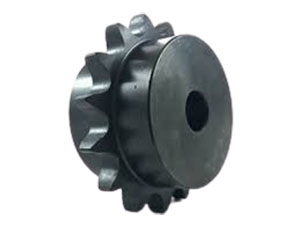

ISO PHS 20B - 1CXXX

No.Teeth = 54

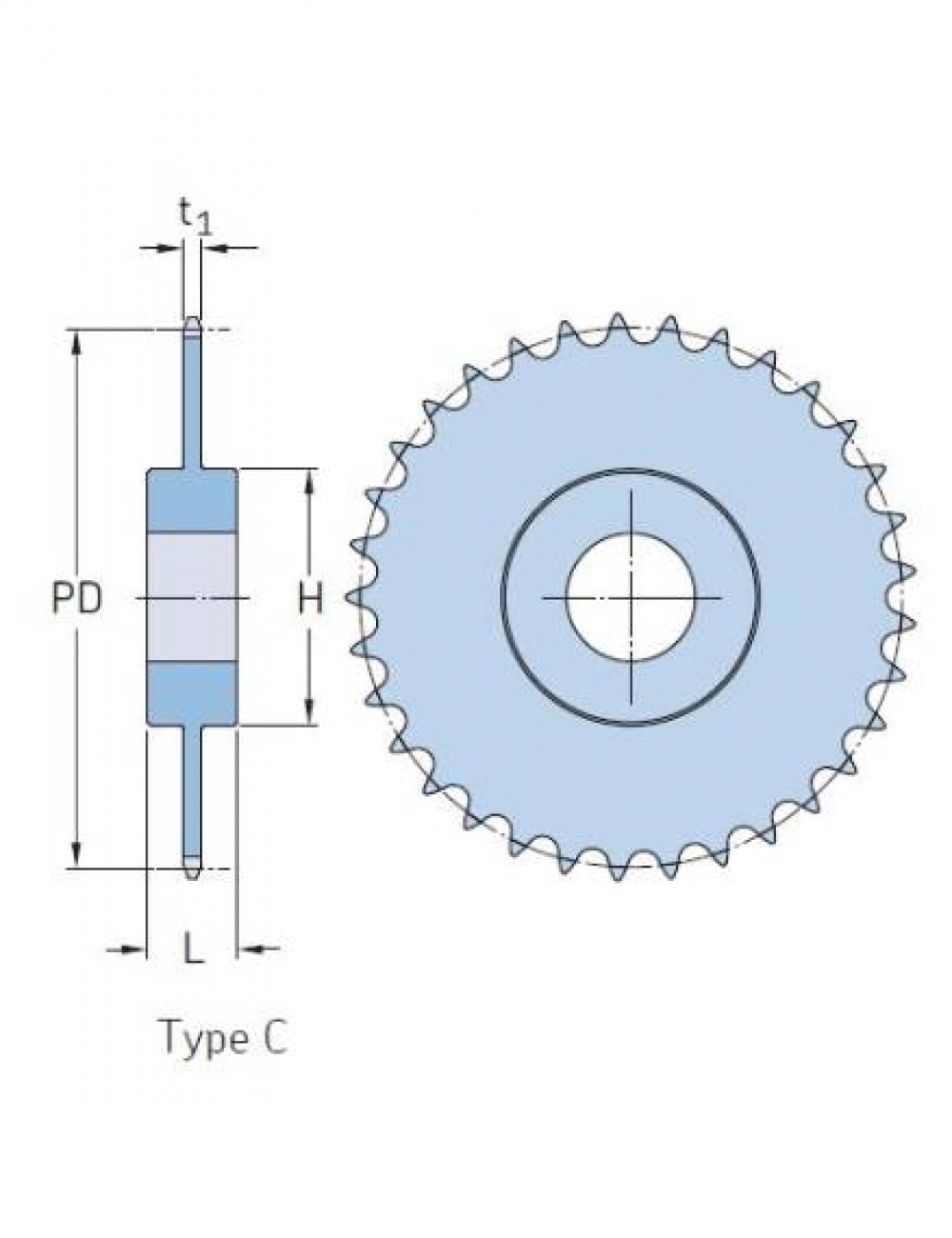

DIMENSIONS : Pitch diameter = 546.05 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L = 80 mm

No.Teeth = 55
DIMENSIONS : Pitch diameter = 556.15 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L = 80 mm

No.Teeth = 56
DIMENSIONS : Pitch diameter = 566.25 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L = 80 mm

No.Teeth = 57
DIMENSIONS : Pitch diameter = 576.35 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L =80 mm

No.Teeth = 58
DIMENSIONS : Pitch diameter = 586.45 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L = 80 mm

No.Teeth = 59
DIMENSIONS : Pitch diameter = 596.56 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L = 80 mm

No.Teeth = 60
DIMENSIONS : Pitch diameter = 606.66 mm , Bore min. = 25 mm , Bore max. = 102 mm , H = 150 mm , L = 80 mm

No.Teeth = 70
DIMENSIONS : Pitch diameter = 707.68 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 80 mm

No.Teeth = 72
DIMENSIONS : Pitch diameter = 727.89 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 80 mm

No.Teeth = 76
DIMENSIONS : Pitch diameter = 768.30 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 80 mm

No.Teeth = 80
DIMENSIONS : Pitch diameter = 808.71 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 80 mm

No.Teeth = 84
DIMENSIONS : Pitch diameter = 849.13 mm , Bore min. =25 mm , Bore max. = 133 mm , H = 150 mm , L = 90 mm

No.Teeth =90
DIMENSIONS : Pitch diameter = 909.76 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 90 mm

No.Teeth = 95
DIMENSIONS : Pitch diameter = 960.28 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 90 mm

No.Teeth =96
DIMENSIONS : Pitch diameter = 970.38 mm , Bore min. = 25mm , Bore max. = 133 mm , H = 150 mm , L = 90 mm

No.Teeth = 114
DIMENSIONS : Pitch diameter =1152.27 mm , Bore min. = 25 mm , Bore max. = 133 mm , H = 150 mm , L = 90 mm
