PRODUCT
![]()
ชื่อรุ่น :
ISO PHS 20B - 1AXXX
แบรนด์
SKF
รายละเอียด :

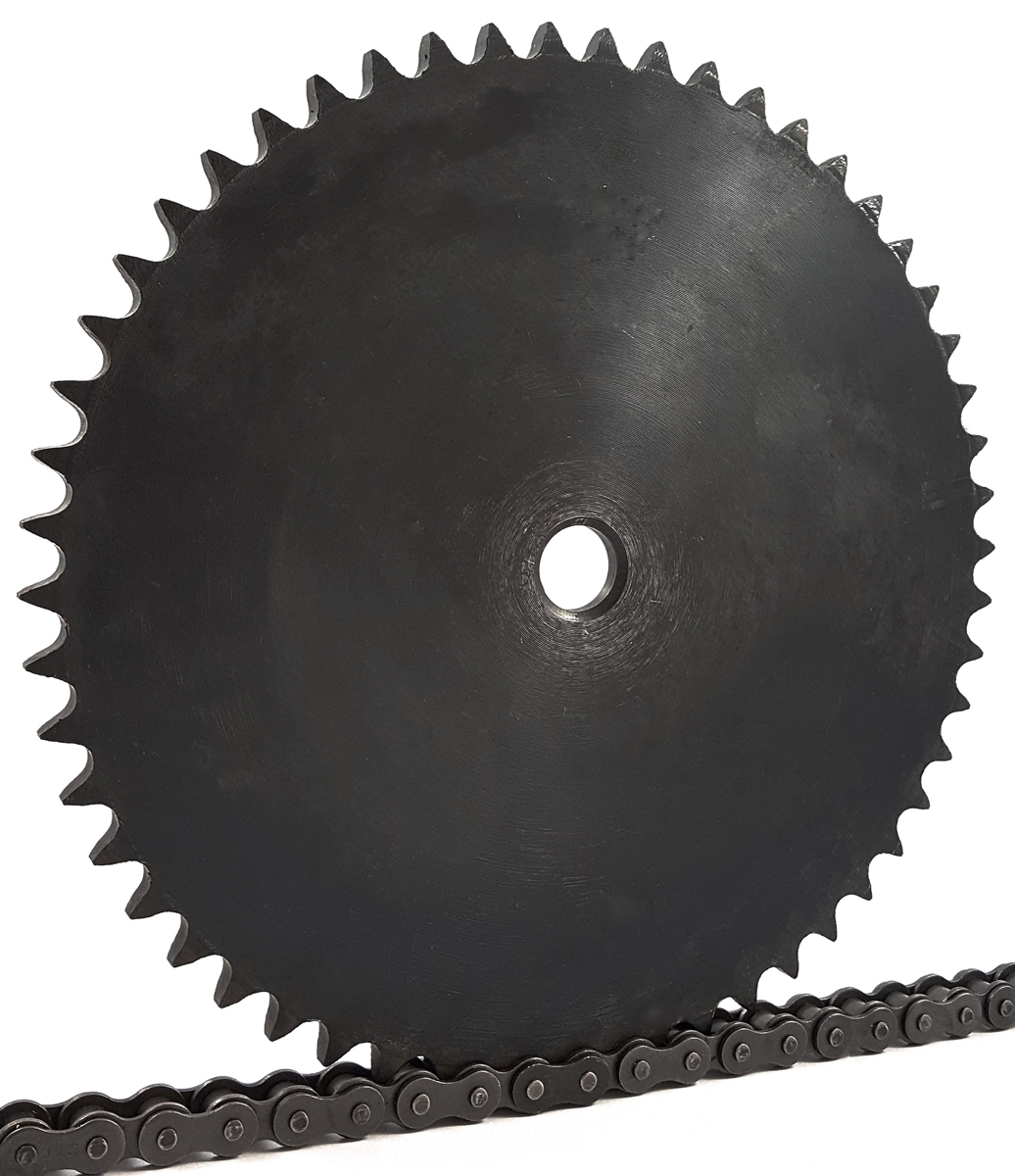

- เฟืองโซ่ชั้นเดียว Pitch = 31.75 mm
- มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8
DIMENSIONS : Pitch diameter = 82.97 mm , Bore stock. = 16 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 92.83 mm , Bore stock. = 16 mm
No.Teeth = 10
DIMENSIONS : Pitch diameter = 102.75 mm , Bore stock. = 16 mm
No.Teeth = 11
DIMENSIONS : Pitch diameter = 112.70 mm , Bore stock. = 16 mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 122.67 mm , Bore stock. = 20 mm
No.Teeth =13
DIMENSIONS : Pitch diameter = 132.67 mm , Bore stock. = 20 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 142.68 mm , Bore stock. = 20 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 152.71 mm , Bore stock. = 20 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 162.75 mm , Bore stock. = 20 mm
No.Teeth = 17
DIMENSIONS : Pitch diameter = 172.79 mm , Bore stock. = 20 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 182.84 mm , Bore stock. = 20mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 192.90 mm , Bore stock. = 20 mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 202.96 mm , Bore stock. = 20 mm
No.Teeth =21
DIMENSIONS : Pitch diameter = 213.03 mm , Bore stock. = 25 mm
No.Teeth = 22
DIMENSIONS : Pitch diameter = 223.10 mm , Bore stock. =25 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 233.17 mm , Bore stock. = 25 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 143.25 mm , Bore stock. = 25 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 253.32 mm , Bore stock. = 25 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter =263.41 mm , Bore stock. = 25 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 273.49 mm , Bore stock. = 25 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 283.57 mm , Bore stock. = 25 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 293.66 mm , Bore stock. = 25 mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 303.75mm , Bore stock. = 25 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 313.83 mm , Bore stock. =25 mm
No.Teeth = 32
DIMENSIONS : Pitch diameter = 323.92 mm , Bore stock. = 25 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 334.01 mm , Bore stock. = 25 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 344.10 mm , Bore stock. = 25 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 354.20 mm , Bore stock. = 25 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter =364.29 mm , Bore stock. = 25 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 374.38 mm , Bore stock. = 25 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter = 384.48 mm , Bore stock. = 25 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 394.57 mm , Bore stock. = 25 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 404.67 mm , Bore stock. = 25 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 414.77 mm , Bore stock. = 30 mm
No.Teeth = 42
DIMENSIONS : Pitch diameter = 424.88 mm , Bore stock. = 30 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 434.96 mm , Bore stock. = 30 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 445.06 mm , Bore stock. = 30 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter = 455.15 mm , Bore stock. = 30 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 465.25 mm , Bore stock. = 30 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 475.35 mm , Bore stock. =30 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 485.45 mm , Bore stock. = 30 mm
No.Teeth = 49
DIMENSIONS : Pitch diameter = 495.55 mm , Bore stock. = 30 mm
No.Teeth = 50
DIMENSIONS : Pitch diameter = 505.65 mm , Bore stock. = 30 mm
No.Teeth = 51
DIMENSIONS : Pitch diameter = 515.75 mm , Bore stock. = 30 mm
No.Teeth = 52
DIMENSIONS : Pitch diameter = 525.85 mm , Bore stock. = 30 mm
No.Teeth = 53
DIMENSIONS : Pitch diameter = 535.95mm , Bore stock. = 30 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 546.05 mm , Bore stock. = 30 mm
No.Teeth = 55
DIMENSIONS : Pitch diameter = 556.15 mm , Bore stock. = 30mm
No.Teeth = 56
DIMENSIONS : Pitch diameter = 566.25 mm , Bore stock. = 30 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 576.35 mm , Bore stock. = 30 mm
No.Teeth = 58
DIMENSIONS : Pitch diameter = 586.45 mm , Bore stock. = 30mm
No.Teeth = 59
DIMENSIONS : Pitch diameter =596.56 mm , Bore stock. = 30 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter = 606.66 mm , Bore stock. = 30 mm
No.Teeth = 70
DIMENSIONS : Pitch diameter =707.68 mm , Bore stock. = 30 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter =727.89 mm , Bore stock. = 30 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 768.30mm , Bore stock. = 30 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 808.71 mm , Bore stock. = 30 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 849.13 mm , Bore stock. =30 mm
No.Teeth = 90
DIMENSIONS : Pitch diameter = 909.76mm , Bore stock. = 30 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter =960.28 mm , Bore stock. = 30 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 970.38 mm , Bore stock. = 30 mm
No.Teeth = 114
DIMENSIONS : Pitch diameter = 1152.27 mm , Bore stock. =30 mm
