ISO PHS 16B - 1CXXX

No.Teeth = 70

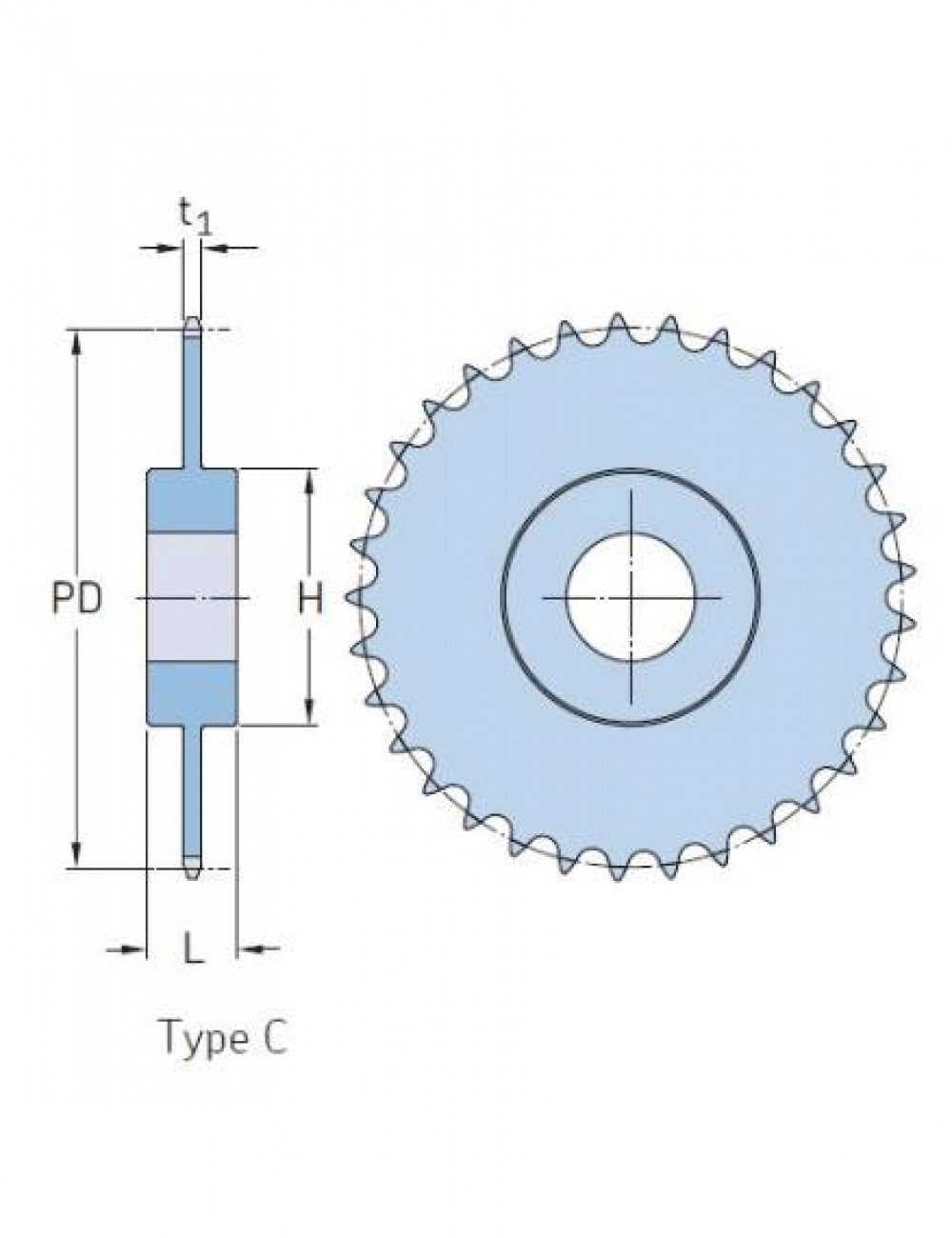

DIMENSIONS : Pitch diameter = 566.14 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 140 mm , L =68 mm

No.Teeth = 72
DIMENSIONS : Pitch diameter = 582.32 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 140 mm , L = 68 mm

No.Teeth = 76
DIMENSIONS : Pitch diameter = 614.65 mm , Bore min. = 25 mm , Bore max. = 75 mm , H = 140 mm , L = 68 mm

No.Teeth = 80
DIMENSIONS : Pitch diameter = 646.96 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 140 mm , L = 68 mm

No.Teeth = 84
DIMENSIONS : Pitch diameter = 679.30 mm , Bore min. = 25 mm , Bore max. =108 mm , H =140 mm , L = 78mm

No.Teeth = 90
DIMENSIONS : Pitch diameter =727.81 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 140 mm , L = 78 mm

No.Teeth = 95
DIMENSIONS : Pitch diameter = 768.82 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 140 mm , L = 78 mm

No.Teeth = 96
DIMENSIONS : Pitch diameter = 766.31 mm , Bore min. = 25 mm , Bore max. =108 mm , H = 140 mm , L = 78 mm

No.Teeth = 114
DIMENSIONS : Pitch diameter = 921.81 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 140 mm , L = 78 mm
