PRODUCT
![]()
ชื่อรุ่น :

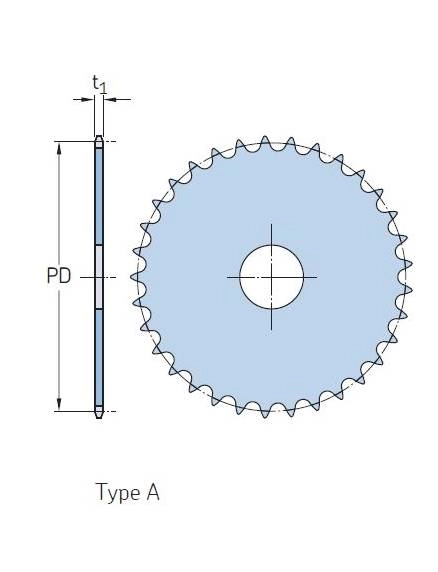

ISO PHS 12B - 1AXXX
แบรนด์
SKF
รายละเอียด :
- เฟืองโซ่ชั้นเดียว Pitch = 19.05 mm
- ไม่มีดุมยื่น
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8
DIMENSIONS : Pitch diameter = 49.78 mm , Bore stock. = 12 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 55.70 mm , Bore stock. = 12 mm
No.Teeth =10
DIMENSIONS : Pitch diameter = 61.64 mm , Bore stock. = 12 mm
No.Teeth =11
DIMENSIONS : Pitch diameter = 67.61 mm , Bore stock. = 14mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 73.61 mm , Bore stock. = 14 mm
No.Teeth = 13
DIMENSIONS : Pitch diameter = 79.59 mm , Bore stock. = 14 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 85.61mm , Bore stock. = 14 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 91.63 mm , Bore stock. = 14 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 97.65 mm , Bore stock. = 14 mm
No.Teeth = 17
DIMENSIONS : Pitch diameter = 103.67 mm , Bore stock. = 14 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 109.71 mm , Bore stock. = 14 mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 115.75 mm , Bore stock. = 14 mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 121.78 mm , Bore stock. = 14mm
No.Teeth = 21
DIMENSIONS : Pitch diameter = 127.82 mm , Bore stock. = 16 mm
No.Teeth = 22
DIMENSIONS : Pitch diameter = 133.86 mm , Bore stock. = 16 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 139.90 mm , Bore stock. = 16 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 145.94 mm , Bore stock. = 16 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 152.00 mm , Bore stock. = 16 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter = 158.04 mm , Bore stock. = 16 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 164.09 mm , Bore stock. = 16 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 170.13 mm , Bore stock. = 16 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 176.19 mm , Bore stock. = 16 mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 182.25 mm , Bore stock. = 16 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 188.31 mm , Bore stock. = 20 mm
No.Teeth =32
DIMENSIONS : Pitch diameter = 194.36 mm , Bore stock. = 20 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 200.40 mm , Bore stock. = 20 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 206.46 mm , Bore stock. = 20 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 212.52 mm , Bore stock. = 20 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter =218.58 mm , Bore stock. = 20 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 224.64 mm , Bore stock. = 20 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter = 230.69 mm , Bore stock. = 20 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 236.75 mm , Bore stock. =20 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 242.81 mm , Bore stock. = 20 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 248.87 mm , Bore stock. = 25 mm
No.Teeth = 42
DIMENSIONS : Pitch diameter = 254.93 mm , Bore stock. =25 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 260.98 mm , Bore stock. = 25 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 267.04 mm , Bore stock. = 25 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter =273.10 mm , Bore stock. = 25 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 279.16 mm , Bore stock. = 25 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 285.12 mm , Bore stock. = 25 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 291.27 mm , Bore stock. = 25 mm
No.Teeth = 49
DIMENSIONS : Pitch diameter = 297.33 mm , Bore stock. = 25 mm
No.Teeth = 50
DIMENSIONS : Pitch diameter = 303.39 mm , Bore stock. = 25 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 327.64 mm , Bore stock. = 25 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 345.81 mm , Bore stock. = 25 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter = 363.99 mm , Bore stock. = 25 mm
No.Teeth = 65
DIMENSIONS : Pitch diameter = 394.29 mm , Bore stock. = 25 mm
No.Teeth = 68
DIMENSIONS : Pitch diameter = 412.49 mm , Bore stock. = 30 mm
No.Teeth =70
DIMENSIONS : Pitch diameter = 424.60mm , Bore stock. = 30 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter = 436.74 mm , Bore stock. = 30 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 460.99 mm , Bore stock. = 30 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 485.22 mm , Bore stock. = 30 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 509.48 mm , Bore stock. = 30 mm
No.Teeth = 90
DIMENSIONS : Pitch diameter = 545.85 mm , Bore stock. = 30 mm
No.Teeth = 92
DIMENSIONS : Pitch diameter = 557.98 mm , Bore stock. = 30 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter = 576.17 mm , Bore stock. = 30 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 582.23 mm , Bore stock. = 30 mm
No.Teeth =114
DIMENSIONS : Pitch diameter = 691.36 mm , Bore stock. = 30 mm
