PRODUCT
![]()
ชื่อรุ่น :
ISO PHS 10B - 1AXXX
แบรนด์
SKF
รายละเอียด :

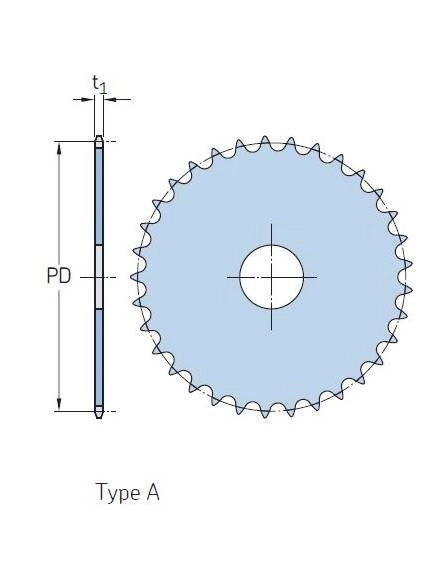

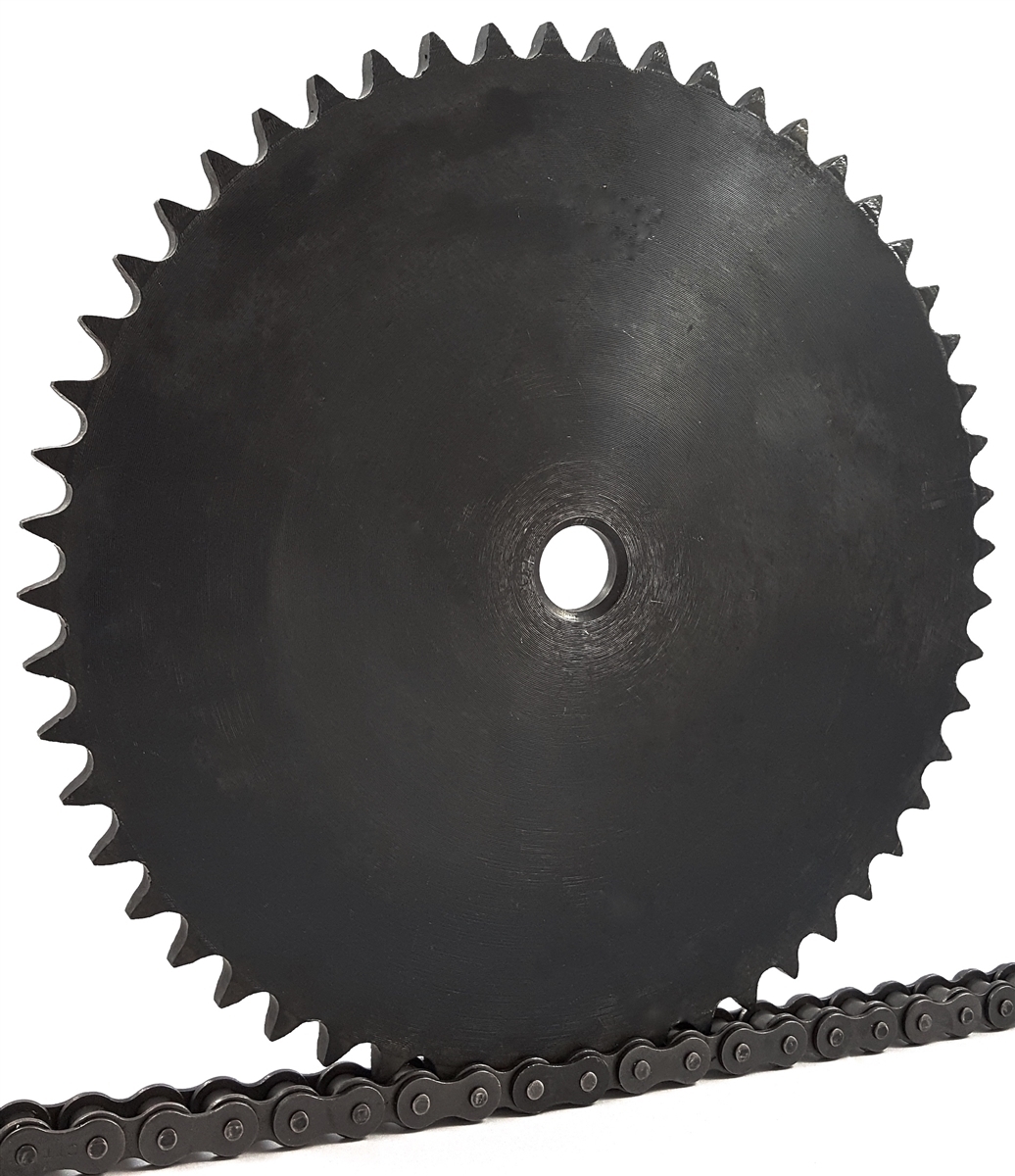

- เฟืองโซ่ชั้นเดียว Pitch = 15.88 mm
- ไม่มีดุมยื่น
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8
DIMENSIONS : Pitch diameter = 41.48 mm , Bore stock. = 10 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 46.42 mm , Bore stock. = 10 mm
No.Teeth = 10
DIMENSIONS : Pitch diameter = 51.37 mm , Bore stock. = 10 mm
No.Teeth = 11
DIMENSIONS : Pitch diameter = 56.34 mm , Bore stock. = 10 mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 61.34 mm , Bore stock. = 10 mm
No.Teeth = 13
DIMENSIONS : Pitch diameter = 66.32 mm , Bore stock. = 10 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 71.34 mm , Bore stock. = 10 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 76.36 mm , Bore stock. = 10 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 81.37 mm , Bore stock. = 12 mm
No.Teeth = 17
DIMENSIONS : Pitch diameter = 86.39 mm , Bore stock. = 12 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 91.42 mm , Bore stock. = 12 mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 96.45 mm , Bore stock. = 12 mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 101.49 mm , Bore stock. = 12 mm
No.Teeth = 21
DIMENSIONS : Pitch diameter = 106.52 mm , Bore stock. = 12 mm
No.Teeth = 22
DIMENSIONS : Pitch diameter = 111.55 mm , Bore stock. = 12 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 116.58 mm , Bore stock. = 12 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 121.62 mm , Bore stock. = 12 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 126.66 mm , Bore stock. = 12 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter = 131.70 mm , Bore stock. = 16 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 136.75 mm , Bore stock. = 16 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 141.78 mm , Bore stock. = 16 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 146.83 mm , Bore stock. = 16 mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 151.87 mm , Bore stock. = 16 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 156.92 mm , Bore stock. = 16 mm
No.Teeth = 32
DIMENSIONS : Pitch diameter = 161.95 mm , Bore stock. = 16 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 167.00 mm , Bore stock. = 16 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 172.05 mm , Bore stock. = 16 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 177.10 mm , Bore stock. = 16 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter = 182.15 mm , Bore stock. = 20 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 187.20 mm , Bore stock. = 20 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter = 192.24 mm , Bore stock. = 20 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 197.29 mm , Bore stock. = 20 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 202.34 mm , Bore stock. = 20 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 207.39 mm , Bore stock. = 20 mm
No.Teeth = 42
DIMENSIONS : Pitch diameter = 212.44 mm , Bore stock. = 20 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 217.49 mm , Bore stock. = 20 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 222.53 mm , Bore stock. = 20 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter = 227.58 mm , Bore stock. = 20 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 232.63 mm , Bore stock. = 20 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 237.68 mm , Bore stock. = 20 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 242.73 mm , Bore stock. = 20 mm
No.Teeth = 49
DIMENSIONS : Pitch diameter = 247.78 mm , Bore stock. = 20 mm
No.Teeth = 50
DIMENSIONS : Pitch diameter = 252.82 mm , Bore stock. = 20 mm
No.Teeth = 51
DIMENSIONS : Pitch diameter = 257.87 mm , Bore stock. = 20 mm
No.Teeth = 52
DIMENSIONS : Pitch diameter = 262.92 mm , Bore stock. = 20 mm
No.Teeth = 53
DIMENSIONS : Pitch diameter = 267.97 mm , Bore stock. = 20 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 273.03 mm , Bore stock. = 20 mm
No.Teeth = 55
DIMENSIONS : Pitch diameter = 278.08 mm , Bore stock. = 20 mm
No.Teeth = 56
DIMENSIONS : Pitch diameter = 283.13 mm , Bore stock. = 25 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 288.18 mm , Bore stock. = 25 mm
No.Teeth = 58
DIMENSIONS : Pitch diameter = 293.23 mm , Bore stock. = 25 mm
No.Teeth = 59
DIMENSIONS : Pitch diameter = 298.27 mm , Bore stock. = 25 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter = 303.32 mm , Bore stock. = 25 mm
No.Teeth = 65
DIMENSIONS : Pitch diameter = 328.58 mm , Bore stock. = 25 mm
No.Teeth = 70
DIMENSIONS : Pitch diameter = 353.84 mm , Bore stock. = 25 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter = 363.95 mm , Bore stock. = 25 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 384.16 mm , Bore stock. = 25 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 404.35 mm , Bore stock. = 25 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 424.57 mm , Bore stock. = 30 mm
No.Teeth = 85
DIMENSIONS : Pitch diameter = 429.62 mm , Bore stock. = 30 mm
No.Teeth = 92
DIMENSIONS : Pitch diameter = 464.98 mm , Bore stock. = 30 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter = 480.14 mm , Bore stock. = 30 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 485.19 mm , Bore stock. = 30 mm
No.Teeth = 112
DIMENSIONS : Pitch diameter = 566.03 mm , Bore stock. = 30 mm
No.Teeth = 114
DIMENSIONS : Pitch diameter = 576.13 mm , Bore stock. = 30 mm
No.Teeth = 120
DIMENSIONS : Pitch diameter = 606.45 mm , Bore stock. = 30 mm
