ชื่อรุ่น :
ISO PHS 06B - 1BXXX
แบรนด์
SKF
รายละเอียด :
- เฟืองโซ่ชั้นเดียว Pitch = 9.525 mm
- มีดุมยื่น 1 ข้าง
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8

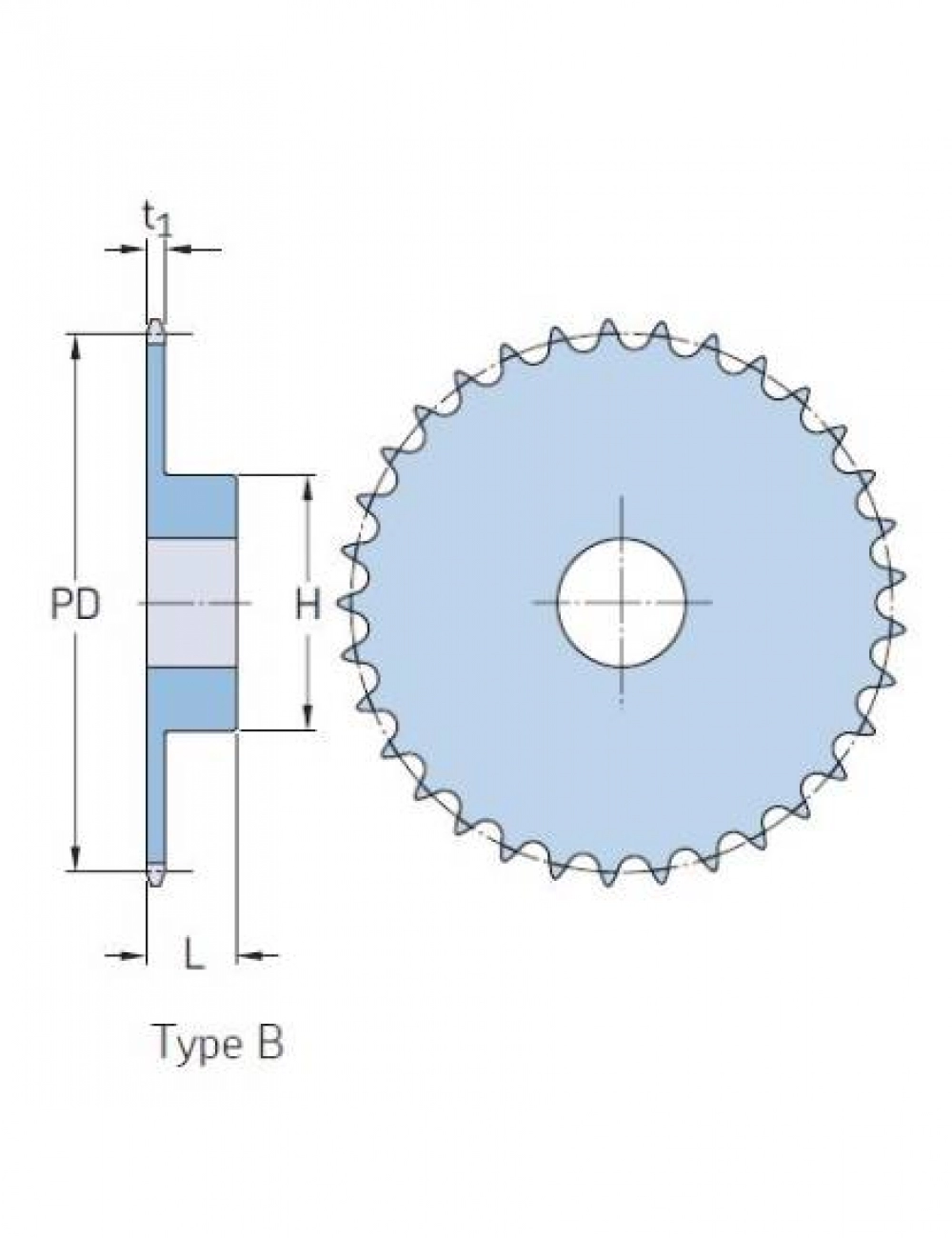

DIMENSIONS : Pitch diameter = 24.89 mm , Bore min. = 6 mm , Bore max. =6 mm , H = 15+ mm , L = 20 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 27.85 mm , Bore min. = 8 mm , Bore max. = 8 mm , H = 18+ mm , L = 20 mm
No.Teeth = 10
DIMENSIONS : Pitch diameter = 30.82 mm , Bore min. = 8 mm , Bore max. = 8 mm , H = 20 mm , L = 20 mm
No.Teeth = 11
DIMENSIONS : Pitch diameter =33.80 mm , Bore min. = 8 mm , Bore max. = 8 mm , H = 22 mm , L = 25 mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 36.80 mm , Bore min. = 8 mm , Bore max. = 10 mm , H = 25 mm , L = 25 mm
No.Teeth = 13
DIMENSIONS : Pitch diameter = 39.79 mm , Bore min. = 10 mm , Bore max. = 12 mm , H = 28 mm , L = 25 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 42.80 mm , Bore min. = 10 mm , Bore max. = 15 mm , H = 31 mm , L =25 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 45.18 mm , Bore min. = 10 mm , Bore max. = 18 mm , H = 34 mm , L =25 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 48.82 mm , Bore min. = 10 mm , Bore max. = 20 mm , H = 37 mm , L = 28 mm
No.Teeth = 17
DIMENSIONS : Pitch diameter = 51.83 mm , Bore min. = 10 mm , Bore max. = 23 mm , H = 40 mm , L = 28 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 54.85 mm , Bore min. = 10 mm , Bore max. = 26 mm , H = 43 mm , L = 28 mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 57.87 mm , Bore min. = 10 mm , Bore max. = 28 mm , H = 45 mm , L = 28mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 60.89 mm , Bore min. = 10 mm , Bore max. = 28 mm , H = 46 mm , L = 28mm
No.Teeth = 21
DIMENSIONS : Pitch diameter = 63.91 mm , Bore min. = 12 mm , Bore max. = 30 mm , H = 48 mm , L = 28 mm
No.Teeth = 22
DIMENSIONS : Pitch diameter = 66.93 mm , Bore min. = 12 mm , Bore max. = 35 mm , H = 50 mm , L = 28 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 69.95 mm , Bore min. = 12 mm , Bore max. = 35 mm , H = 52 mm , L = 28 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 72.97 mm , Bore min. = 12 mm , Bore max. = 35 mm , H = 54 mm , L = 28 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 76.00 mm , Bore min. = 12 mm , Bore max. = 40 mm , H = 57 mm , L = 28 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter = 79.02 mm , Bore min. = 12 mm , Bore max. = 40 mm , H =60 mm , L = 28 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 82.05 mm , Bore min. = 12 mm , Bore max. = 40 mm , H = 60 mm , L = 28 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 85.07 mm , Bore min. = 12 mm , Bore max. = 40 mm , H =60 mm , L = 28 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 88.09 mm , Bore min. = 12 mm , Bore max. = 40 mm , H = 60 mm , L = 28 mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 91.12 mm , Bore min. = 12 mm , Bore max. = 40 mm , H =60 mm , L = 28 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 94.15 mm , Bore min. = 14 mm , Bore max. = 43 mm , H = 65 mm , L = 30 mm
No.Teeth = 32
DIMENSIONS : Pitch diameter = 97.17 mm , Bore min. = 14 mm , Bore max. = 43 mm , H = 65 mm , L = 30 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 100.20 mm , Bore min. = 14 mm , Bore max. = 43 mm , H = 65 mm , L = 30 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 103.23 mm , Bore min. = 14 mm , Bore max. = 43 mm , H = 65 mm , L = 30 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 106.26 mm , Bore min. = 14 mm , Bore max. = 43 mm , H = 65 mm , L = 30 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter = 109.29 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 70 mm , L =30 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 112.32 mm , Bore min. = 14 mm , Bore max. =48 mm , H = 70 mm , L =30 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter = 115.35 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 70 mm , L = 30 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 118.37 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 70 mm , L = 30 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 121.40 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 70 mm , L = 30 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 124.43 mm , Bore min. = 14 mm , Bore max. = 48 mm , H =78 mm , L = 32 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 130.49 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 133.52 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter = 136.55 mm , Bore min. = 14 mm , Bore max. = 40 mm , H = 78 mm , L = 32 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 139.58 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 142.61 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 145.64 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 50
DIMENSIONS : Pitch diameter = 151.69 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L =32 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 163.82 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 172.91 mm , Bore min. = 14 mm , Bore max. = 40 mm , H = 78 mm , L = 32 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter = 182.00 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 64
DIMENSIONS : Pitch diameter = 194.12 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 65
DIMENSIONS : Pitch diameter = 197.15 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 70
DIMENSIONS : Pitch diameter = 212.30 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter = 218.37 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 230.49 mm , Bore min. = 14 mm , Bore max. = 48 mm , H = 78 mm , L = 32 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 242.61 mm , Bore min. = 14 mm , Bore max. = 52 mm , H = 78 mm , L = 32 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 254.74 mm , Bore min. = 14mm , Bore max. = 52 mm , H = 80 mm , L = 32 mm
No.Teeth = 85
DIMENSIONS : Pitch diameter = 257.77 mm , Bore min. = 14 mm , Bore max. = 52 mm , H = 80 mm , L = 32 mm
No.Teeth = 90
DIMENSIONS : Pitch diameter = 272.93 mm , Bore min. = 14 mm , Bore max. = 55 mm , H = 80 mm , L = 32 mm
No.Teeth = 92
DIMENSIONS : Pitch diameter = 278.99 mm , Bore min. = 14 mm , Bore max. = 55 mm , H = 80 mm , L = 32 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter = 288.08 mm , Bore min. = 14 mm , Bore max. = 55 mm , H = 80 mm , L = 32 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 291.11 mm , Bore min. = 14 mm , Bore max. = 55 mm , H = 80 mm , L = 32 mm
No.Teeth = 114
DIMENSIONS : Pitch diameter = 345.68 mm , Bore min. = 14 mm , Bore max. = 55 mm , H = 80 mm , L = 32 mm
