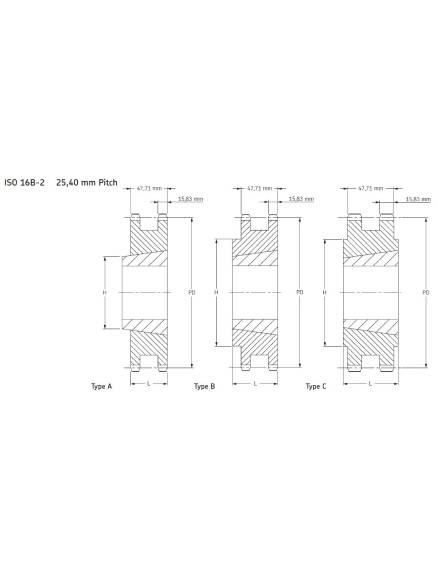

ISO PHS 16B - 2TBXX

No.Teeth = 13 , Bushing Size = 1615
DIMENSIONS :Pitch diameter = 106.12 mm , Type = A , Bore min. = 14 mm , Bore max. = 42.0 mm ,L = 47.7 mm , H = mm

No.Teeth = 14 , Bushing Size =2012
DIMENSIONS :Pitch diameter = 114.15 mm , Type = A , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 47.7 mm , H = mm

No.Teeth = 15 , Bushing Size = 2012
DIMENSIONS :Pitch diameter = 122.17 mm , Type = A , Bore min. = 14 mm , Bore max. = 50.8 mm ,L = 47.7 mm , H = mm

No.Teeth = 16 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 130.20 mm , Type = A , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 47.7 mm , H = mm

No.Teeth = 17 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 138.22 mm , Type = A , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 47.7 mm , H = mm

No.Teeth = 18 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 146.28 mm , Type = A , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 47.7 mm , H = mm

No.Teeth = 19 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 154.33 mm , Type = A , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 47.7 mm , H = mm

No.Teeth = 20 , Bushing Size = 2517
DIMENSIONS :Pitch diameter = 162.38 mm , Type = B , Bore min. = 16 mm , Bore max. = 63.5 mm ,L = 47.7 mm , H = 140 mm

No.Teeth = 21 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 170.43 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 22 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 178.48 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 23 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 186.53 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 24 , Bushing Size =3020
DIMENSIONS :Pitch diameter = 194.59 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 25 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 202.66 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 26 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 210.72 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 27 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 218.79 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 28 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 226.85 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 29 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 234.92 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 30 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 243.00 mm , Type = B , Bore min. = 25 mm , Bore max. = 76.2 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 35 , Bushing Size = 3030
DIMENSIONS :Pitch diameter = 283.36 mm , Type = C , Bore min. = 35 mm , Bore max. = 76.0 mm ,L = 76.0 mm , H = 140 mm

No.Teeth = 38 , Bushing Size = 3020
DIMENSIONS :Pitch diameter = 307.59 mm , Type = C , Bore min. = 25 mm , Bore max. = 63.5 mm ,L = 51.0 mm , H = 140 mm

No.Teeth = 42 , Bushing Size = 3030
DIMENSIONS :Pitch diameter = 339.90 mm , Type = C , Bore min. = 35 mm , Bore max. = 76.2 mm ,L = 76.0 mm , H = 140 mm

No.Teeth = 45 , Bushing Size = 3030
DIMENSIONS :Pitch diameter = 364.13 mm , Type = C , Bore min. = 35 mm , Bore max. = 76.2 mm ,L = 76.0 mm , H = 140 mm

No.Teeth = 57 , Bushing Size = 3525
DIMENSIONS :Pitch diameter = 461.07 mm , Type = C , Bore min. = 35 mm , Bore max. = 100.0 mm ,L = 63.5 mm , H = 175 mm

No.Teeth = 76 , Bushing Size = 3525
DIMENSIONS :Pitch diameter = 614.65 mm , Type = C , Bore min. = 35 mm , Bore max. = 100.0 mm ,L = 63.5 mm , H = 175 mm

No.Teeth = 95 , Bushing Size = 3525
DIMENSIONS :Pitch diameter = 768.22 mm , Type = C , Bore min. = 40 mm , Bore max. = 101.6 mm ,L = 102.0 mm , H = 215 mm

No.Teeth = 114 , Bushing Size = 4040
DIMENSIONS :Pitch diameter = 921.81 mm , Type = C , Bore min. = 40 mm , Bore max. = 101.6 mm ,L = 102.0 mm , H = 215 mm
