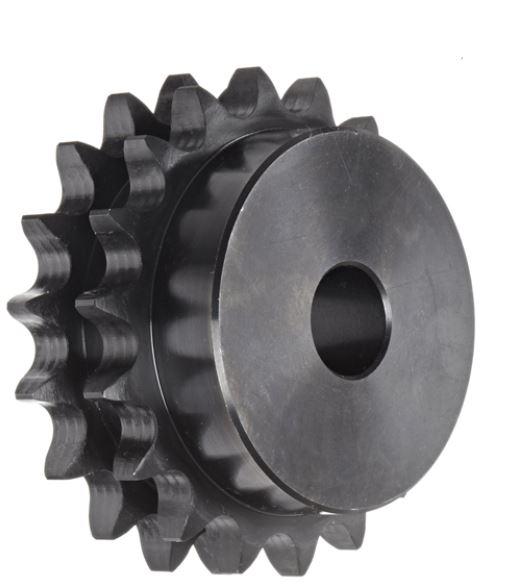

ISO PHS 24B - 2BXX

No.Teeth = 11

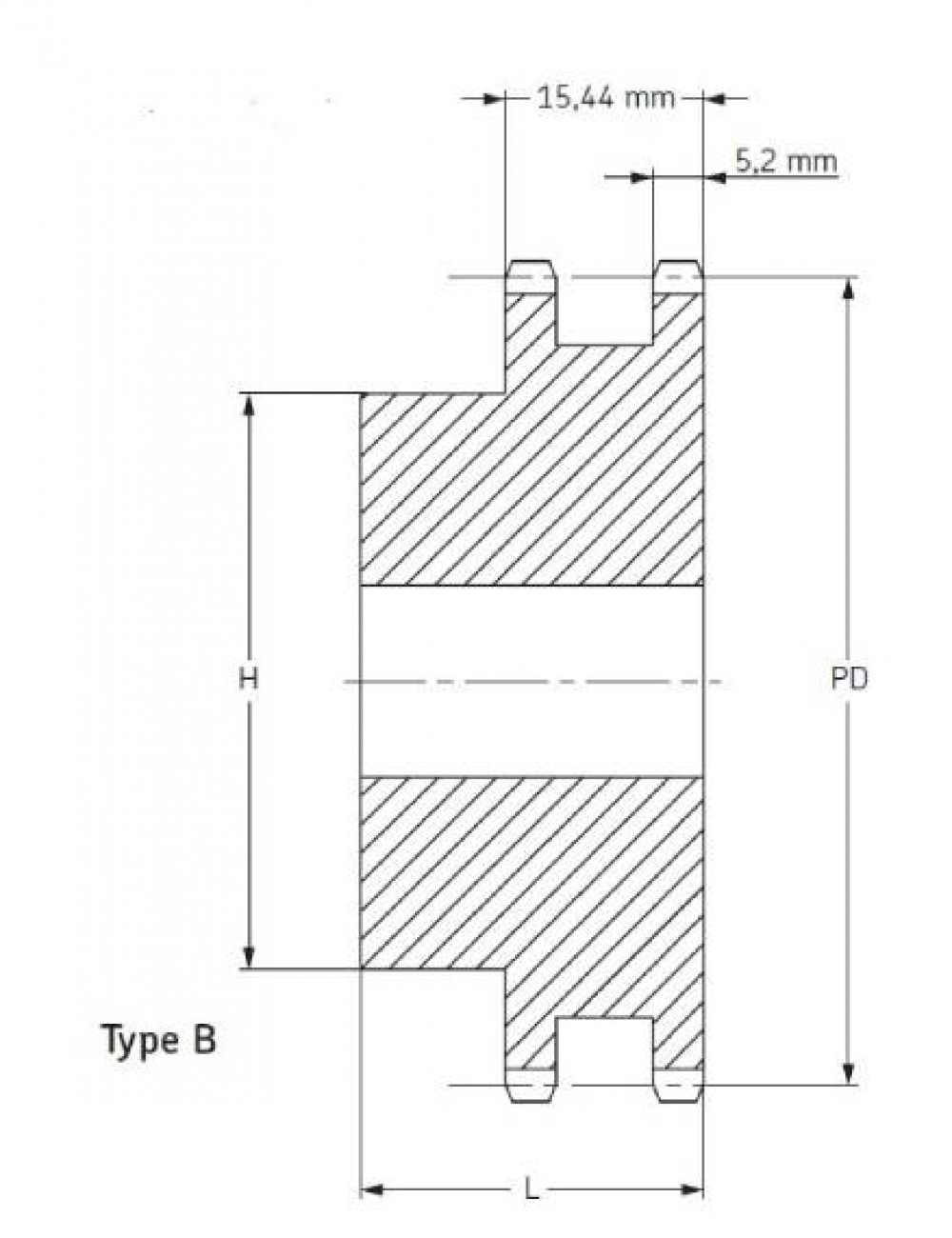

DIMENSIONS :Pitch diameter = 135.23 mm , Bore min. = 25 mm , Bore max. = 60 mm , H = 90 mm , L = 100 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 147.21 mm , Bore min. = 25 mm , Bore max. = 67 mm , H =102 mm , L = 100 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 159.20 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 114 mm , L =100 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 171.22 mm , Bore min. = 25 mm , Bore max. = 84 mm , H = 128 mm , L = 100 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 183.25 mm , Bore min. = 25 mm , Bore max. = 93 mm , H = 132 mm , L = 100 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 195.29 mm , Bore min. = 25 mm , Bore max. = 100 mm , H = 136 mm , L = 100 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 207.35 mm , Bore min. = 25 mm , Bore max. = 100 mm , H = 136 mm , L = 100 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter =219.41 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 150 mm , L = 100 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 231.48 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 243.55 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 160 mm , L = 100mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 255.63 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 267.72 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 279.80 mm , Bore min. = 25 mm , Bore max. = 108 mm , H =160 mm , L =100 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 291.90 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 303.99 mm , Bore min. = 25 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 316.09 mm , Bore min. = 30 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 328.19 mm , Bore min. = 30 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 340.29 mm , Bore min. = 30 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 352.39 mm , Bore min. = 30 mm , Bore max. = 108 mm , H =160 mm , L = 100 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 364.49 mm , Bore min. = 30 mm , Bore max. = 108 mm , H = 160 mm , L = 100 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 388.71 mm , Bore min. = 30 mm , Bore max. = 108 mm , H = 160 mm , L =100 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 461.37 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 160 mm , L = 100 mm

No.Teeth = 40
DIMENSIONS :Pitch diameter = 485.60 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 160 mm , L = 100 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 509.83 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 160 mm , L =100 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 546.19 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 160 mm , L =100 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 582.54 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 160 mm , L = 100 mm

No.Teeth = 50
DIMENSIONS :Pitch diameter = 606.78 mm , Bore min. = 30 mm , Bore max. = 137 mm , H = 160 mm , L = 100 mm

No.Teeth = 54
DIMENSIONS :Pitch diameter = 655.26 mm , Bore min. =30 mm , Bore max. = 161 mm , H = 180 mm , L = 110 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 691.62 mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 180 mm , L = 110 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 727.99 mm , Bore min. = 30 mm , Bore max. =161 mm , H = 180 mm , L = 120mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 824.97 mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 200 mm , L = 120 mm

No.Teeth = 72
DIMENSIONS :Pitch diameter = 873.46 mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 200 mm , L =120 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 921.96 mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 200 mm , L = 120 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 1152.33 mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 200 mm , L =120 mm

No.Teeth = 96
DIMENSIONS :Pitch diameter = 1164.46 mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 200 mm , L =120 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter 1382.72= mm , Bore min. = 30 mm , Bore max. = 161 mm , H = 200 mm , L = 120 mm
