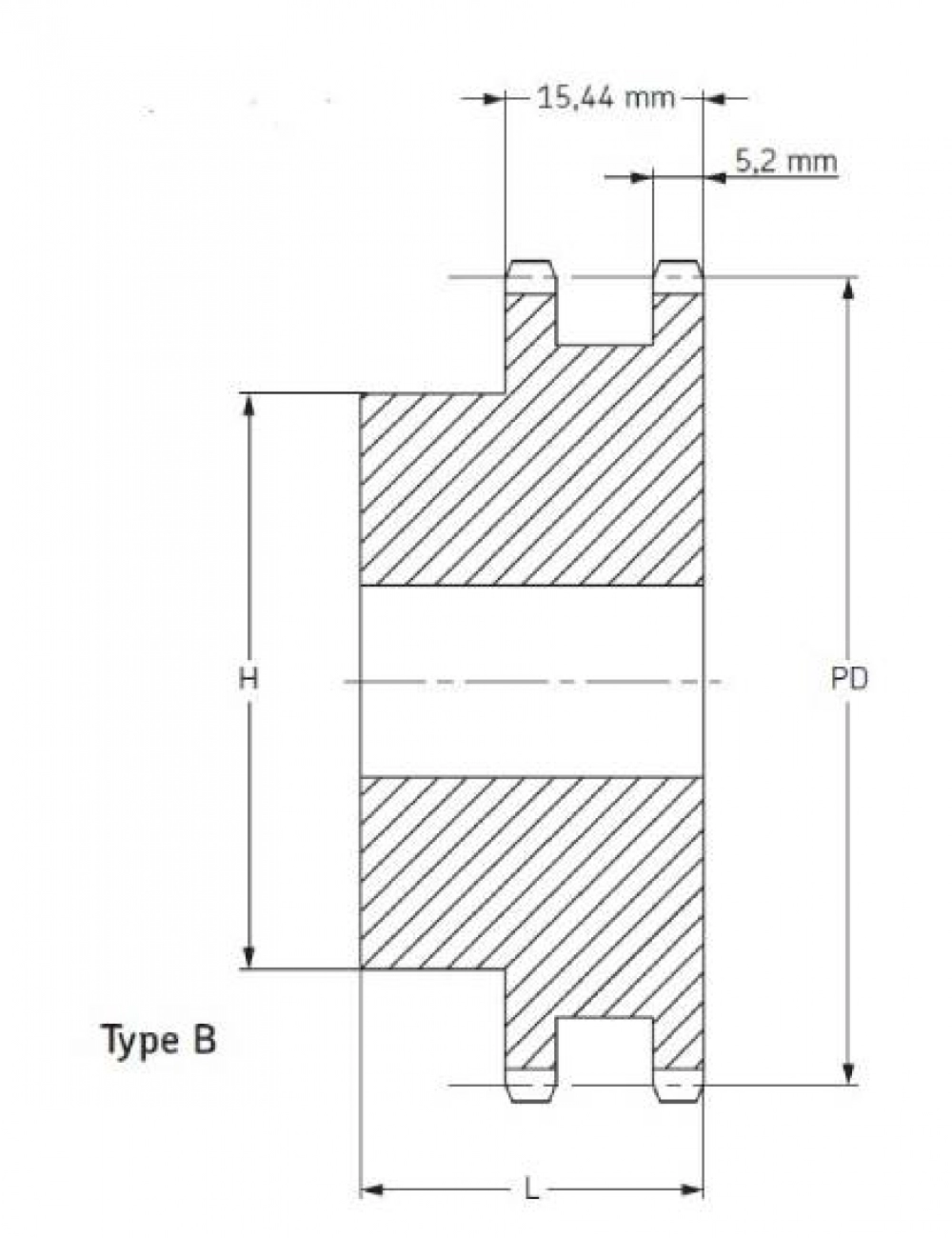

ISO PHS 20B - 2BXX

No.Teeth = 10
DIMENSIONS :Pitch diameter = 102.75 mm , Bore min. = 20 mm , Bore max. = 45 mm , H =70 mm , L = 75 mm

No.Teeth = 11
DIMENSIONS :Pitch diameter = 112.70 mm , Bore min. = 20 mm , Bore max. = 52 mm , H = 80 mm , L = 80 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 122.67 mm , Bore min. = 20 mm , Bore max. = 60 mm , H = 90 mm , L = 80 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 132.67 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 100 mm , L = 80 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 142.68 mm , Bore min. = 20 mm , Bore max. = 73 mm , H =110 mm , L = 80mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 152.71 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 80 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 162.75 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 120 mm , L = 80 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 172.79 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 120 mm , L = 80 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 182.84 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 120 mm , L = 80 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 192.90 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 120 mm , L = 80 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 202.96 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 120 mm , L = 80 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 213.03 mm , Bore min. = 25 mm , Bore max. = 92 mm , H = 140 mm , L = 80 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 223.10 mm , Bore min. = 25 mm , Bore max. = 92 mm , H = 140 mm , L = 80 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 233.17 mm , Bore min. = 25 mm , Bore max. = 92 mm , H = 140 mm , L = 80 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 243.25 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 140 mm , L = 80 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 253.32 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 140 mm , L = 80 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 263.41 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 150 mm , L = 80 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 273.49 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 150 mm , L = 80 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 283.57 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 150 mm , L = 80 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 303.75 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 150 mm , L = 80 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 323.92 mm , Bore min. = 25 mm , Bore max. = 96 mm , H = 150 mm , L = 80 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 354.20 mm , Bore min. = 25 mm , Bore max. = 100 mm , H = 150 mm , L = 80 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 364.29 mm , Bore min. = 30 mm , Bore max. = 100 mm , H =150 mm , L = 80 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 384.48 mm , Bore min. = 30 mm , Bore max. = 100 mm , H = 150 mm , L =80 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 424.86 mm , Bore min. = 30 mm , Bore max. = 100 mm , H = 160 mm , L = 90 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 455.15 mm , Bore min. = 30 mm , Bore max. = 100 mm , H = 160 mm , L = 90 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 576.35 mm , Bore min. = 30 mm , Bore max. = 100 mm , H = 160 mm , L = 100 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 606.66 mm , Bore min. = 30 mm , Bore max. = 125 mm , H = 160 mm , L = 100 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter =687.48 mm , Bore min. =30 mm , Bore max. = 125 mm , H = 180 mm , L = 100 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 768.30 mm , Bore min. = 30 mm , Bore max. = 125 mm , H = 180 mm , L = 100 mm

No.Teeth = 80
DIMENSIONS :Pitch diameter = 808.71 mm , Bore min. = 30 mm , Bore max. = 125 mm , H = 180 mm , L = 100 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 960.28 mm , Bore min. = 30 mm , Bore max. = 125 mm , H = 180 mm , L = 100 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 1152.26 mm , Bore min. = 30 mm , Bore max. = 125 mm , H = 180 mm , L = 100 mm
