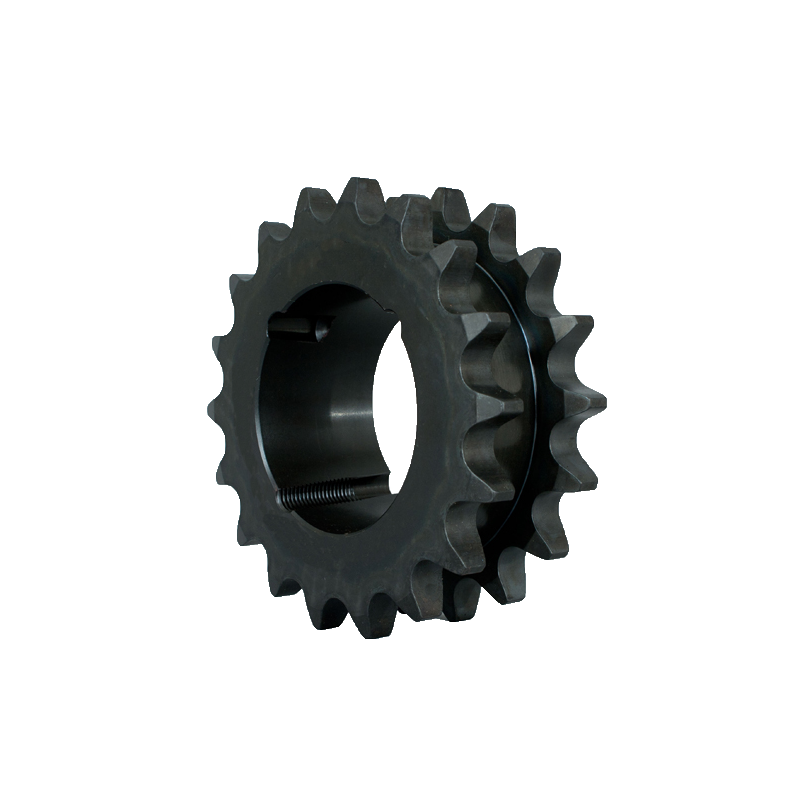

ISO PHS 20B - 1DSTBXX

No.Teeth = 15

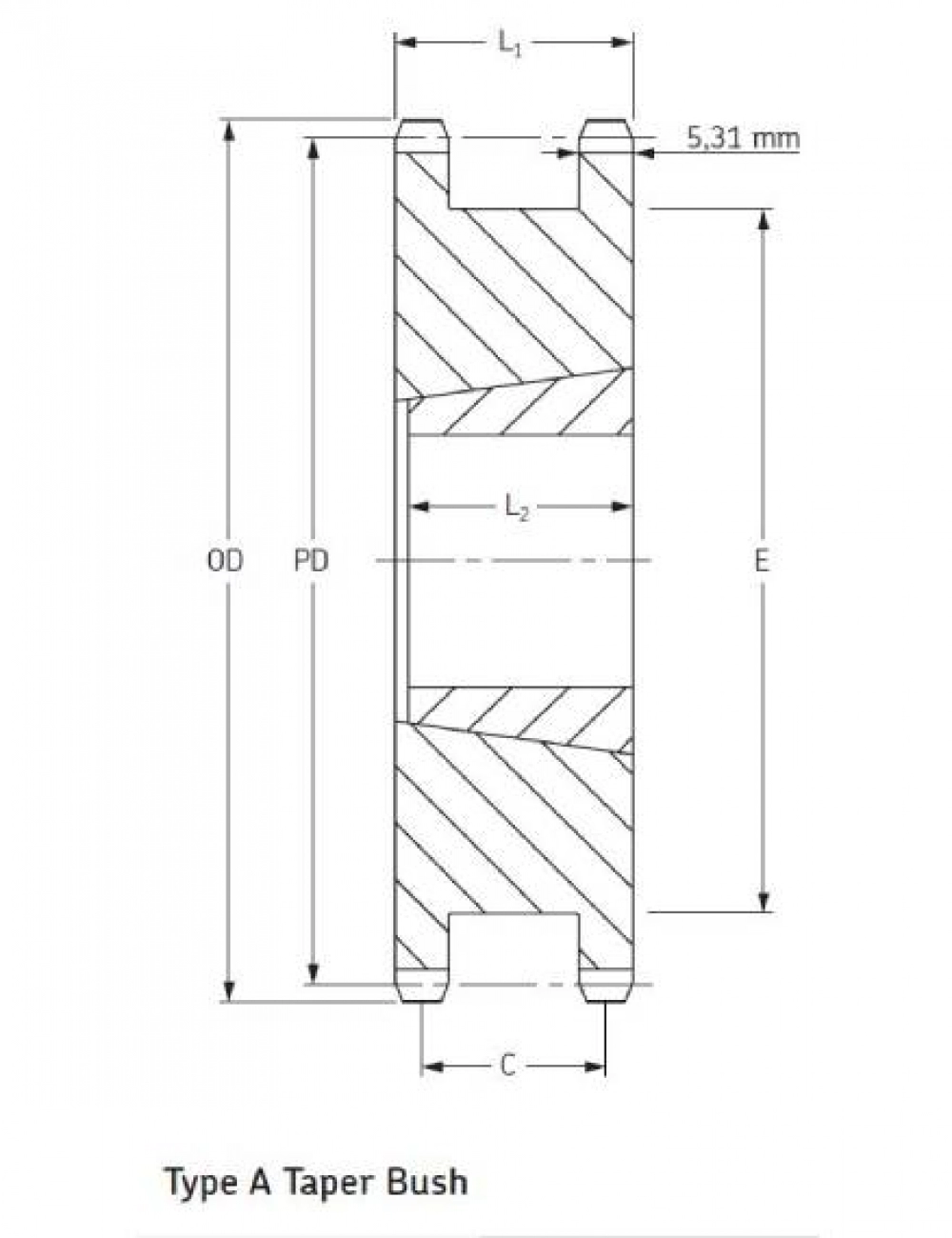

DIMENSIONS :Pitch diameter = 152.72 mm , Bore min. = 16 mm , Bore max. = 60 mm , L1= 68.3 mm , C = 49.80 mm, E = 115 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 162.75 mm , Bore min. = 16 mm , Bore max. = 60 mm , L1=68.3 mm , C =49.80 mm, E = 127 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 172.78 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 68.3 mm , C = 49.80 mm, E = 137 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 182.85 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 68.3 mm , C =49.80 mm, E = 147 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 192.91 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 68.3 mm , C = 49.80 mm, E = 157 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 218.1 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 68.3 mm , C = 49.80 mm, E = 167 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 228.3 mm , Bore min. = 25 mm , Bore max. = 75 mm , L1= 68.3 mm , C = 49.80 mm, E = 177 mm
