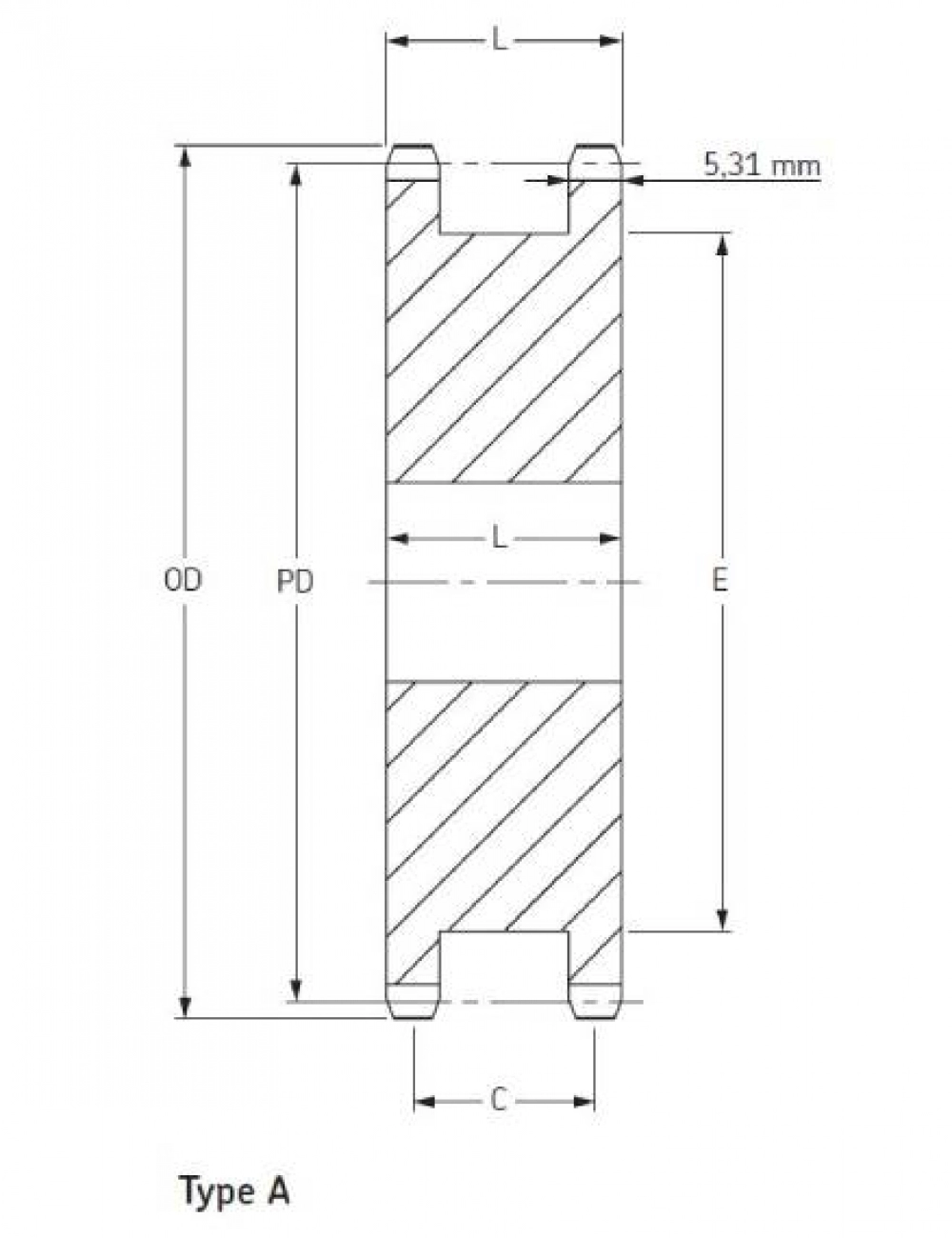

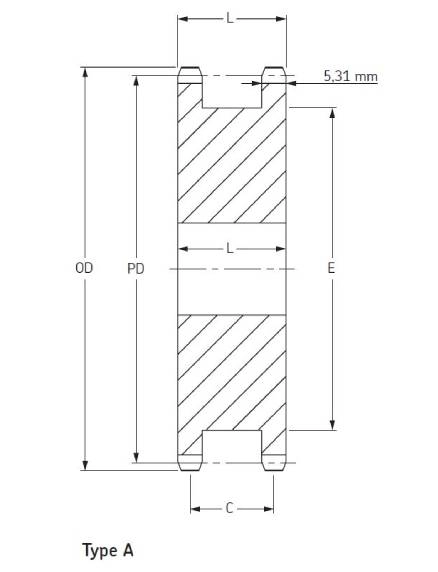

ISO PHS 20B - 1DSAXX

No.Teeth = 13
DIMENSIONS :Pitch diameter = 132.66 mm , Bore min. = 25 mm , Bore max. = 63.5 mm , L = 68.3 mm , C = 49.8 mm, E = 96 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 142.67 mm , Bore min. = 25 mm , Bore max. = 69.85 mm , L = 68.3 mm , C = 49.8 mm, E = 106 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 152.70 mm , Bore min. = 32 mm , Bore max. = 77.79 mm , L = 68.3 mm , C = 49.8 mm, E = 116 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 162.74 mm , Bore min. = 32 mm , Bore max. = 82.55 mm , L = 68.3 mm , C = 49.8 mm, E = 114 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 172.80 mm , Bore min. = 32 mm , Bore max. = 92.08 mm , L = 68.3 mm , C = 49.8 mm, E = 124 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 182.83 mm , Bore min. = 32 mm , Bore max. = 95.25 mm , L = 68.3 mm , C = 49.8 mm, E = 134 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 192.91 mm , Bore min. = 32 mm , Bore max. = 106.36 mm , L = 68.3 mm , C = 49.8 mm, E = 157 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 202.97 mm , Bore min. = 32 mm , Bore max. = 106.36 mm , L = 68.3 mm , C = 49.8 mm, E 167mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 213.03 mm , Bore min. = 32 mm , Bore max. = 133.35 mm , L = 68.3 mm , C = 49.8 mm, E = 177 mm
