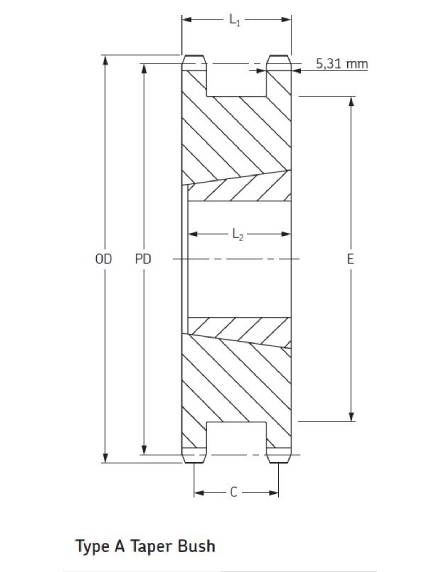

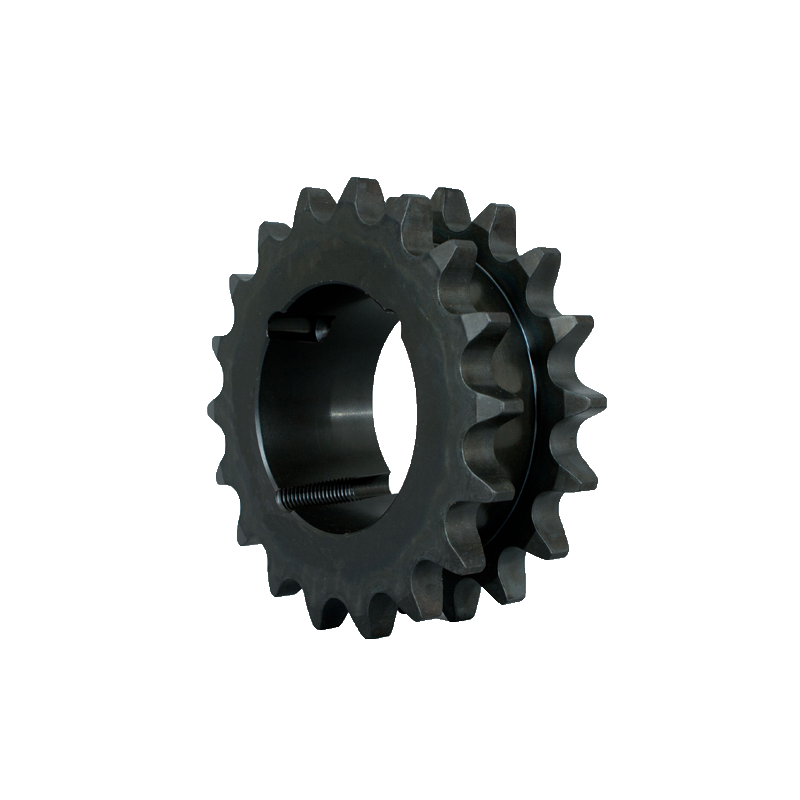

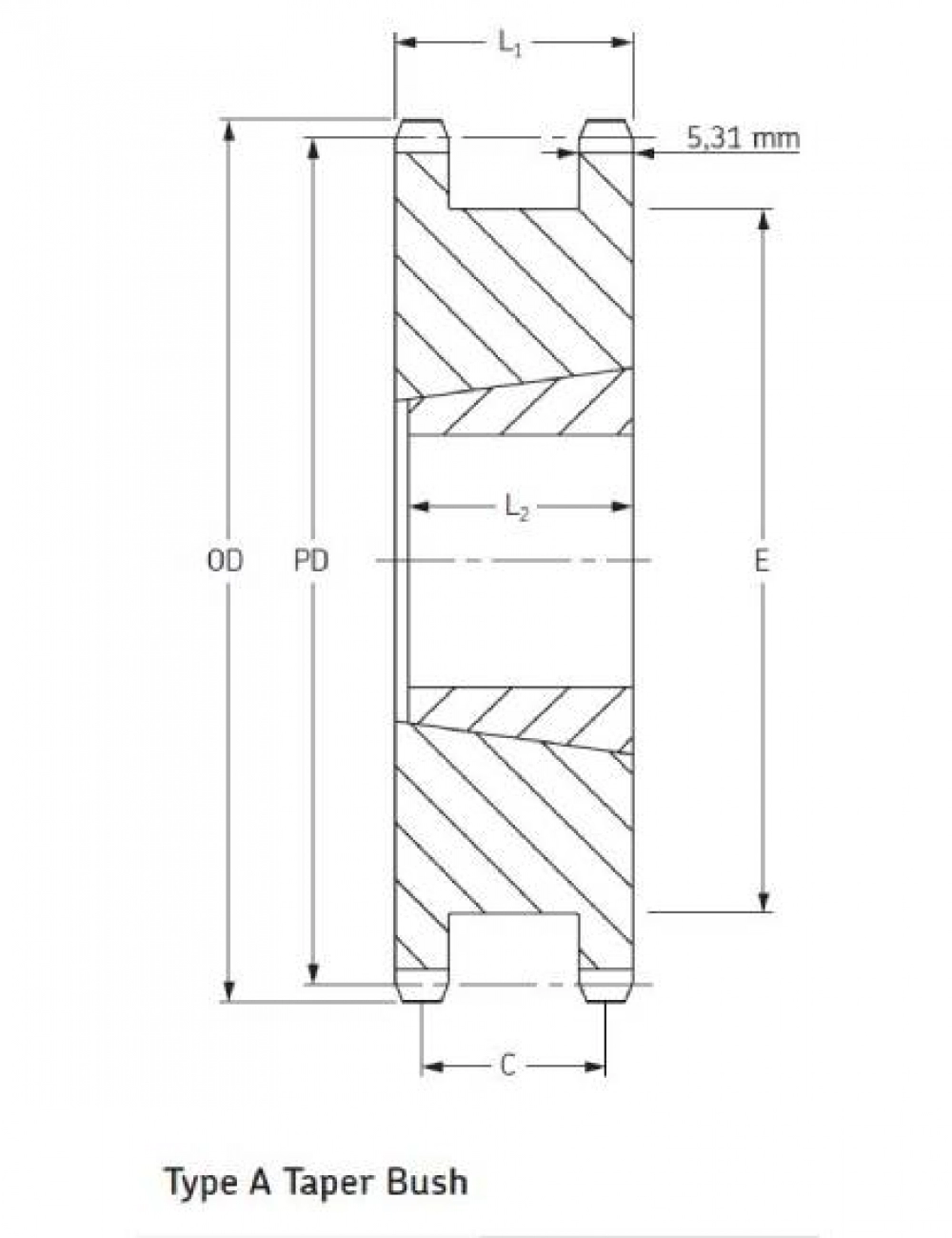

ISO PHS 12B - 1DSTBXX

No.Teeth = 12
DIMENSIONS :Pitch diameter = 73.61 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 49.2 mm , C = 38.10 mm, E = 53 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 79.59 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 49.2 mm , C = 38.10 mm, E = 59 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 85.62 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 49.2 mm , C = 38.10 mm, E = 65 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 91.61 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 49.2 mm , C = 38.10 mm, E = 72 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 97.63 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 49.2 mm , C =38.10 mm, E = 77 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 103.67 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 49.2 mm , C =38.10 mm, E = 82 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 109.71 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 49.2 mm , C =38.10 mm, E = 88 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 115.75 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 49.2 mm , C = 38.10 mm, E = 94 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 121.78 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 49.2 mm , C = 38.10 mm, E = 100 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 136.0 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 49.2 mm , C = 38.10 mm, E = 106 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 141.8 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 49.2 mm , C = 38.10 mm, E = 112 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 149.0 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 49.2 mm , C = 38.10 mm, E = 118 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 145.94 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 49.2 mm , C = 38.10 mm, E = 124 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 151.94 mm , Bore min. = 16 mm , Bore max. = 65 mm , L1= 49.2 mm , C =38.10 mm, E = 130 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 106.12 mm , Bore min. = 24 mm , Bore max. = 50 mm , L = 64.0 mm , C = 47.8 mm, E = 78 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 114.15 mm , Bore min. = 24 mm , Bore max. = 57 mm , L = 64.0 mm , C = 47.8 mm, E = 84 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 122.17 mm , Bore min. = 24 mm , Bore max. = 60 mm , L = 64.0 mm , C = 47.8 mm, E = 95 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 130.20 mm , Bore min. = 24 mm , Bore max. = 68 mm , L = 64.0 mm , C = 47.8 mm, E = 101 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 138.22 mm , Bore min. = 24 mm , Bore max. = 71 mm , L = 64.0 mm , C = 47.8 mm, E = 111 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 146.28 mm , Bore min. = 24 mm , Bore max. = 79 mm , L = 64.0 mm , C =47.8 mm, E = 117 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 154.33 mm , Bore min. = 24 mm , Bore max. = 82 mm , L = 64.0 mm , C = 47.8 mm, E = 127 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 162.38 mm , Bore min. = 24 mm , Bore max. = 88 mm , L = 64.0mm , C = 47.8 mm, E = 134 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 170.34 mm , Bore min. = 24 mm , Bore max. = 95 mm , L = 64.0 mm , C = 47.8 mm, E = 143 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 178.48 mm , Bore min. = 24 mm , Bore max. = 100 mm , L = 64.0 mm , C =47.8 mm, E = 151 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 186.59 mm , Bore min. = 24 mm , Bore max. = 107 mm , L = 64.0 mm , C = 47.8mm, E = 160 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 194.59 mm , Bore min. = 24 mm , Bore max. = 111 mm , L = 64.0 mm , C = 47.8 mm, E = 168 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 178.49 mm , Bore min. = 24 mm , Bore max. = 115 mm , L = 64.0 mm , C = 47.8 mm, E = 176 mm
