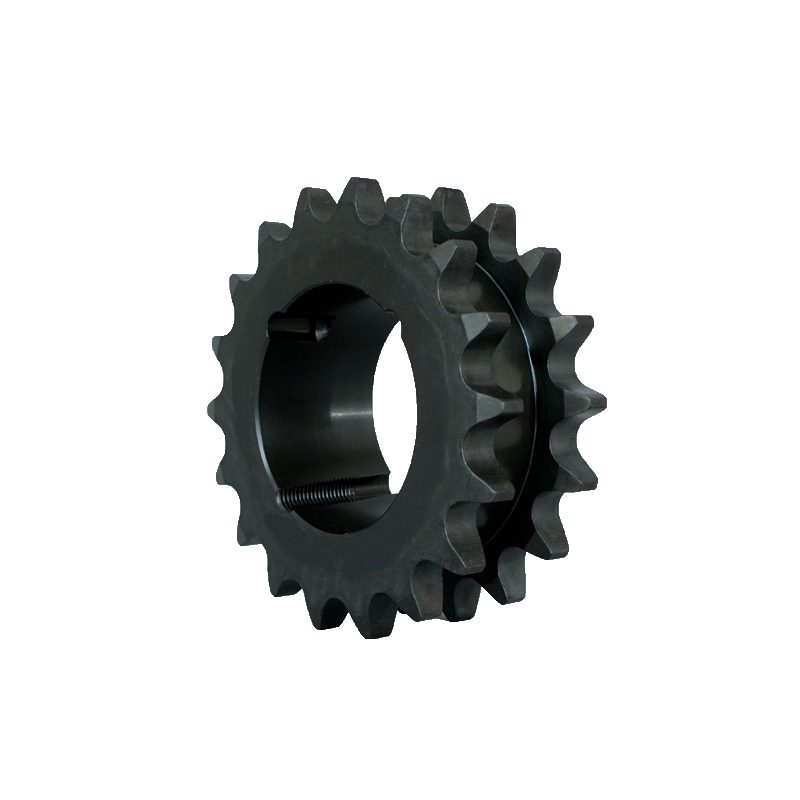

ISO PHS 10B - 1DSTBXX

No.Teeth = 12

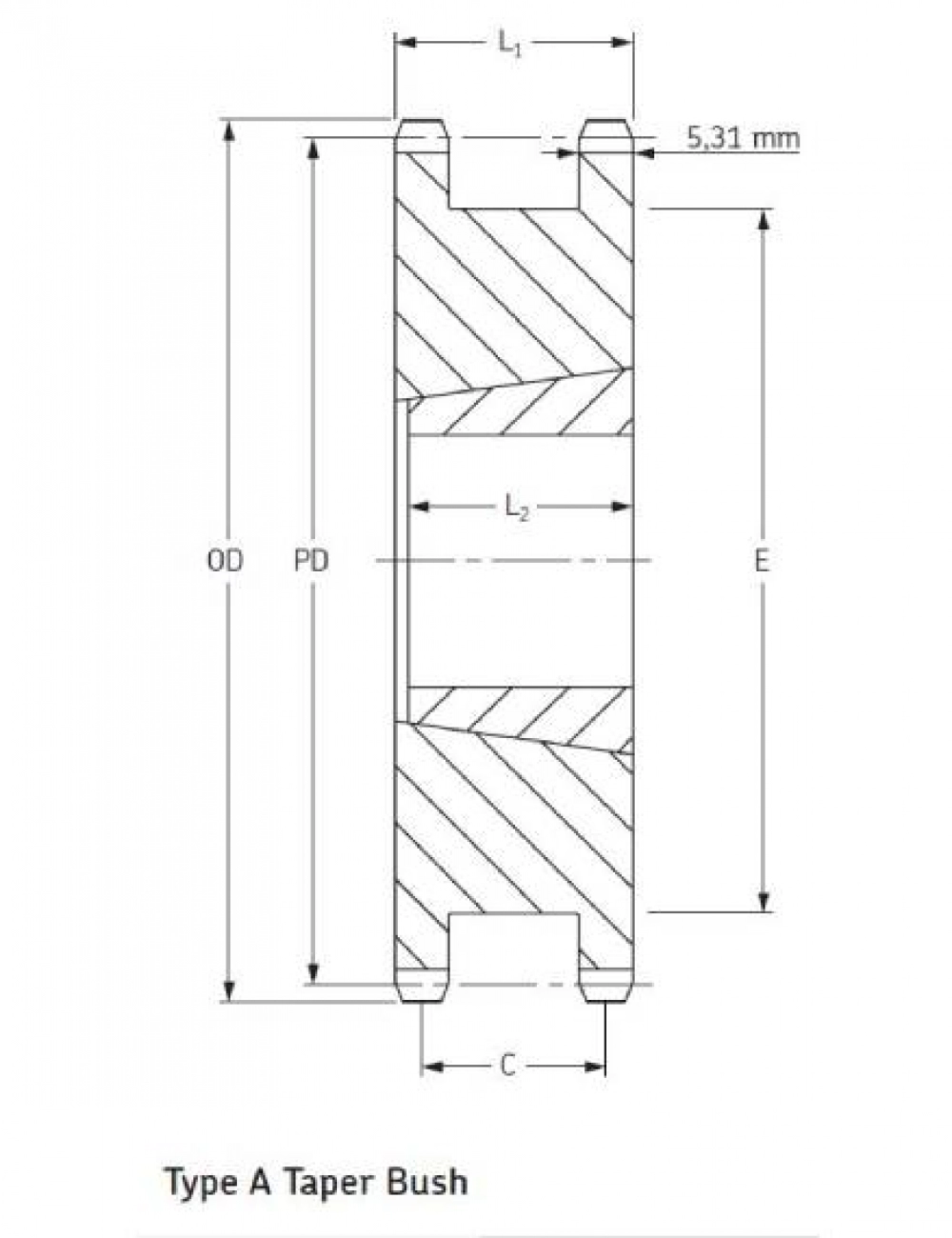

DIMENSIONS :Pitch diameter = 61.34 mm , Bore min. = 9 mm , Bore max. = 28 mm , L1=42.0 mm , C = 33.34 mm, E = 45 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 66.32 mm , Bore min. = 9 mm , Bore max. = 28 mm , L1= 42.0 mm , C = 33.34 mm, E = 50 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 71.34 mm , Bore min. = 9 mm , Bore max. = 28 mm , L1= 42.0 mm , C = 33.34 mm, E = 55 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 76.36 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 42.0 mm , C = 33.34 mm, E = 60 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 81.37 mm , Bore min. = 11 mm , Bore max. = 32 mm , L1= 42.0 mm , C = 33.34 mm, E = 65 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 89.39 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 42.0 mm , C = 33.34 mm, E = 68 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 91.42 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 42.0 mm , C = 33.34 mm, E = 73 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 96.42 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 42.0 mm , C = 33.34 mm, E = 78 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 101.49 mm , Bore min. = 14 mm , Bore max. = 42 mm , L1= 42.0 mm , C = 33.34 mm, E = 83 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 113.4 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 42.0 mm , C = 33.34mm, E = 88 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 111.55 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 42.0 mm , C = 33.34 mm, E = 93 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 123.4 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 42.0 mm , C = 33.34 mm, E = 98 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 128.3 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 42.0 mm , C = 33.34 mm, E = 103 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 126.66 mm , Bore min. = 14 mm , Bore max. = 50 mm , L1= 42.0 mm , C = 33.34 mm, E = 108 mm
