PHE XXXXTGVKIT

Size = 1020 ,Bore dimeter min. = 12 mm , Bore max. = 30 mm

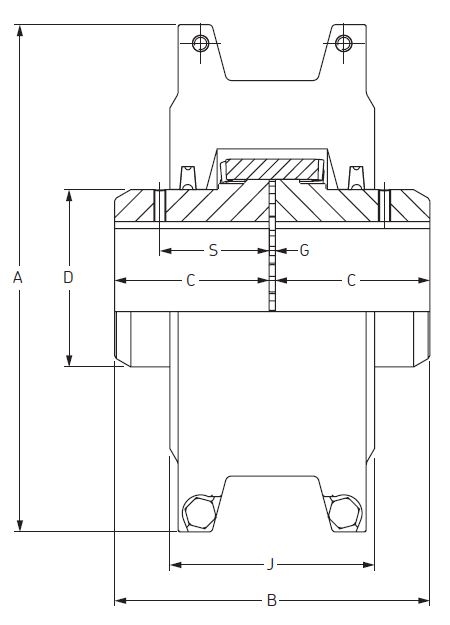

DIMENSIONS : A = 111 mm , B = 98.0 mm , C = 47.5 ,D = 39.7 mm , J = 24 mm ,S = 39 mm

Size = 1030 ,Bore dimeter min. = 12 mm , Bore max. = 36 mm
DIMENSIONS : A = 121 mm , B = 98.0 mm , C = 47.5 ,D = 49.2 mm , J = 25 mm ,S = 39 mm

Size = 1040 ,Bore dimeter min. = 12 mm , Bore max. = 44 mm
DIMENSIONS : A = 128 mm , B = 104.6 mm , C = 50.8 ,D = 57.1 mm , J = 26 mm ,S = 40 mm

Size = 1050 ,Bore dimeter min. = 12 mm , Bore max. = 50 mm
DIMENSIONS : A = 148 mm , B = 123.6 mm , C = 60.3 ,D = 66.7 mm , J = 31 mm ,S = 45 mm

Size = 1060 ,Bore dimeter min. = 19 mm , Bore max. = 57 mm
DIMENSIONS : A =162 mm , B = 130.0 mm , C = 63.5 ,D = 76.2 mm , J = 32 mm ,S = 52 mm

Size = 1070 ,Bore dimeter min. = 19 mm , Bore max. = 65 mm
DIMENSIONS : A = 173 mm , B = 155.4 mm , C = 76.2 ,D = 87.3 mm , J = 34 mm ,S = 54 mm

Size = 1080 ,Bore dimeter min. = 27 mm , Bore max. = 79 mm
DIMENSIONS : A = 200 mm , B = 180.8 mm , C = 88.9 ,D = 104.8 mm , J = 44 mm ,S = 65 mm

Size = 1090 ,Bore dimeter min. = 27 mm , Bore max. = 95 mm
DIMENSIONS : A = 232 mm , B = 199.8 mm , C = 98.4 ,D = 123.8 mm , J = 48 mm ,S = 72 mm

Size = 1100 ,Bore dimeter min. = 41 mm , Bore max. = 107 mm
DIMENSIONS : A = 267 mm , B = 245.7 mm , C = 120.6 ,D = 142.0 mm , J = 60 mm

Size = 1110 ,Bore dimeter min. = 41 mm , Bore max. = 117 mm
DIMENSIONS : A = 286 mm , B = 258.5 mm , C = 127.0 ,D = 160.3 mm , J = 64 mm

Size = 1120 ,Bore dimeter min. = 60 mm , Bore max. = 136 mm
DIMENSIONS : A = 319 mm , B = 304.4 mm , C = 149.2 ,D = 179.4 mm , J = 73 mm

Size = 1130 ,Bore dimeter min. = 66 mm , Bore max. = 165 mm
DIMENSIONS : A = 378 mm , B = 329.8 mm , C = 161.9 ,D = 217.5 mm , J = 75 mm

Size = 1140 ,Bore dimeter min. = 66 mm , Bore max. = 184 mm
DIMENSIONS : A = 416 mm , B = 371.6 mm , C = 182.8 ,D = 254.0 mm , J = 78 mm

Size = 1150 ,Bore dimeter min. = 108 mm , Bore max. = 203 mm
DIMENSIONS : A = 476 mm , B = 371.8 mm , C = 182.9 ,D = 269.2 mm , J = 107 mm

Size = 1160 ,Bore dimeter min. = 120 mm , Bore max. = 228 mm
DIMENSIONS : A = 533 mm , B = 402.2 mm , C = 198.1 ,D = 304.8 mm , J = 114 mm

Size = 1170 ,Bore dimeter min. = 133 mm , Bore max. = 279 mm
DIMENSIONS : A = 584 mm , B = 437.8 mm , C = 215.9 ,D = 355.6 mm , J = 119 mm

Size = 1180 ,Bore dimeter min. = 152 mm , Bore max. = 311 mm
DIMENSIONS : A = 630 mm , B = 483.6 mm , C = 238.8 ,D = 393.7 mm , J = 130 mm

Size = 1190 ,Bore dimeter min. = 152 mm , Bore max. = 339 mm
DIMENSIONS : A = 685 mm , B = 524.2 mm , C = 259.1 ,D = 436.9 mm , J = 135 mm

Size = 1200 ,Bore dimeter min. = 177 mm , Bore max. = 361 mm
DIMENSIONS : A = 737 mm , B = 564.8 mm , C = 279.4 ,D = 497.8 mm , J = 145 mm
