PHE FRC XXXRSB

Size = 70 ,Bore dimeter min. = 10 mm , Bore max. = 32 mm

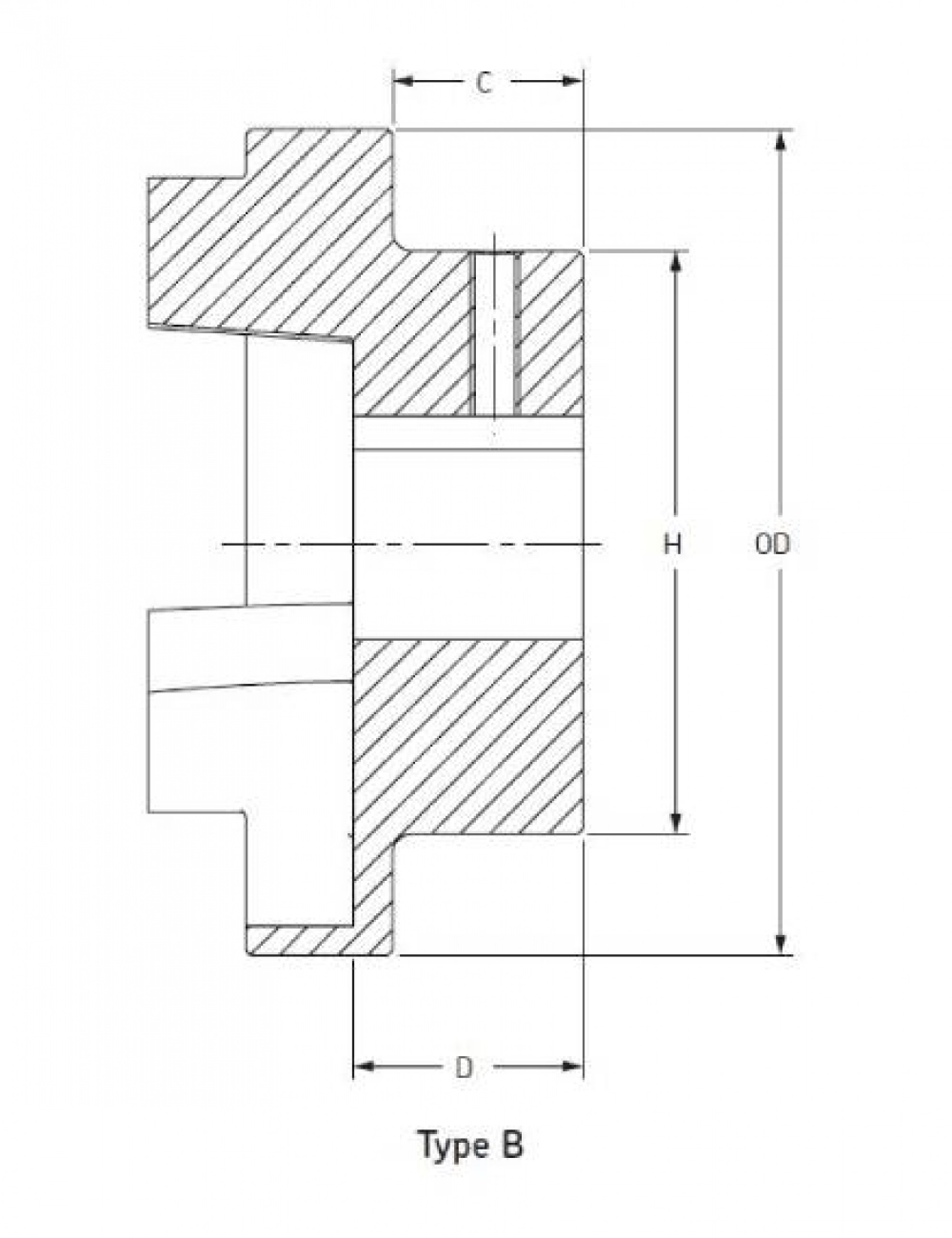

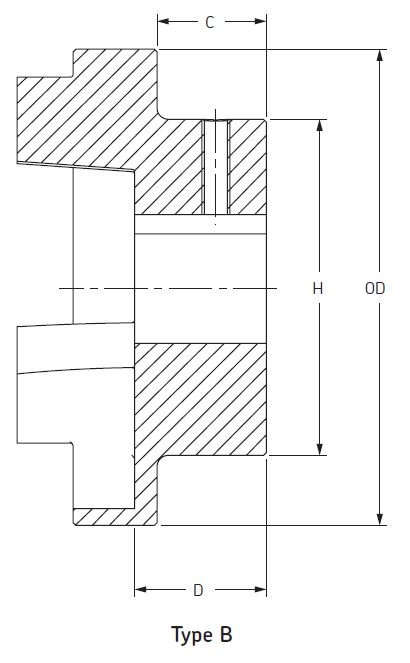

DIMENSIONS : OD = 69 mm , H = 60 mm , C = 20 ,D = 25.8 mm

Size = 90 ,Bore dimeter min. = 10 mm , Bore max. = 38 mm
DIMENSIONS : OD = 85 mm , H = 70 mm , C = 26 ,D = 30.0 mm

Size = 110 ,Bore dimeter min. = 10 mm , Bore max. = 55 mm
DIMENSIONS : OD = 112 mm , H = 100 mm , C = 37 ,D = 45.3 mm

Size = 130 ,Bore dimeter min. = 20 mm , Bore max. =60 mm
DIMENSIONS : OD = 130 mm , H = 105 mm , C = 39 ,D = 47.5 mm

Size = 150 ,Bore dimeter min. = 28 mm , Bore max. = 70 mm
DIMENSIONS : OD = 150 mm , H = 115 mm , C = 46 ,D = 60.0 mm

Size = 180 ,Bore dimeter min. = 28 mm , Bore max. = 80 mm
DIMENSIONS : OD = 180 mm , H = 125 mm , C = 58 ,D = 70.0 mm

Size = 230 ,Bore dimeter min. = 45 mm , Bore max. = 100 mm
DIMENSIONS : OD = 225 mm , H = 155 mm , C = 77 ,D = 90.0 mm

Size = 280 ,Bore dimeter min. = 45 mm , Bore max. = 100 mm
DIMENSIONS : OD = 275 mm , H = 206 mm , C = 77 ,D = 105.5 mm
