PHE F XXX RSBFLG

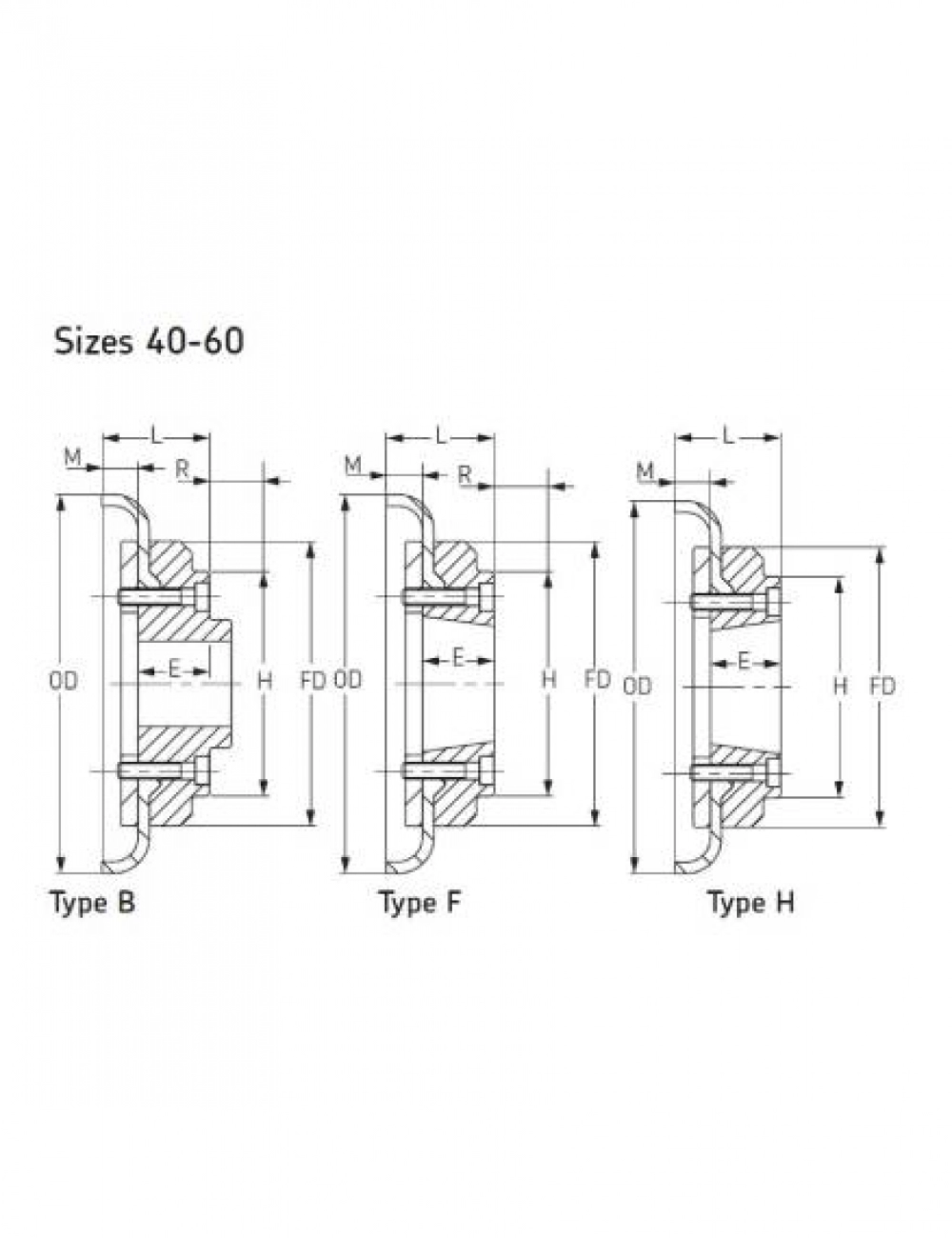

Size = 40 , Types = B , Bore max. = 30 mm
DIMENSIONS : L = 33.0 mm , E = 22 mm , Screw over key = M5 , OD = 104 mm , FD = 82 mm

Size = 50 , Types = B , Bore max. = 38 mm
DIMENSIONS : L = 45.0 mm , E = 32 mm , Screw over key = M5 , OD = 133 mm , FD = 100 mm, H = 79 mm

Size = 60 , Types = B , Bore max. = 45 mm
DIMENSIONS : L = 47.0 mm , E = 35 mm , Screw over key = M10 ,OD = 187 mm , FD = 142 mm, H = 80 mm

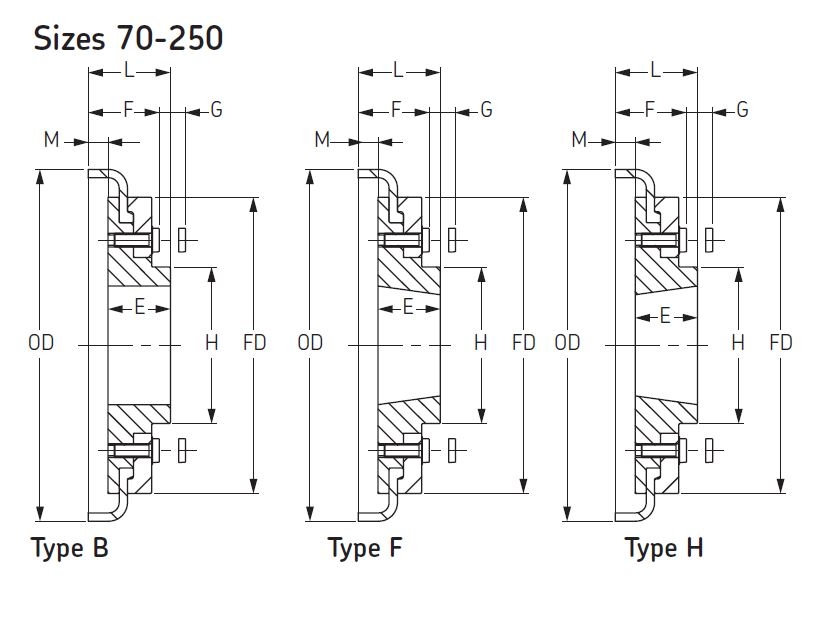

Size = 70 , Types = B , Bore max. = 60 mm
DIMENSIONS : L = 47.0 mm , E = 35 mm , Screw over key = M10 ,OD = 187 mm , FD = 142 mm, H = 80 mm

Size = 80 , Types = B , Bore max. = 63 mm
DIMENSIONS : L = 55.0 mm , E = 42 mm , Screw over key = M10 ,OD = 211 mm , FD = 165 mm, H = 98 mm

Size = 90 , Types = B , Bore max. = 75 mm
DIMENSIONS : L = 62.5 mm , E = 49 mm , Screw over key = M12 ,OD = 235 mm , FD = 187 mm, H = 60 mm

Size = 100 , Types = B , Bore max. = 80 mm
DIMENSIONS : L = 69.5 mm , E = 56 mm , Screw over key = M12 ,OD = 254 mm , FD = 214 mm, H = 125 mm

Size = 110 , Types = B , Bore max. = 90 mm
DIMENSIONS : L = 75.5 mm , E = 63 mm , Screw over key = M12 ,OD = 279 mm , FD = 232 mm, H = 128 mm

Size = 120 , Types = B , Bore max. = 100 mm
DIMENSIONS : L = 84.5 mm , E = 70 mm , Screw over key = M16 ,OD = 314 mm , FD = 262 mm, H = 143 mm

Size = 140 , Types = B , Bore max. = 125 mm
DIMENSIONS : L = 110.5 mm , E = 94 mm , Screw over key = M20 ,OD = 3.59 mm , FD = 312.5 mm, H = 180 mm

Size = 160 , Types = B , Bore max. = 140 mm
DIMENSIONS : L = 117.0 mm , E = 102 mm , Screw over key = M20 ,OD = 402 mm , FD = 348 mm, H = 197 mm

Size = 180 , Types = B , Bore max. = 150 mm
DIMENSIONS : L = 137.0 mm , E = 114 mm , Screw over key = M20 ,OD = 470 mm , FD = 396 mm, H = 205 mm

Size = 200 , Types = B , Bore max. = 150 mm
DIMENSIONS : L = 138.0 mm , E = 114 mm , Screw over key M20 = ,OD = 508 mm , FD = 432 mm, H = 205 mm

Size = 220 , Types = B , Bore max. = 160 mm
DIMENSIONS : L = 154.5 mm , E = 127 mm , Screw over key = M20 ,OD = 562 mm , FD = 472 mm, H = 224 mm

Size = 250 , Types = B , Bore max. = 190 mm
DIMENSIONS : L = 161.5 mm , E = 132 mm , Screw over key = M20 ,OD = 628 mm , FD = 532 mm, H = 254 mm
