Size IS XXX

Bore dimeter min. = 15.9 mm , Bore max. = 23.8 mm

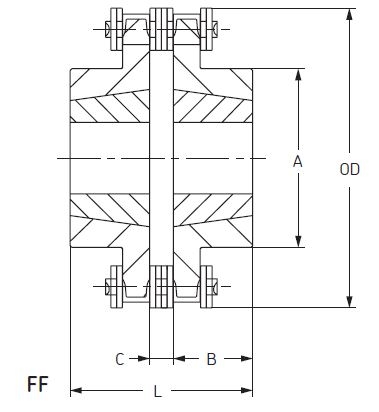

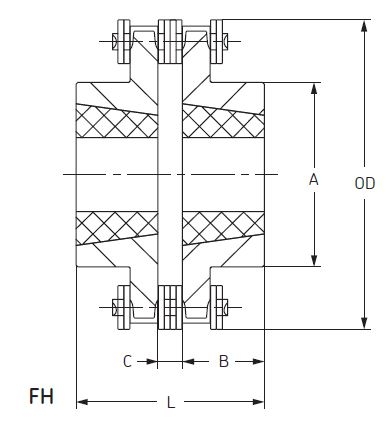

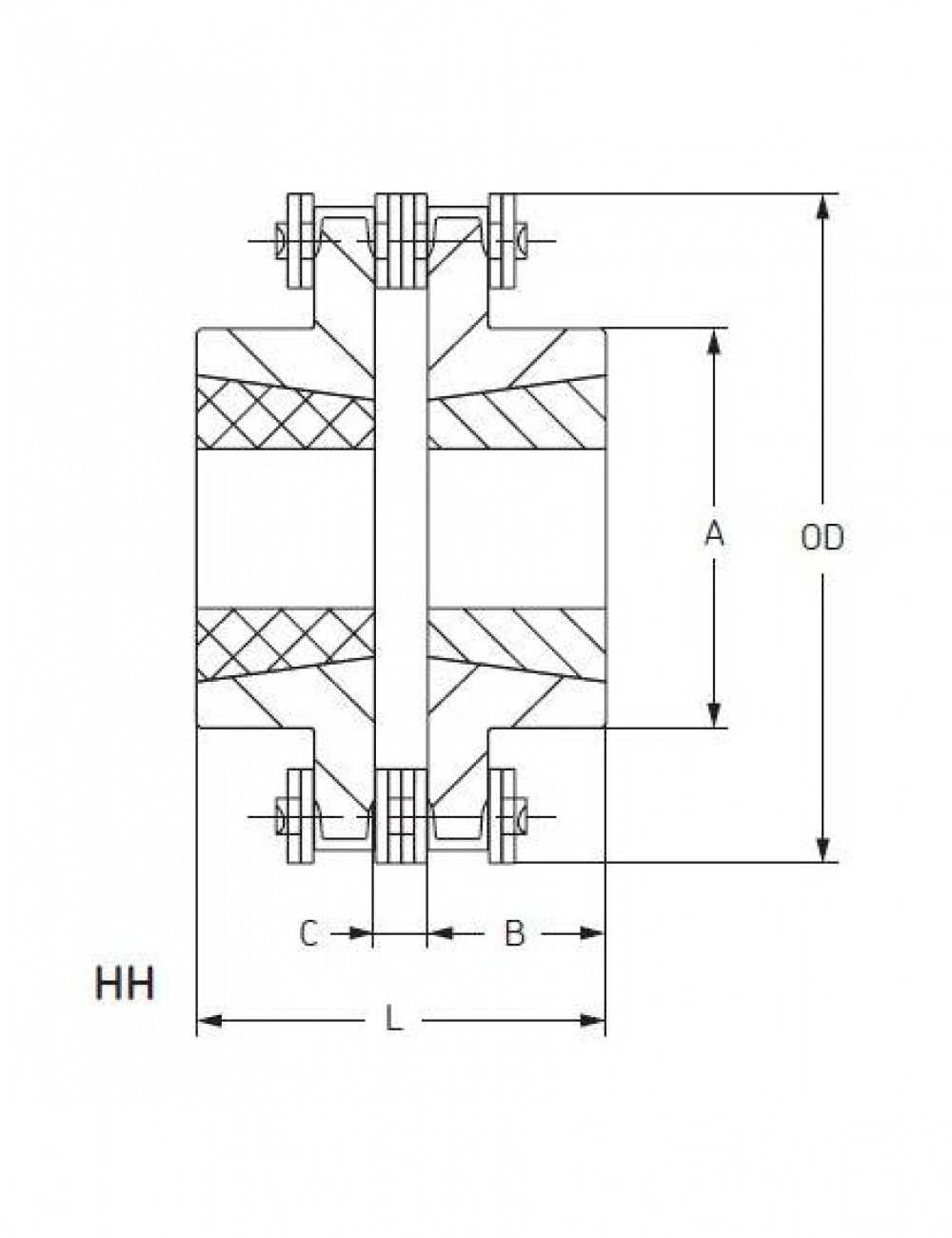

DIMENSIONS : A = 50.0 mm , B = 28.96 mm , C = 7.1 , L =65.0 mm , OD = 77.0 mm

Bore dimeter min. = 15.9 mm , Bore max. = 42.9 mm
DIMENSIONS : A = 63.5 mm , B = 36.88 mm , C = 9.5 ,L = 83.3 mm , OD = 96.0 mm

Bore dimeter min. = 19.1 mm , Bore max. = 50.8 mm
DIMENSIONS : A = 75.4 mm , B = 43.26 mm , C = 9.5 ,L = 87.1 mm , OD = 106.4 mm

Bore dimeter min. = 25.4 mm , Bore max. = 61.9 mm
DIMENSIONS : A = 88.9 mm , B = 47.60 mm , C = 11.1 ,L = 106.3 mm , OD = 127.0 mm

Bore dimeter min. = 28.6 mm , Bore max. = 69.9 mm
DIMENSIONS : A = 98.4 mm , B = 50.80 mm , C = 11.11 ,L = 112.7 mm , OD = 139.7 mm

Bore dimeter min. = 28.6 mm , Bore max. = 76.2 mm
DIMENSIONS : A = 114.3 mm , B = 54.00 mm , C = 11.1 ,L = 119.1 mm , OD = 151.2 mm

Bore dimeter min. = 28.6 mm , Bore max. = 79.4 mm
DIMENSIONS : A = 115.9 mm , B = 60.70 mm , C = 14.7 ,L = 136.1 mm , OD = 169.1 mm

Bore dimeter min. = 38.1 mm , Bore max. = 90.5 mm
DIMENSIONS : A = 136.5 mm , B = 66.10 mm , C = 14.7 ,L = 146.9 mm , OD = 185.3 mm

Bore dimeter min. = 38.1 mm , Bore max. = 98.4 mm
DIMENSIONS : A = 144.5 mm , B = 70.90 mm , C = 18.3 ,L = 160.1 mm , OD = 211.5 mm

Bore dimeter min. = 38.1 mm , Bore max. = 117.5 mm
DIMENSIONS : A = 170.7 mm , B = 79.80 mm , C = 18.3 ,L = 177.9 mm , OD = 231.8 mm

Bore dimeter min. = 50.8 mm , Bore max. = 119.1 mm
DIMENSIONS : A = 171.5 mm , B = 88.30 mm , C = 21.8 ,L = 198.4 mm , OD =254.0 mm

Bore dimeter min. = 50.5 mm , Bore max. = 155.6 mm
DIMENSIONS : A = 222.3 mm , B = 102.10 mm , C =21.8 ,L = 226.0 mm , OD = 302.0 mm
