ชื่อรุ่น :

PHC XXXSHH - 3

แบรนด์

SKF

รายละเอียด :

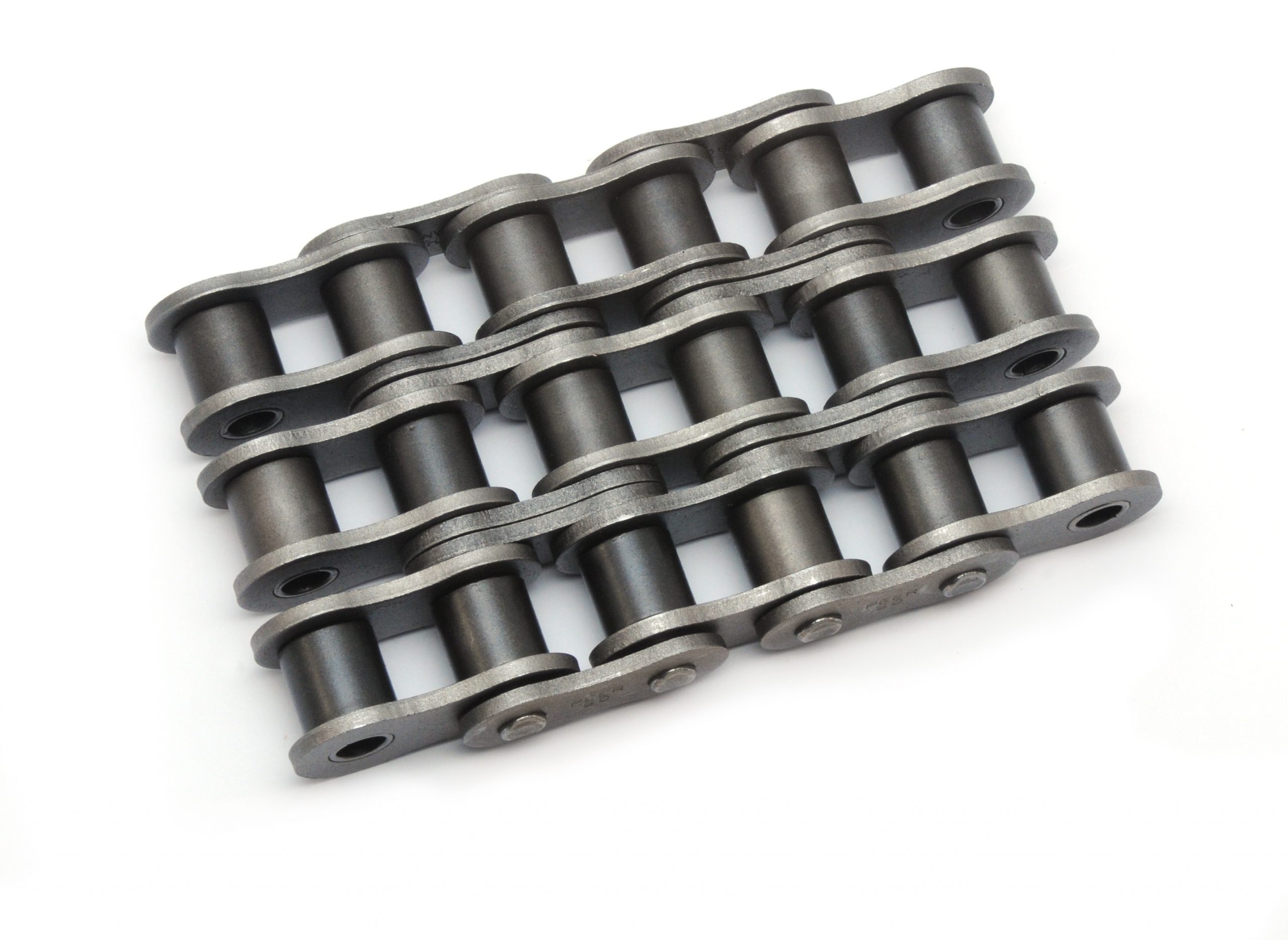

โซ่ส่งกำลังสามชั้น PHH Super Heavy Standard Lenghts are 10 ft. and 5 m.

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHC 80SHH - 3
Model description

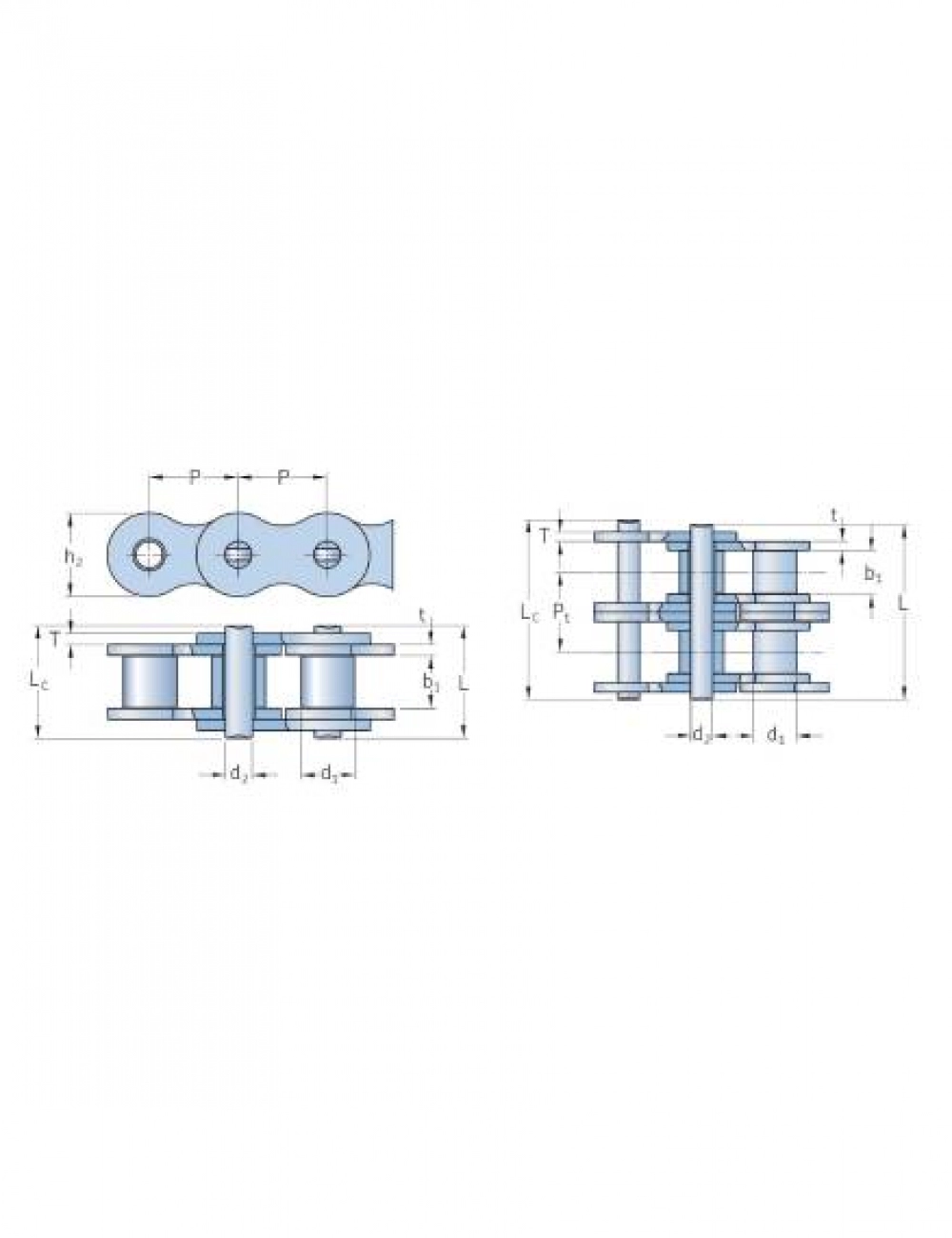

DIAMETER : Pitch (P) = 25,40 mm , h2 = 24,1 mm , Roller ( d1) max. = 15,88 mm, Inner plates (b1) = 15,75 mm , Pin ( Lc) = 104,6 mm
Price
Model
PHC 100SHH - 3
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30,1 mm , Roller ( d1) max. = 19,05 mm, Inner plates (b1) = 18,90 mm , Pin ( Lc) = 125,1 mm
Price
Model
PHC 120SHH - 3
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 36,2 mm , Roller ( d1) max. = 22,23 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 155,2 mm
Price
Model
PHC 140SHH - 3
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 42,2 mm , Roller ( d1) max. = 25,40 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 166,6 mm
Price
Model
PHC 160SHH - 3
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 48,2 mm , Roller ( d1) max. = 28,58 mm, Inner plates (b1) = 31,55 mm , Pin ( Lc) = 196,8 mm
Price
Model
PHC 200SHH - 3
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60,3 mm , Roller ( d1) max. = 39,68 mm, Inner plates (b1) = 37,85 mm , Pin ( Lc) = 250,1 mm
Price
