ชื่อรุ่น :

PHC XXXSH - 1

แบรนด์

SKF

รายละเอียด :

โซ่ส่งกำลังชั้นเดียว ANSI Heavy duty Standard Lenghts are 10 ft. and 5 m.

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHC 25SH - 1
Model description

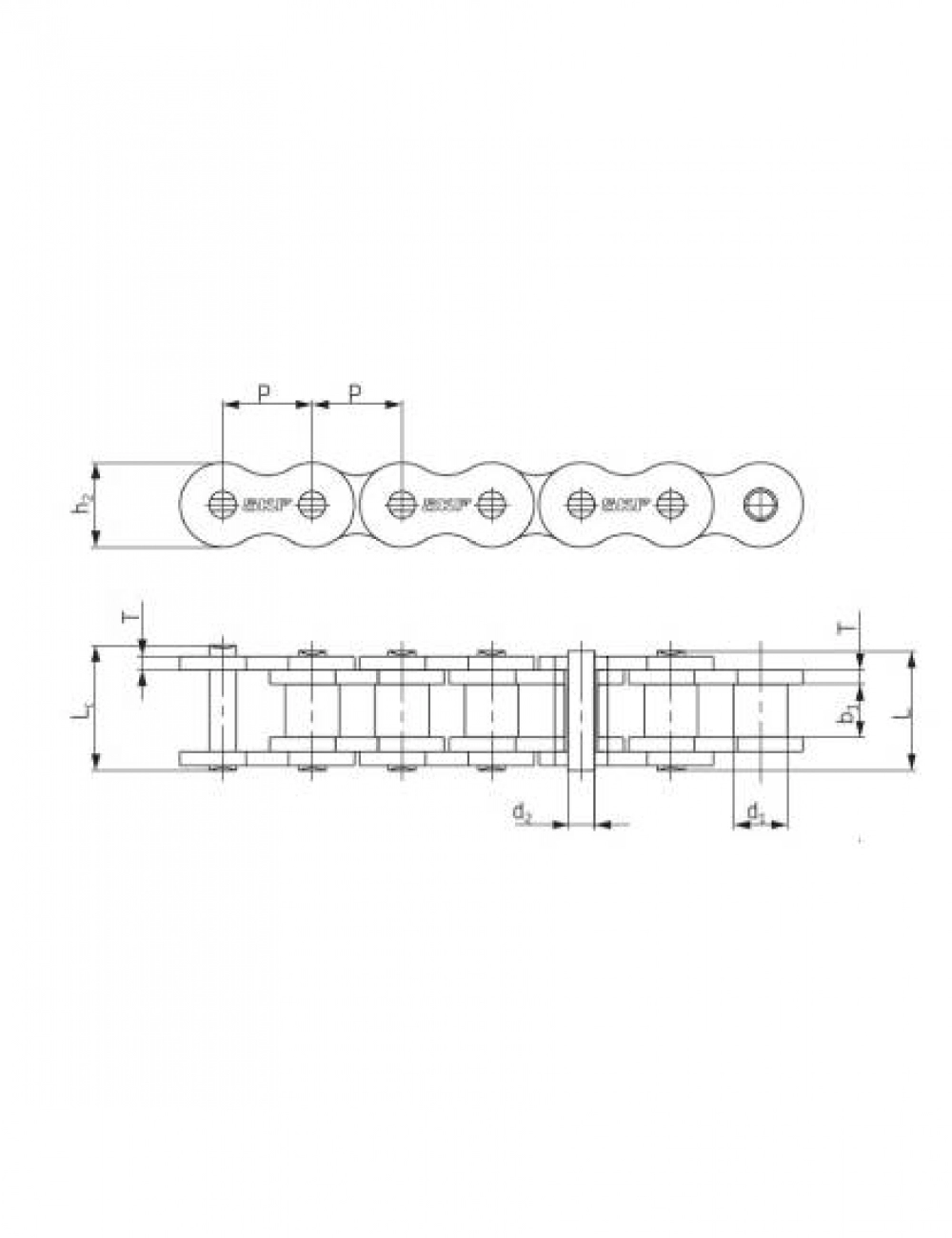

DIAMETER : Pitch (P) = 6,35 mm , h2 = 6 mm , Roller ( d1) max. = 3,30 mm, Inner plates (b1) = 3,18 mm , Pin ( Lc) = - mm
Price
Model
PHC 35SH - 1
Model description
DIAMETER : Pitch (P) = 9,53 mm , h2 = 9 mm , Roller ( d1) max. = 5,08 mm, Inner plates (b1) = 4,77 mm , Pin ( Lc) = 14,3 mm
Price
Model
PHC 40SH - 1
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 12 mm , Roller ( d1) max. = 7,95 mm, Inner plates (b1) = 7,85 mm , Pin ( Lc) = 19,9 mm
Price
Model
PHC 50SH - 1
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 15,09 mm , Roller ( d1) max. = 10,16 mm, Inner plates (b1) = 9,40 mm , Pin ( Lc) = 23,4 mm
Price
Model
PHC 60SH - 1
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 18 mm , Roller ( d1) max. = 11,91 mm, Inner plates (b1) = 12,57 mm , Pin ( Lc) = 31,6 mm
Price
Model
PHC 80SH - 1
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 24 mm , Roller ( d1) max. = 15,88 mm, Inner plates (b1) = 15,75 mm , Pin ( Lc) = 37,7 mm
Price
Model
PHC 100SH - 1
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 30 mm , Roller ( d1) max. = 19,05 mm, Inner plates (b1) = 18,90 mm , Pin ( Lc) = 46,9 mm
Price
Model
PHC 120SH - 1
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 35,70 mm , Roller ( d1) max. = 22,23 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 57,5 mm
Price
Model
PHC 140SH - 1
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 41 mm , Roller ( d1) max. = 25,40 mm, Inner plates (b1) = 25,22 mm , Pin ( Lc) = 62,2 mm
Price
Model
PHC 160SH - 1
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 47,80 mm , Roller ( d1) max. = 28,58 mm, Inner plates (b1) = 31,55 mm , Pin ( Lc) = 73 mm
Price
Model
PHC 200SH - 1
Model description
DIAMETER : Pitch (P) = 63,50 mm , h2 = 60 mm , Roller ( d1) max. = 39,68 mm, Inner plates (b1) = 37,85 mm , Pin ( Lc) = 93,5 mm
Price
