ชื่อรุ่น :

PHC XXB - 3

แบรนด์

SKF

รายละเอียด :

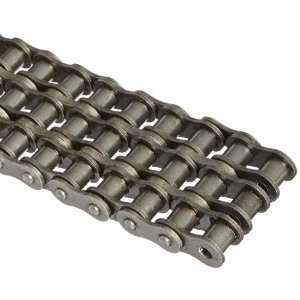

โซ่ส่งกำลังสามชั้น BS Standard Lenghts are 10 ft. and 5 m.

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHC 05B - 3
Model description

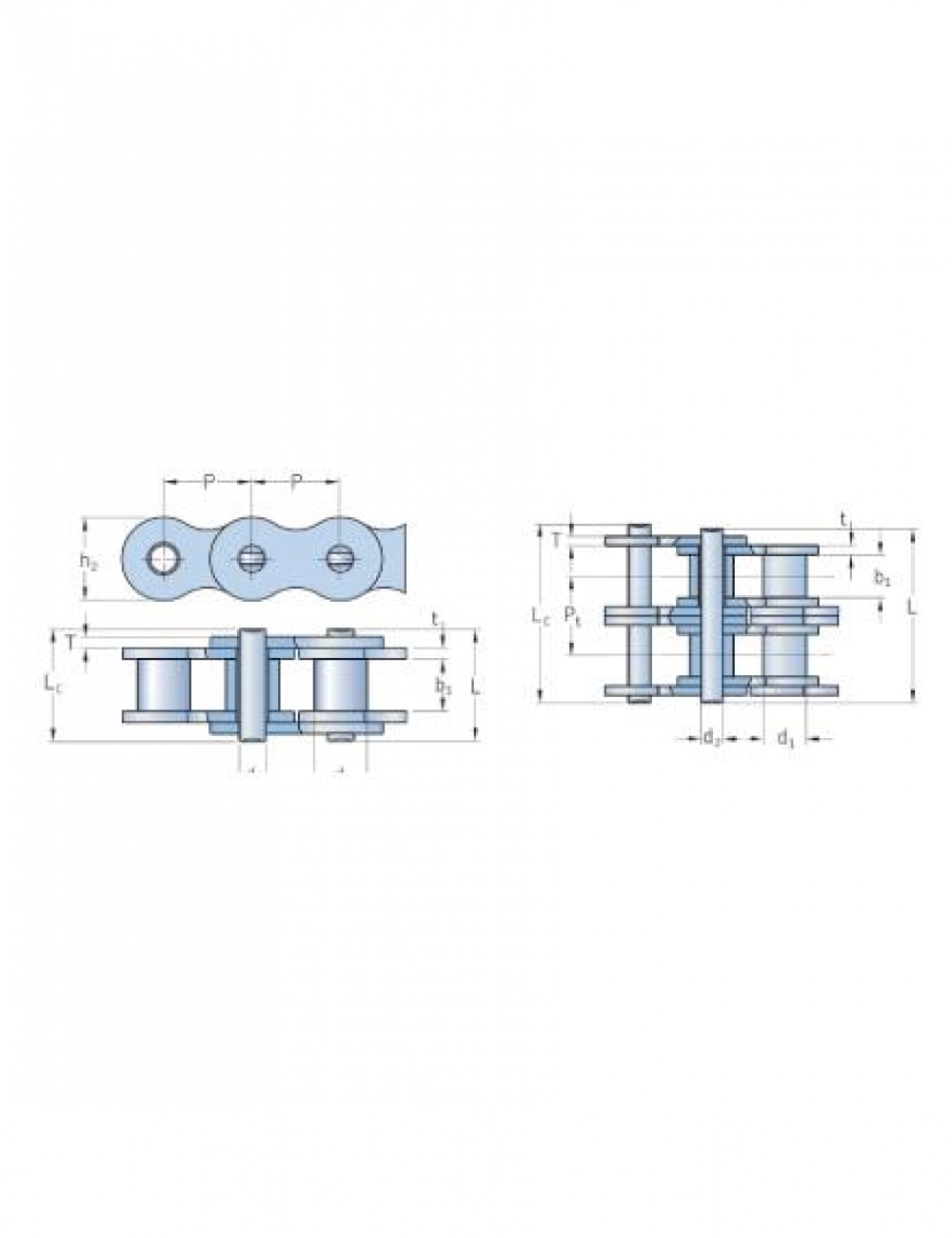

DIAMETER : Pitch (P) = 8.00 mm , h2 =7.10 mm , Roller ( d1) max. = 5.00 mm, Inner plates (b1) = 3.00 mm , Pin ( Lc) = 20.2 mm
Price
Model
PHC 06B - 3
Model description
DIAMETER : Pitch (P) = 9.53 mm , h2 = 8.20 mm , Roller ( d1) max. = 6.53 mm, Inner plates (b1) = 5.72 mm , Pin ( Lc) = 34.6 mm
Price
Model
PHC 08B - 3
Model description
DIAMETER : Pitch (P) = 12.70 mm , h2 = 11.80 mm , Roller ( d1) max. = 8.51 mm, Inner plates (b1) = 7.75 mm , Pin ( Lc) = 46.1 mm
Price
Model
PHC 10B - 3
Model description
DIAMETER : Pitch (P) = 15.88 mm , h2 = 14.70 mm , Roller ( d1) max. =10.16 mm, Inner plates (b1) = 9.65 mm , Pin ( Lc) = 54.1 mm
Price
Model
PHC 12B - 3
Model description
DIAMETER : Pitch (P) = 19.05 mm , h2 = 16.00 mm , Roller ( d1) max. = 12.07 mm, Inner plates (b1) = 11.68 mm , Pin ( Lc) = 63.1 mm
Price
Model
PHC 16B - 3
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 21.00 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 17.02 mm , Pin ( Lc) = 101.2 mm
Price
Model
PHC 20B - 3
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 26.40mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) =19.56 mm , Pin ( Lc) = 117.9 mm
Price
Model
PHC 24B - 3
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 33.20 mm , Roller ( d1) max. = 25.40 mm, Inner plates (b1) = 25.40 mm , Pin ( Lc) = 154.6 mm
Price
Model
PHC 28B - 3
Model description
DIAMETER : Pitch (P) = 44.45 mm , h2 = 36.70 mm , Roller ( d1) max. = 27.94 mm, Inner plates (b1) = 30.99 mm , Pin ( Lc) = 188.7 mm
Price
Model
PHC 32B-3
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 42.00 mm , Roller ( d1) max. = 29.21 mm, Inner plates (b1) = 30.99 mm , Pin ( Lc) = 188.2 mm
Price
Model
PHC 40B-3
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 52.96 mm , Roller ( d1) max. = 39.37 mm, Inner plates (b1) = 38.10 mm , Pin ( Lc) = 233.8 mm
Price
Model
PHC 48B-3
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 63.80 mm , Roller ( d1) max. = 48.26 mm, Inner plates (b1) = 45.72 mm , Pin ( Lc) = 289.4 mm
Price
Model
PHC 56B-3
Model description
DIAMETER : Pitch (P) = 88.90 mm , h2 = 77.80 mm , Roller ( d1) max. = 53.98 mm, Inner plates (b1) = 53.34 mm , Pin ( Lc) = 336.2 mm
Price
Model
PHC 64B-3
Model description
DIAMETER : Pitch (P) = 101.60 mm , h2 = 90.17 mm , Roller ( d1) max. = 63.50 mm, Inner plates (b1) =60.96 mm , Pin ( Lc) = 378.3 mm
Price
Model
PHC 72B-3
Model description
DIAMETER : Pitch (P) = 114.30 mm , h2 = 103.60 mm , Roller ( d1) max. = 72.39 mm, Inner plates (b1) = 68.58 mm , Pin ( Lc) = 429.0 mm
Price
สอบถามเพิ่มเติม
บริษัท ทีพีเอส แบริ่ง แอนด์ โซลูชั่นส์ จำกัด tpsbearing 087-549-6591 sales@tpsbearing.com
