ชื่อรุ่น :

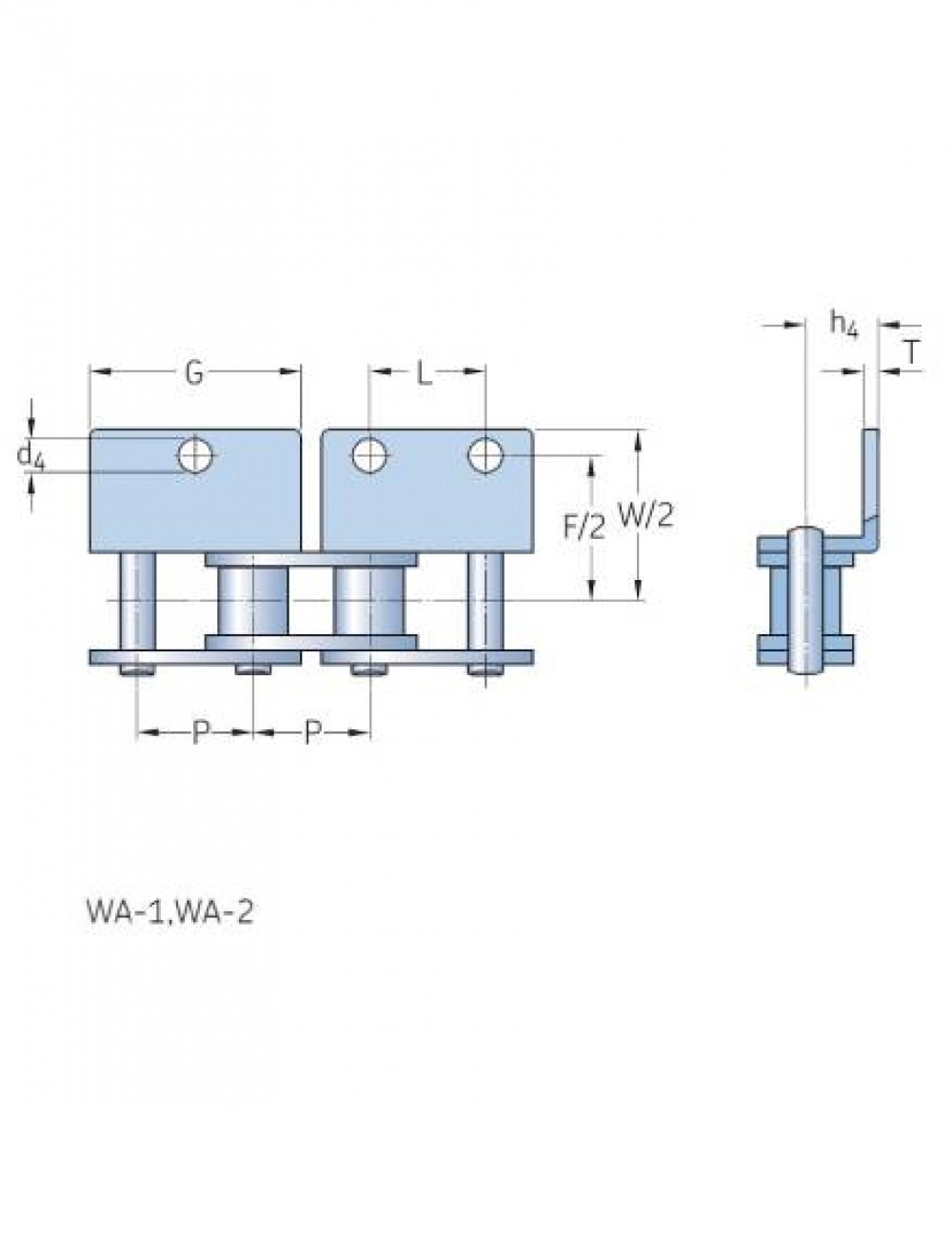

Attachments (WA - 1, WA - 2 )

แบรนด์

SKF

รายละเอียด :

WA1 คือ เจาะ 1 รู

WA2 คือ เจาะ 2 รู

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHC 35 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 9.53 mm , G = 17.32 mm , T = 1.30 mm , d4 =2.80 mm
Price
Model
PHC 40 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 23.00 mm , T = 1.50 mm , d4 = 3.40 mm
Price
Model
PHC 41 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 22.30 mm , T = 1.30 mm , d4 = 4.85 mm
Price
Model
PHC 50 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 15.88 mm , G = 28.80 mm , T = 2.03 mm , d4 = 5.50 mm
Price
Model
PHC 60 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 19.05 mm , G = 34.65 mm , T = 2.42 mm , d4 = 5.50 mm
Price
Model
PHC 80 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 45.90 mm , T = 3.25 mm , d4 = 6.80 mm
Price
Model
PHC 100-1 Lx WAx
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 57.65 mm , T = 4.00 mm , d4 = 9.20 mm
Price
Model
PHC 120 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 69.30 mm , T = 4.80 mm , d4 = 9.80 mm
Price
Model
PHC 140 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 44.45 mm , G = 80.45 mm , T = 5.60 mm , d4 =11.40 mm
Price
Model
PHC 160-1 Lx WAx
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 92.00 mm , T = 6.40 mm , d4 = 13.10 mm
Price
Model
PHC 200 -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 63.50 mm , G =115.50 mm , T = 8.00 mm , d4 = 16.30 mm
Price
Model
PHC 08B -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 24.00 mm , T = 1.60 mm , d4 = 4.30 mm
Price
Model
PHC 10B -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 15.88 mm , G = 29.58 mm , T = 1.70 mm , d4 = 5.30 mm
Price
Model
PHC 12B-1 Lx WAx
Model description
DIAMETER : Pitch (P) = 19.05 mm , G = 34.05 mm , T = 1.85 mm , d4 =6.40 mm
Price
Model
PHC 16B-1 Lx WAx
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 46.40 mm , T = 3.10 mm , d4 = 6.40 mm
Price
Model
PHC 20B -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 58.10 mm , T = 3.50 mm , d4 = 9.00 mm
Price
Model
PHC 24B -1 Lx WAx
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 71.30 mm , T = 4.80 mm , d4 = 10.50 mm
Price
Model
PHC 28B-1 Lx WAx
Model description
DIAMETER : Pitch (P) = 44.45 mm , G = 81.10 mm , T = 6.00 mm , d4 =13.10 mm
Price
Model
PHC 32B-1 Lx WAx
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 92.80 mm , T = 6.00 mm , d4 =13.10 mm
Price
