PRODUCT
![]()
ชื่อรุ่น :

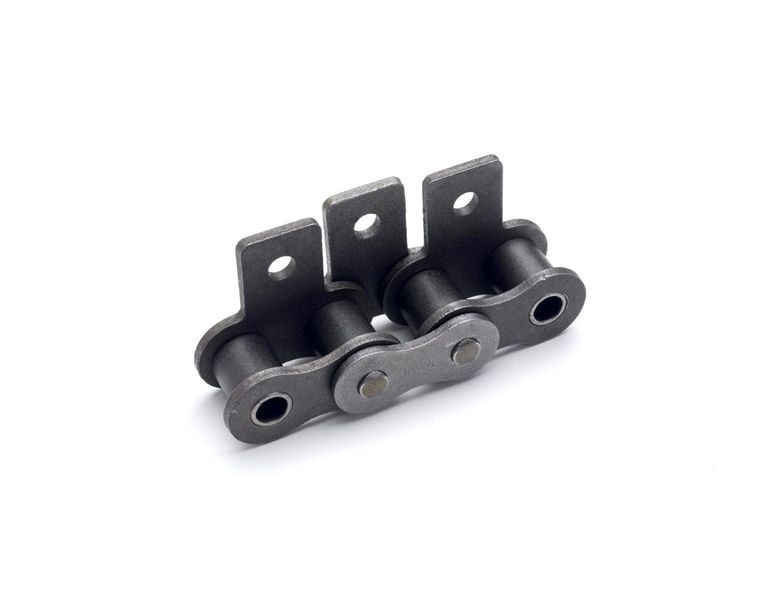

Attachments (SA - 1 )
แบรนด์
SKF
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 35 -1 Lx SA1
Model description

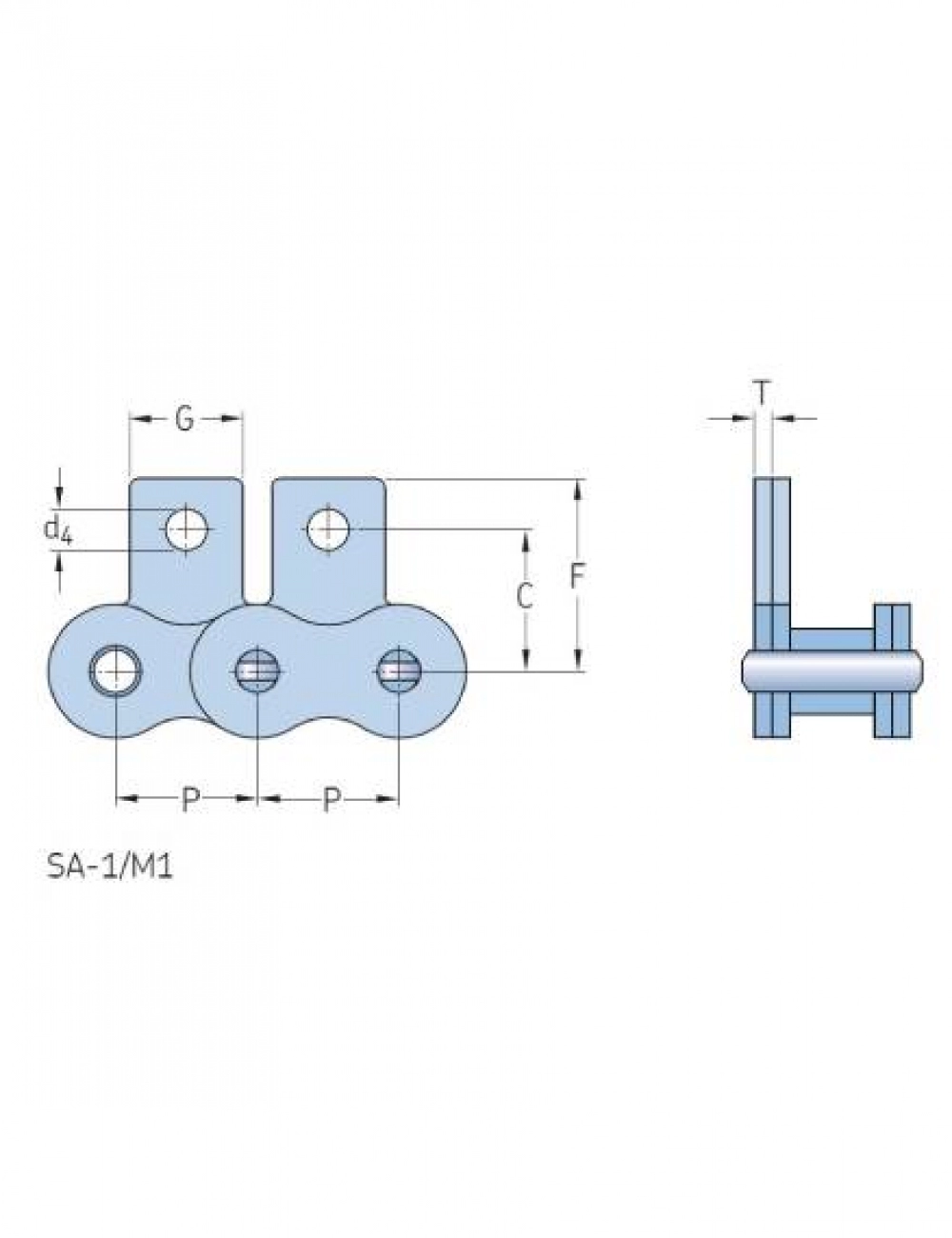

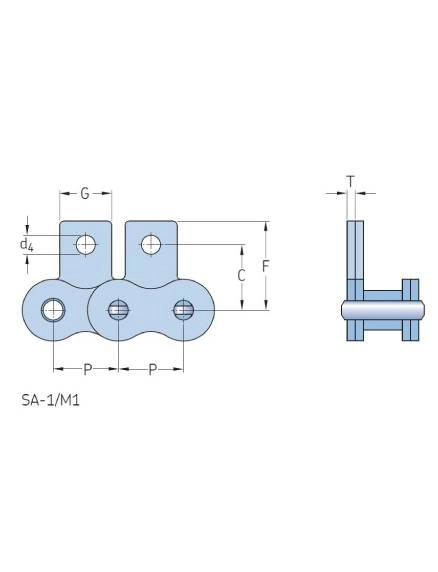

DIAMETER : Pitch (P) = 9.53 mm , G = 7.9 mm , T = 1.30 mm , d4 = 3.4 mm
Price
Model
PHC 40 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 9.5 mm , T = 1.30 mm , d4 = 3.6 mm
Price
Model
PHC 41 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 9.5 mm , T = 1.30 mm , d4 = 3.6 mm
Price
Model
PHC 50 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 15.88 mm , G = 12.7 mm , T = 2.03 mm , d4 = 5.5 mm
Price
Model
PHC 60 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 19.05 mm , G = 15.9 mm , T = 2.42 mm , d4 = 5.5 mm
Price
Model
PHC 80 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 19.1 mm , T = 3.25 mm , d4 = 6.8 mm
Price
Model
PHC 100 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 25.4 mm , T = 4.00 mm , d4 = 9.2 mm
Price
Model
PHC 120 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 28.6 mm , T = 4.80 mm , d4 = 9.8 mm
Price
Model
PHC 140 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 44.45 mm , G = 34.9 mm , T = 5.60 mm , d4 = 11.4 mm
Price
Model
PHC 160 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 38.1 mm , T = 6.40 mm , d4 = 13.1 mm
Price
Model
PHC 200 -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 63.50 mm , G = 50.8 mm , T = 8.00 mm , d4 = 16.3 mm
Price
Model
PHC 06B -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 9.53 mm , G = 8.0 mm , T = 1.30 mm , d4 = 3.5 mm
Price
Model
PHC 08B-1 Lx SA1
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 9.5 mm , T = 1.60 mm , d4 = 4.3 mm
Price
Model
PHC 10B -1 Lx SA1
Model description
DIAMETER : Pitch (P) 15.88 mm , G = 14.3 mm , T = 1.70 mm , d4 = 5.3 mm
Price
Model
PHC 12B -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 19.05 mm , G = 16.0 mm , T = 1.85 mm , d4 = 6.4 mm
Price
Model
PHC 16B -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 19.1 mm , T = 3.10 mm , d4 =6.4 mm
Price
Model
PHC 20B -1 Lx SA1
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 19.1 mm , T = 3.10 mm , d4 = 6.4 mm
Price
