PRODUCT
![]()
ชื่อรุ่น :

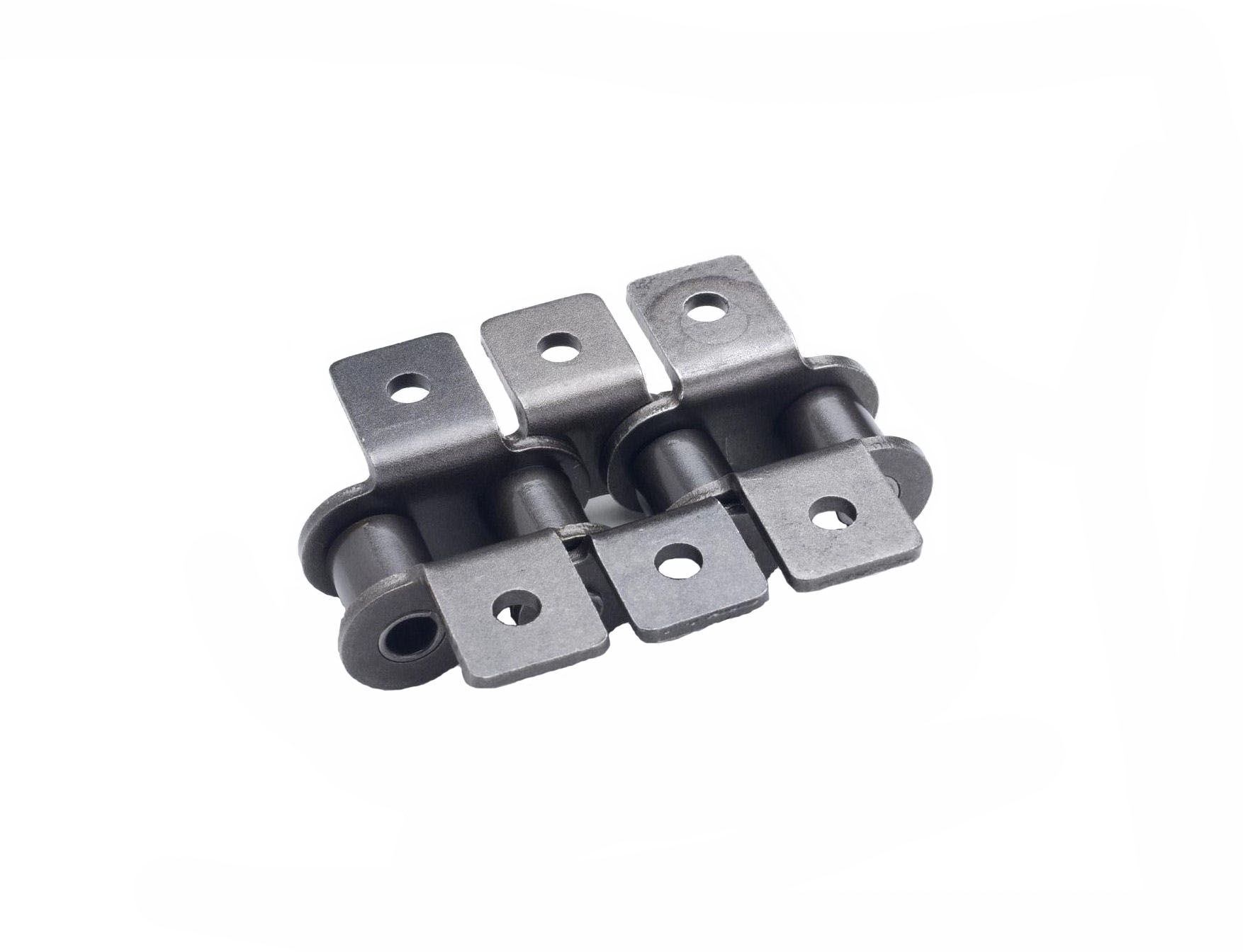

Attachments ( K - 1 )
แบรนด์
SKF
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 35 -1 Lx K1
Model description

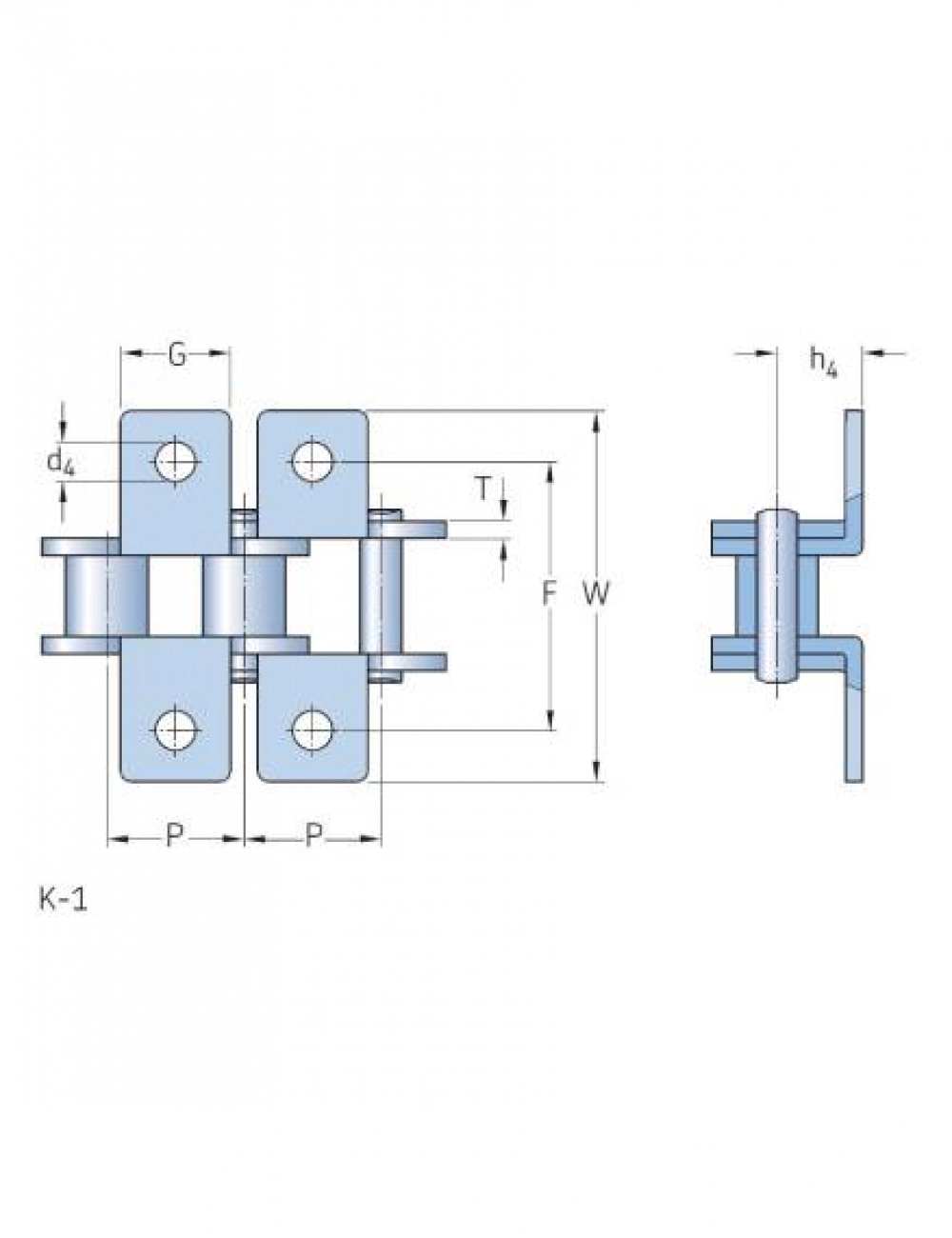

DIAMETER : Pitch (P) = 9.53 mm , G =7.9 mm , T = 1.30 mm , h4 = 6.35 mm , d4 = 3.4mm
Price
Model
PHC 40 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 9.5 mm , T = 1.50 mm , h4 = 7.90 mm , d4 =3.4 mm
Price
Model
PHC 41 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 9.5 mm , T = 1.30 mm , h4 = 6.90 mm , d4 = 3.6 mm
Price
Model
PHC 50 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 15.88 mm , G = 12.7 mm , T = 2.03 mm , h4 = 10.30 mm , d4 =5.5 mm
Price
Model
PHC 60 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 19.05 mm , G = 15.9 mm , T = 2.42 mm , h4 = 11.90 mm , d4 = 5.5 mm
Price
Model
PHC 80-1 Lx K1
Model description
DIAMETER : Pitch (P) =31.75 mm , G = 25.4 mm , T = 4.00 mm , h4 = 19.80 mm , d4 = 9.8 mm
Price
Model
PHC 100 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 28.6 mm , T = 4.80 mm , h4 = 23.00 mm , d4 = 9.8 mm
Price
Model
PHC 120 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 28.6 mm , T = 4.80 mm , h4 =23.00 mm , d4 = 9.8 mm
Price
Model
PHC 140 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 44.45 mm , G = 34.9 mm , T = 5.60 mm , h4 = 28.60 mm , d4 = 11.4 mm
Price
Model
PHC 160 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 38.1 mm , T = 6.40 mm , h4 = 31.75 mm , d4 =13.1 mm
Price
Model
PHC 200 -1 Lx K1
Model description
DIAMETER : Pitch (P) = 63.50 mm , G =50.8 mm , T = 8.00 mm , h4 = 42.88 mm , d4 =16.3 mm
Price
Model
PHC 06B-1 Lx K1
Model description
DIAMETER : Pitch (P) =9.53 mm , G = 8.0mm , T = 1.30 mm , h4 = 6.50 mm , d4 =3.5 mm
Price
Model
PHC 08B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 12.70 mm , G = 9.5 mm , T = 1.60 mm , h4 = 8.90 mm , d4 = 4.5 mm
Price
Model
PHC 10B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 15.88 mm , G = 14.3 mm , T = 1.70 mm , h4 = 10.31 mm , d4 = 5.3 mm
Price
Model
PHC 12B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 19.05mm , G = 16 mm , T = 1.85mm , h4 =13.45 mm , d4 = 6.4 mm
Price
Model
PHC 16B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 25.40 mm , G = 19.1 mm , T = 3.10 mm , h4 = 15.88 mm , d4 = 6.4 mm
Price
Model
PHC 20B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 31.75 mm , G = 35.0 mm , T = 3.50 mm , h4 = 19.80 mm , d4 =9.0 mm
Price
Model
PHC 24B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 38.10 mm , G = 30.0 mm , T = 4.80 mm , h4 = 26.67 mm , d4 = 10.5 mm
Price
Model
PHC 28B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 44.45 mm , G = 35.0mm , T = 6.00 mm , h4 =28.58 mm , d4 = 13.1mm
Price
Model
PHC 32B -1 Lx K1
Model description
DIAMETER : Pitch (P) = 50.80 mm , G = 38.1 mm , T = 6.00 mm , h4 = 31.75 mm , d4 = 13.1 mm
Price
