ชื่อรุ่น :

PHC XXX - 1

แบรนด์

SKF

รายละเอียด :

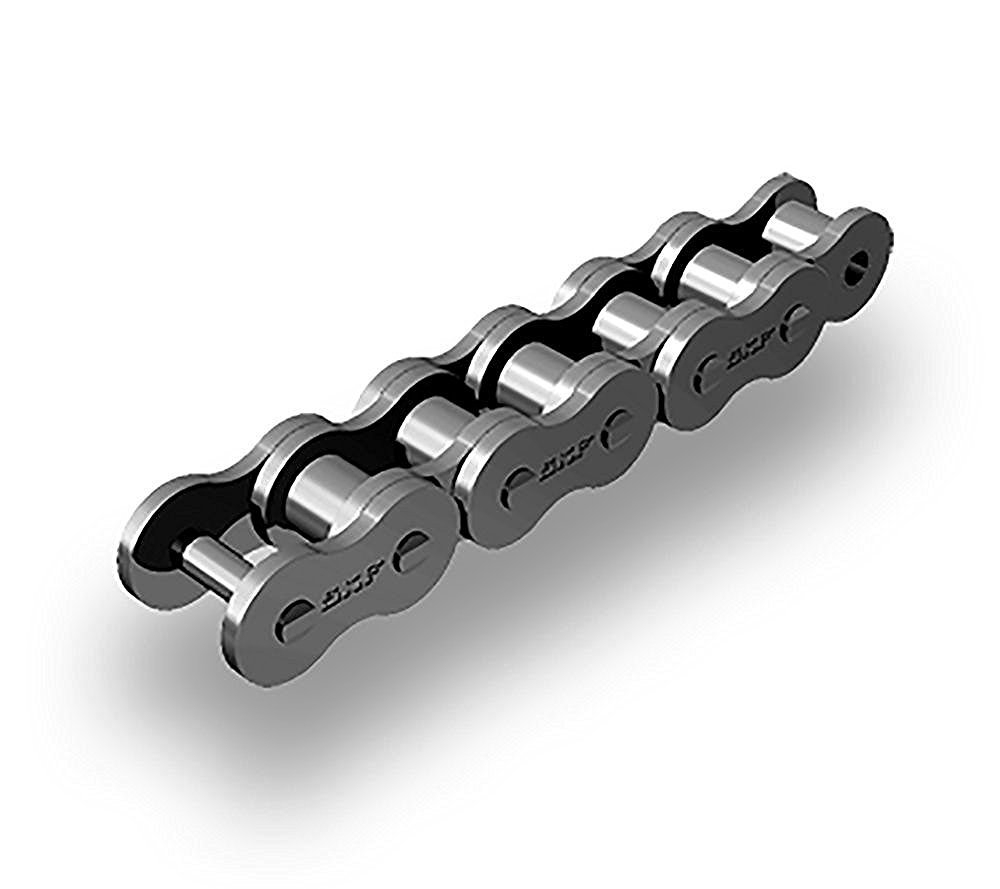

โซ่ส่งกำลังชั้นเดียว ANSI Standard Lenghts are 10 ft. and 5 m.

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHC 15 - 1
Model description

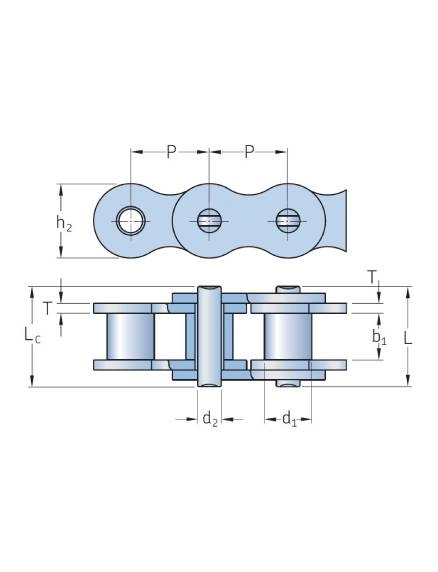

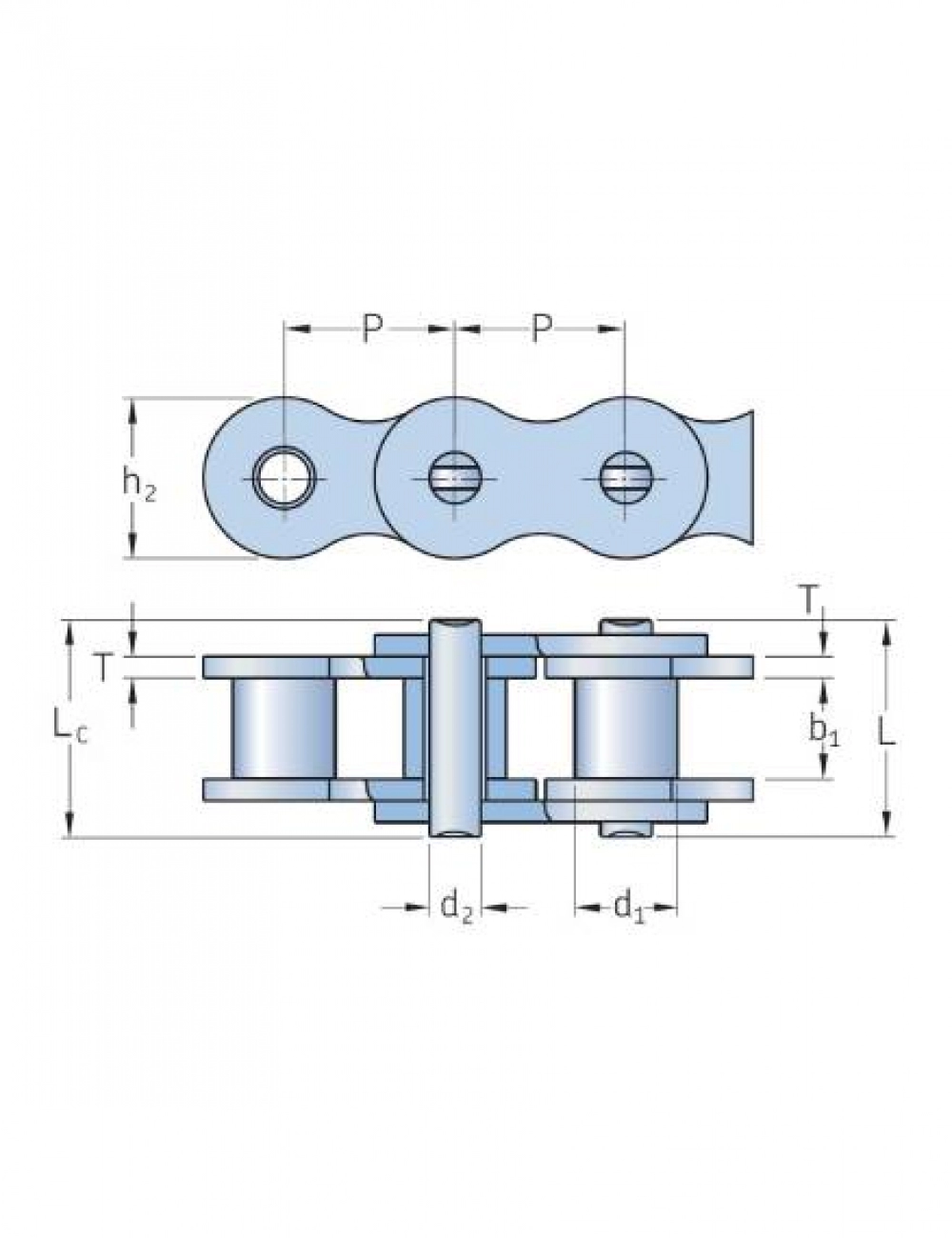

DIAMETER : Pitch (P) = 4.76 mm , h2 = 4.30 mm , Roller ( d1) max. = 2.48 mm, Inner plates (b1) = 2.38 mm , Pin ( Lc) = 6.90 mm
Price
Model
PHC 25 - 1
Model description
DIAMETER : Pitch (P) = 6.35 mm , h2 = 6.00 mm , Roller ( d1) max. = 3.30 mm, Inner plates (b1) = 3.18 mm , Pin ( Lc) = 8.40 mm
Price
Model
PHC 35 - 1
Model description
DIAMETER : Pitch (P) = 9.52 mm , h2 = 9.00 mm , Roller ( d1) max. = 5.08 mm, Inner plates (b1) = 4.77 mm , Pin ( Lc) = 13.17 mm
Price
Model
PHC 41 - 1
Model description
DIAMETER : Pitch (P) = 12.70 mm , h2 = 9.91 mm , Roller ( d1) max. = 7.77 mm, Inner plates (b1) = 6.25 mm , Pin ( Lc) = 15.00 mm
Price
Model
PHC 40 - 1
Model description
DIAMETER : Pitch (P) = 12.70 mm , h2 = 12.00 mm , Roller ( d1) max. = 7.95 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 17.80 mm
Price
Model
PHC 50 - 1
Model description
DIAMETER : Pitch (P) = 15.87 mm , h2 = 15.09 mm , Roller ( d1) max. = 10.16 mm, Inner plates (b1) = 9.40 mm , Pin ( Lc) = 22.20 mm
Price
Model
PHC 60 - 1
Model description
DIAMETER : Pitch (P) = 19.05 mm , h2 = 18.00 mm , Roller ( d1) max. = 11.91 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 27.70 mm
Price
Model
PHC 80 - 1
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 24.00 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 15.75 mm , Pin ( Lc) = 35.00 mm
Price
Model
PHC 100-1
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 30.00 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 44.70 mm
Price
Model
PHC 120-1
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 35.70 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 54.30 mm
Price
Model
PHC 140-1
Model description
DIAMETER : Pitch (P) = 44.45 mm , h2 = 41.00 mm , Roller ( d1) max. = 25.40 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 59.00 mm
Price
Model
PHC 160-1
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 47.80 mm , Roller ( d1) max. = 28.58 mm, Inner plates (b1) = 31.55 mm , Pin ( Lc) = 64.80 mm
Price
Model
PHC 180-1
Model description
DIAMETER : Pitch (P) = 57.15 mm , h2 = 53.60 mm , Roller ( d1) max. = 35.71 mm, Inner plates (b1) = 35.48 mm , Pin ( Lc) = 78.60 mm
Price
Model
PHC 200-1
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 60.00 mm , Roller ( d1) max. = 39.68 mm, Inner plates (b1) = 37.85 mm , Pin ( Lc) = 87.20 mm
Price
Model
PHC 240-1
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 72.39 mm , Roller ( d1) max. = 47.63 mm, Inner plates (b1) = 47.35 mm , Pin ( Lc) = 103.00 mm
Price
สอบถามเพิ่มเติม
