PRODUCT
![]()
ชื่อรุ่น :
PHC ALXXXX
แบรนด์
SKF
รายละเอียด :
ANSI AL322-AL1688
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC AL322
Model description

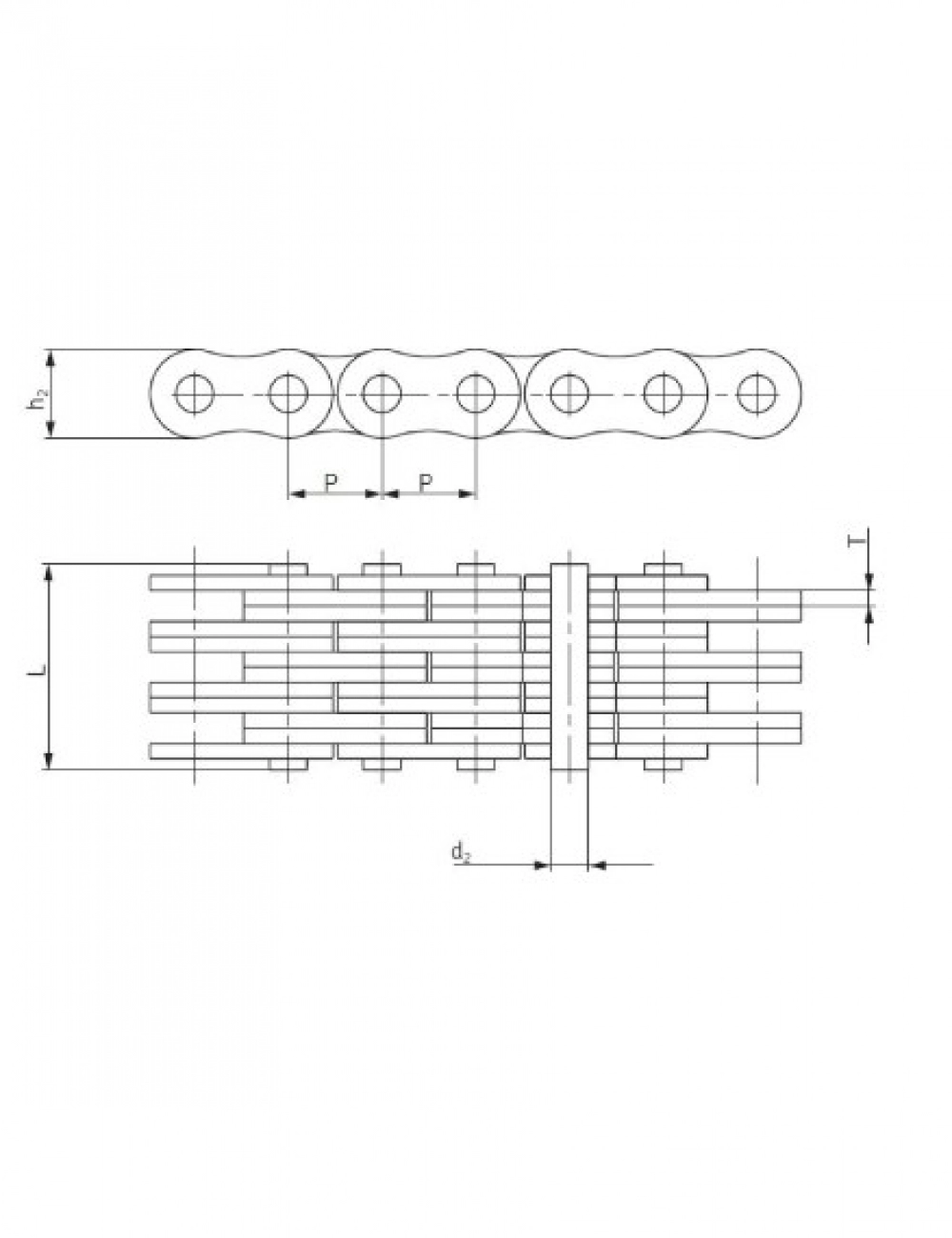

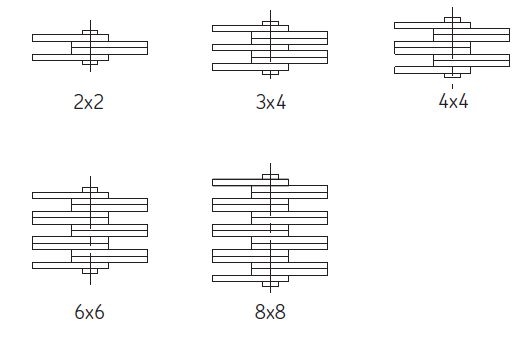

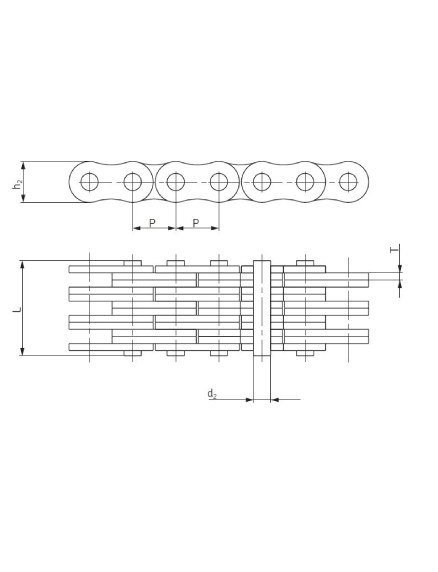

DIAMETER : Pitch (P) = 9,53 mm , h2 = 7,7 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 1,30 mm ,Pin (d2) = 3,58 mm , Pin length ( L) = 6,80 mm
Price
Model
PHC AL344
Model description
DIAMETER : Pitch (P) = 9,53 mm , h2 = 7,7 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 1,30 mm ,Pin (d2) = 3,58 mm , Pin length ( L) = 11,60 mm
Price
Model
PHC AL422
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,4 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 1,50 mm ,Pin (d2) = 3,96 mm , Pin length ( L) = 8,30 mm
Price
Model
PHC AL444
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,4 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 1,50 mm ,Pin (d2) = 3,96 mm , Pin length ( L) = 14,40 mm
Price
Model
PHC AL466
Model description
DIAMETER : Pitch (P) = 12,70 mm , h2 = 10,4 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 1,50 mm ,Pin (d2) = 3,96 mm , Pin length ( L) = 20,50 mm
Price
Model
PHC AL522
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,8 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 2,03 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 11,05 mm
Price
Model
PHC AL534
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,8 mm , Plate lacing = 3x4 mm, Plate thickness ( T ) = 2,03 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 17,00 mm
Price
Model
PHC AL544
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,8 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 2,03 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 19,40 mm
Price
Model
PHC AL566
Model description
DIAMETER : Pitch (P) = 15,88 mm , h2 = 12,8 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 2,03 mm ,Pin (d2) = 5,08 mm , Pin length ( L) = 27,50 mm
Price
Model
PHC AL622
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,6 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 2,42 mm ,Pin (d2) = 5,94 mm , Pin length ( L) = 13,00 mm
Price
Model
PHC AL644
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,6 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 2,42 mm ,Pin (d2) = 5,94 mm , Pin length ( L) = 22,70 mm
Price
Model
PHC AL666
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,6 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 2,42 mm ,Pin (d2) = 5,94 mm , Pin length ( L) = 32,20 mm
Price
Model
PHC AL688
Model description
DIAMETER : Pitch (P) = 19,05 mm , h2 = 15,6 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 2,42 mm ,Pin (d2) = 5,94 mm , Pin length ( L) = 42,20 mm
Price
Model
PHC AL822
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 20,5 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 3,25 mm ,Pin (d2) = 7,92 mm , Pin length ( L) = 16,00 mm
Price
Model
PHC AL844
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 20,5 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 3,25 mm ,Pin (d2) = 7,92 mm , Pin length ( L) = 29,40 mm
Price
Model
PHC AL866
Model description
DIAMETER : Pitch (P) = 25,40 mm , h2 = 20,5 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 3,25 mm ,Pin (d2) = 7,92 mm , Pin length ( L) = 44,20 mm
Price
Model
PHC AL1022
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 25,6 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 4,00 mm ,Pin (d2) = 9,53 mm , Pin length ( L) = 19,60 mm
Price
Model
PHC AL1044
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 25,6 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 4,00 mm ,Pin (d2) = 9,53 mm , Pin length ( L) = 36,40 mm
Price
Model
PHC AL1066
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 25,6 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 4,00 mm ,Pin (d2) = 9,53 mm , Pin length ( L) = 52,30 mm
Price
Model
PHC AL1088
Model description
DIAMETER : Pitch (P) = 31,75 mm , h2 = 25,6 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 4,00 mm ,Pin (d2) = 9,53 mm , Pin length ( L) = 68,50 mm
Price
Model
PHC AL1222
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 30,5 mm , Plate lacing = 2x2 mm, Plate thickness ( T ) = 4,80 mm ,Pin (d2) = 11,10 mm , Pin length ( L) = 24,30 mm
Price
Model
PHC AL1244
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 30,5 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 4,80 mm ,Pin (d2) = 11,10 mm , Pin length ( L) = 43,80 mm
Price
Model
PHC AL1266
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 30,5 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 4,80 mm ,Pin (d2) = 11,10 mm , Pin length ( L) = 63,20 mm
Price
Model
PHC AL1288
Model description
DIAMETER : Pitch (P) = 38,10 mm , h2 = 30,5 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 4,80 mm ,Pin (d2) = 11,10 mm , Pin length ( L) = 82,60 mm
Price
Model
PHC AL1444
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 36,4 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 5,60 mm ,Pin (d2) = 12,64 mm , Pin length ( L) = 51,30 mm
Price
Model
PHC AL1466
Model description
DIAMETER : Pitch (P) = 44,45 mm , h2 = 36,4 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 5,60 mm ,Pin (d2) = 12,64 mm , Pin length ( L) = 74,56 mm
Price
Model
PHC AL1644
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 41,6 mm , Plate lacing = 4x4 mm, Plate thickness ( T ) = 6,40 mm ,Pin (d2) = 14,21 mm , Pin length ( L) = 58,00 mm
Price
Model
PHC AL1666
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 41,6 mm , Plate lacing = 6x6 mm, Plate thickness ( T ) = 6,40 mm ,Pin (d2) = 14,21 mm , Pin length ( L) = 83,80 mm
Price
Model
PHC AL1688
Model description
DIAMETER : Pitch (P) = 50,80 mm , h2 = 41,6 mm , Plate lacing = 8x8 mm, Plate thickness ( T ) = 6,40 mm ,Pin (d2) = 14,21 mm , Pin length ( L) = 109,50 mm
Price
