PRODUCT
![]()
ชื่อรุ่น :
Transmission PHC XXXX
แบรนด์
SKF
รายละเอียด :

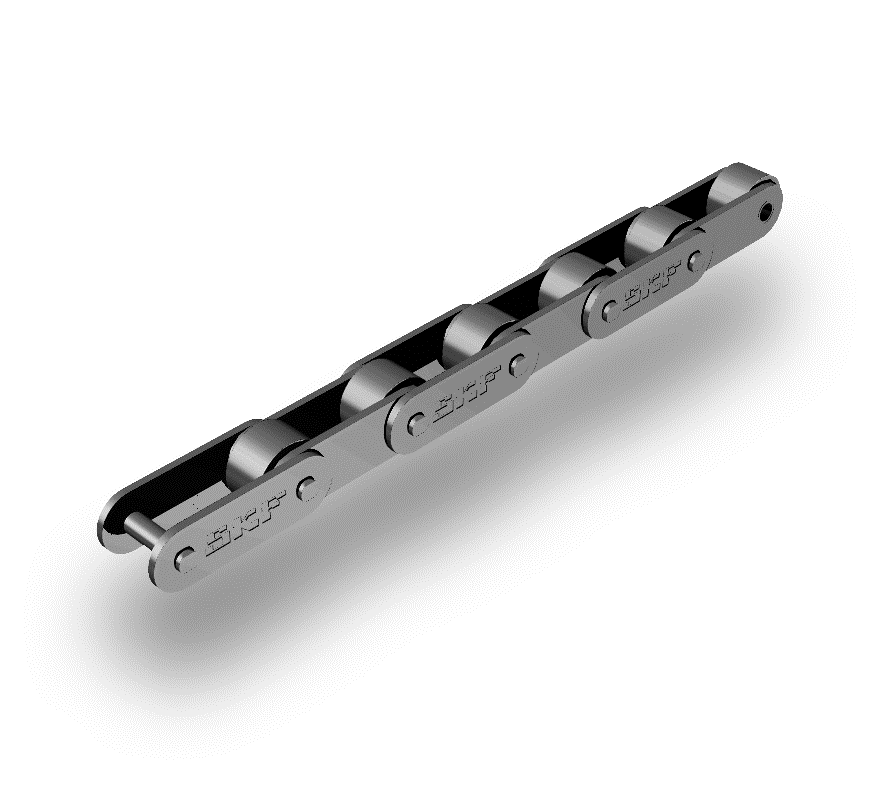

ANSI Double pitch Chains
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC 2040
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 12.0 mm , Roller ( d1) max. = 7.95 mm, Inner plates (b1) = 7.85 mm , Pin ( Lc) = 17.8 mm
Price
Model
PHC 2050
Model description
DIAMETER : Pitch (P) =31.75 mm , h2 = 15.0 mm , Roller ( d1) max. = 10.16 mm, Inner plates (b1) = 9.40 mm , Pin ( Lc) = 22.2 mm
Price
Model
PHC 2060
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 18.0 mm , Roller ( d1) max. = 11.91 mm, Inner plates (b1) = 12.57 mm , Pin ( Lc) = 27.7 mm
Price
Model
PHC 2080
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 24.0 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 7.92 mm , Pin ( Lc) =36.5 mm
Price
Model
PHC 2100
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 30.0 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 18.90 mm , Pin ( Lc) = 44.7 mm
Price
Model
PHC 2120
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 35.7 mm , Roller ( d1) max. = 22.23 mm, Inner plates (b1) = 25.22 mm , Pin ( Lc) = 54.3 mm
Price
Model
PHC 208B
Model description
DIAMETER : Pitch (P) = 25.40 mm , h2 = 11.8 mm , Roller ( d1) max. = 8.51 mm, Inner plates (b1) = 7.75 mm , Pin ( Lc) = 18.2 mm
Price
Model
PHC 210B
Model description
DIAMETER : Pitch (P) = 31.75 mm , h2 = 14.7 mm , Roller ( d1) max. = 10.16 mm, Inner plates (b1) =9.65 mm , Pin ( Lc) = 20.9 mm
Price
Model
PHC 212B
Model description
DIAMETER : Pitch (P) = 38.10 mm , h2 = 16.0 mm , Roller ( d1) max. = 12.07 mm, Inner plates (b1) = 11.68 mm , Pin ( Lc) = 25.2 mm
Price
Model
PHC 216B
Model description
DIAMETER : Pitch (P) = 50.80 mm , h2 = 21.0 mm , Roller ( d1) max. = 15.88 mm, Inner plates (b1) = 17.02 mm , Pin ( Lc) = 39.1 mm
Price
Model
PHC 220B
Model description
DIAMETER : Pitch (P) = 63.50 mm , h2 = 26.4 mm , Roller ( d1) max. = 19.05 mm, Inner plates (b1) = 19.56 mm , Pin ( Lc) = 45.0 mm
Price
Model
PHC 224B
Model description
DIAMETER : Pitch (P) = 76.20 mm , h2 = 33.2 mm , Roller ( d1) max. =25.40 mm, Inner plates (b1) =25.40 mm , Pin ( Lc) = 57.8 mm
Price
Model
PHC 228B
Model description
DIAMETER : Pitch (P) = 88.90 mm , h2 =36.7 mm , Roller ( d1) max. = 27.94 mm, Inner plates (b1) =30.99 mm , Pin ( Lc) = 69.5 mm
Price
Model
PHC 232B
Model description
DIAMETER : Pitch (P) =101.60 mm , h2 = 42.0 mm , Roller ( d1) max. = 29.21 mm, Inner plates (b1) = 30.99 mm , Pin ( Lc) =71.0 mm
Price
