PRODUCT
![]()
ชื่อรุ่น :
M Series
แบรนด์
SKF
รายละเอียด :

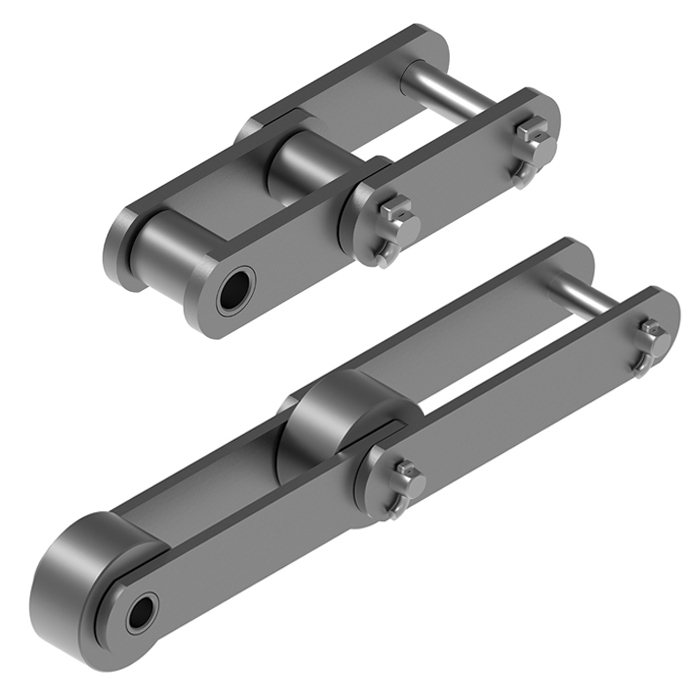

BS Conveyor Chains
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHC M20A
Model description

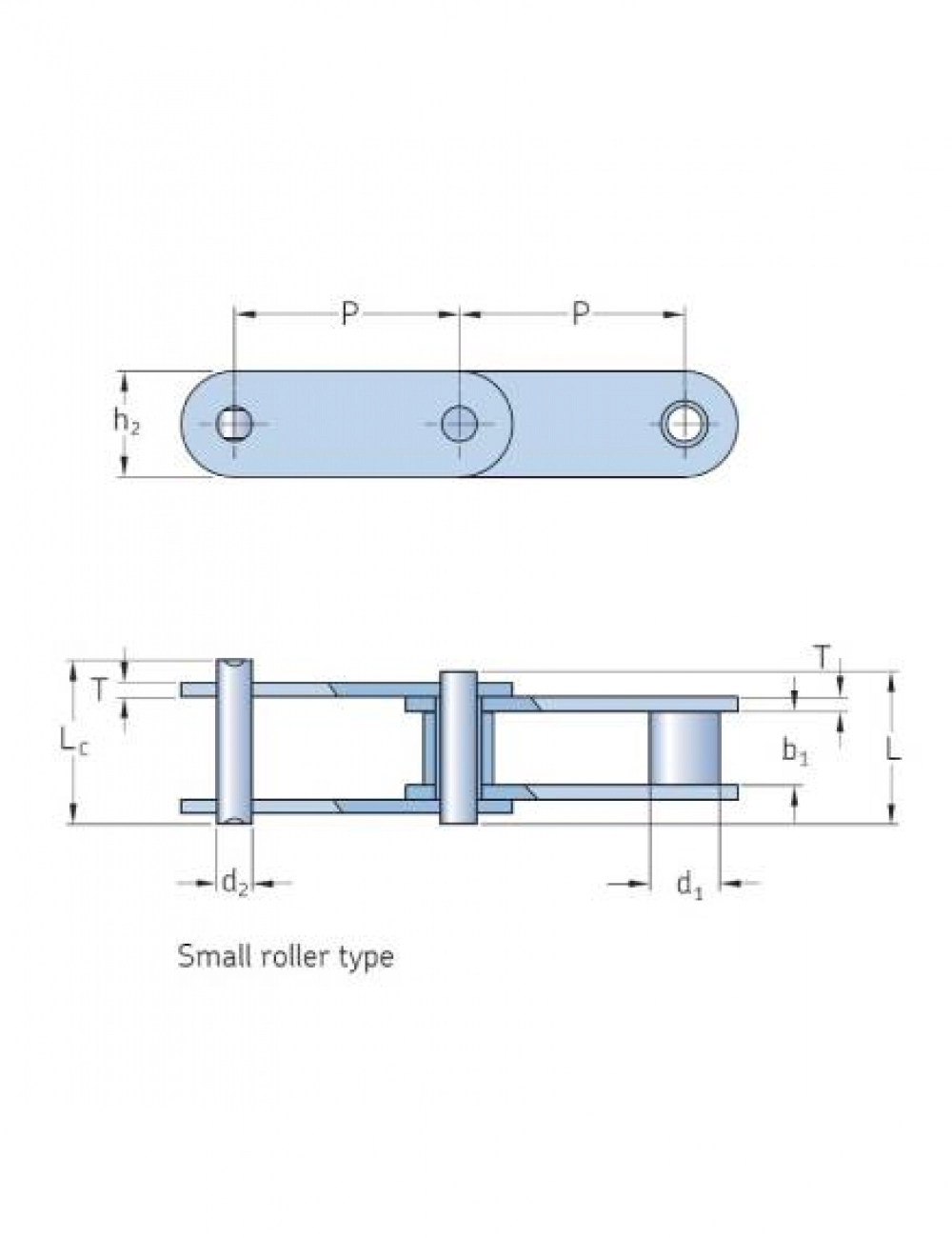

DIAMETER : h2 = 19 mm , Roller ( d1) max. = 25 mm, Bush (d4) = 9.0 mm , inner plates (b1) = 16 mm , Pin diameter ( d2) = 6.0 mm , Pin length(L) = 35 mm
Price
Model
PHC M28A
Model description
DIAMETER : h2 = 21 mm , Roller ( d1) max. = 30 mm, Bush (d4) = 10.0 mm , inner plates (b1) = 18 mm , Pin diameter ( d2) = 7.0 mm , Pin length(L) =40 mm
Price
Model
PHC M40A
Model description
DIAMETER : h2 = 26 mm , Roller ( d1) max. = 36 mm, Bush (d4) = 12.5 mm , inner plates (b1) = 20 mm , Pin diameter ( d2) = 8.5 mm , Pin length(L) = 45mm
Price
Model
PHC M56A
Model description
DIAMETER : h2 = 31 mm , Roller ( d1) max. = 42 mm, Bush (d4) = 15.0 mm , inner plates (b1) = 24 mm , Pin diameter ( d2) = 10.0 mm , Pin length(L) =52 mm
Price
Model
PHC M80A
Model description
DIAMETER : h2 = 36 mm , Roller ( d1) max. = 50 mm, Bush (d4) = 18.0 mm , inner plates (b1) = 28 mm , Pin diameter ( d2) = 12.0 mm , Pin length(L) = 62 mm
Price
Model
PHC M112A
Model description
DIAMETER : h2 =41 mm , Roller ( d1) max. = 60 mm, Bush (d4) = 21.0 mm , inner plates (b1) = 32 mm , Pin diameter ( d2) = 15.0 mm , Pin length(L) = 73mm
Price
Model
PHC M160A
Model description
DIAMETER : h2 = 51 mm , Roller ( d1) max. = 70 mm, Bush (d4) = 25.0 mm , inner plates (b1) = 37 mm , Pin diameter ( d2) = 18.0 mm , Pin length(L) = 85 mm
Price
Model
PHC M224A
Model description
DIAMETER : h2 = 62 mm , Roller ( d1) max. = 85 mm, Bush (d4) = 30.0 mm , inner plates (b1) =43 mm , Pin diameter ( d2) = 21.0 mm , Pin length(L) = 98mm
Price
Model
PHC M315A
Model description
DIAMETER : h2 = 72 mm , Roller ( d1) max. = 100 mm, Bush (d4) = 36.0 mm , inner plates (b1) = 48 mm , Pin diameter ( d2) = 25.0 mm , Pin length(L) = 112 mm
Price
Model
PHC M450A
Model description
DIAMETER : h2 = 82 mm , Roller ( d1) max. = 120 mm, Bush (d4) = 42.0 mm , inner plates (b1) = 56 mm , Pin diameter ( d2) = 30.0 mm , Pin length(L) = 135 mm
Price
