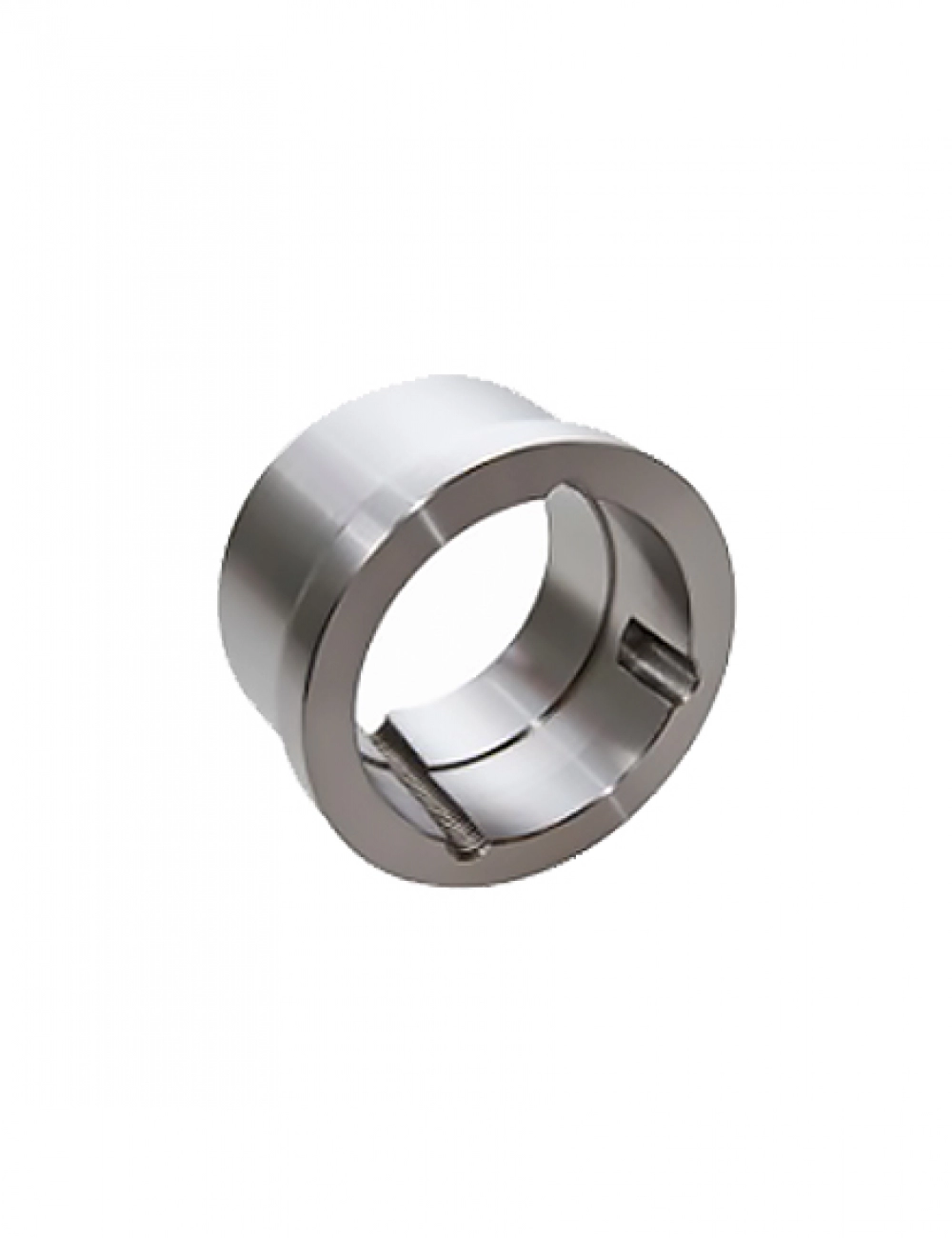

PHH WXX

Bushing size : 1215

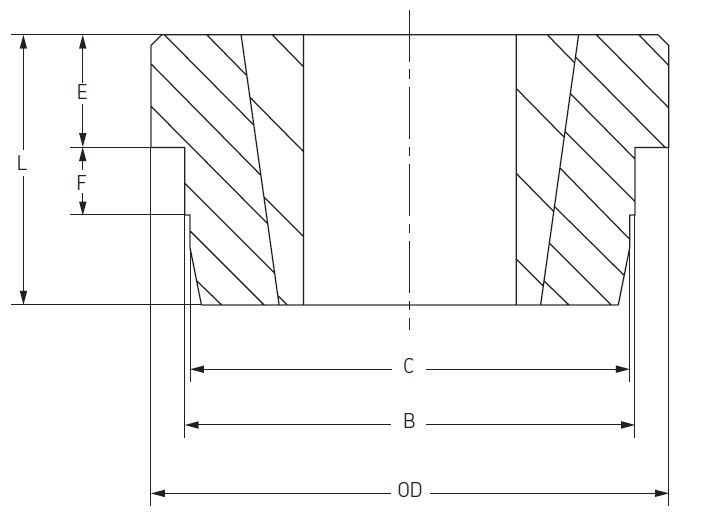

DIMENSIONS : OD = 73.03 mm , B = 63.50 mm , C= 62.71 mm ,L= 38.1 mm, E= 15.88 mm , F = 9.53 mm

Bushing size : 1615
DIMENSIONS : OD = 82.55 mm , B = 73.03mm , C= 72.24 mm ,L= 38.1mm, E=15.88 mm , F =9.53 mm

Bushing size : 2017
DIMENSIONS : OD = 101.60 mm , B =88.90 mm , C= 88.11 mm ,L=44.4 mm, E=19.05 mm , F = 11.91 mm

Bushing size : 2517
DIMENSIONS : OD = 127.00 mm , B = 111.13 mm , C= 110.34 mm ,L= 44.4 mm, E=19.05 mm , F =12.70 mm

Bushing size : 3030
DIMENSIONS : OD = 149.86 mm , B = 133.35 mm , C= 132.56 mm ,L=76.2 mm, E=25.40 mm , F = 19.05mm

Bushing size : 3535
DIMENSIONS : OD = 184.15 mm , B = 158.75mm , C= 157.96 mm ,L= 88.9 mm, E= 31.75 mm , F = 25.40 mm

Bushing size : 4040
DIMENSIONS : OD = 225.43 mm , B = 196.85 mm , C= 196.06 mm ,L= 101.6mm, E= 31.75 mm , F = 31.75 mm

Bushing size : 4545
DIMENSIONS : OD = 254.00 mm , B = 222.25 mm , C= 221.46 mm ,L=114.3 mm, E= 38.10 mm , F = 38.10 mm
