PRODUCT
![]()
ชื่อรุ่น :

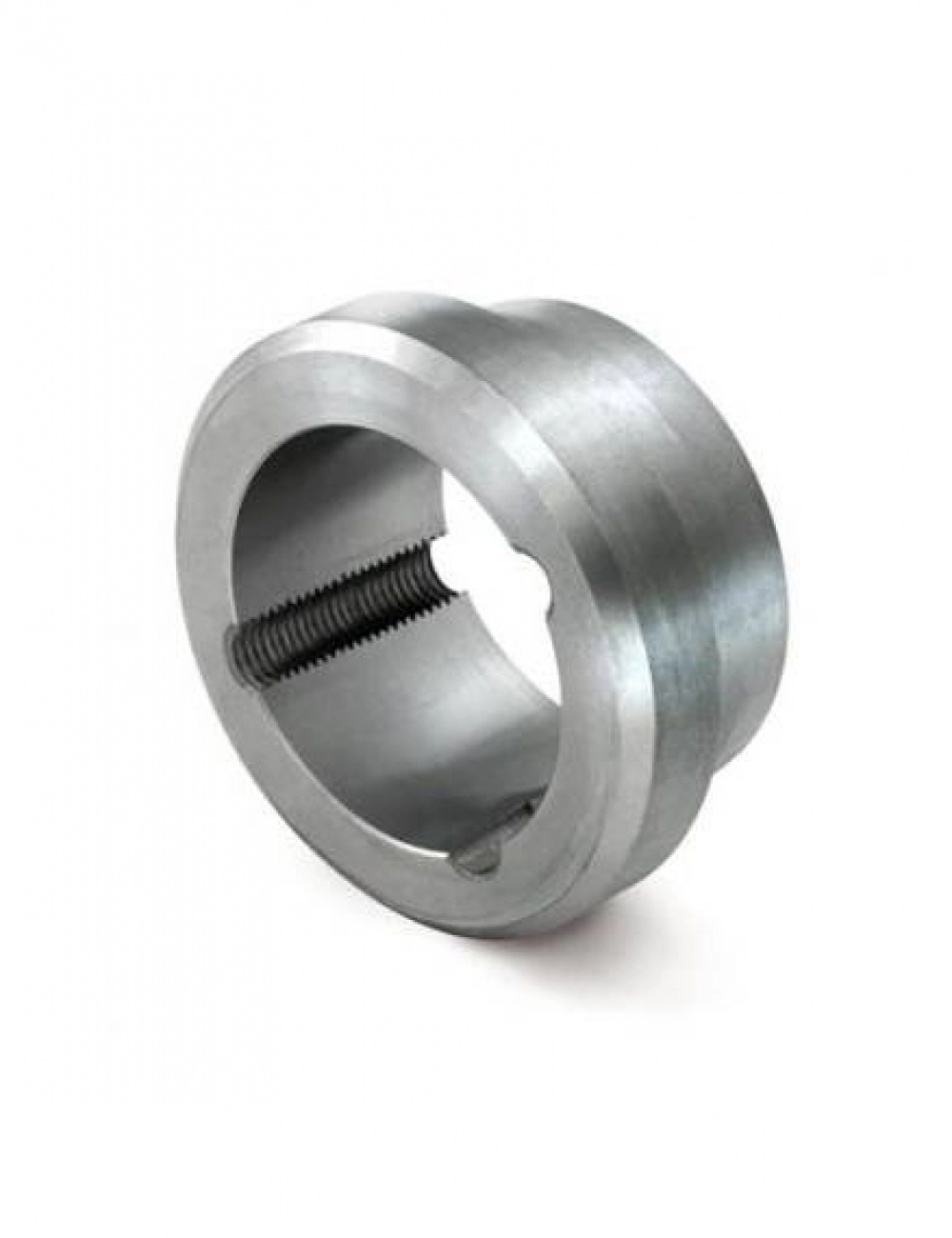

PHH WMXX
แบรนด์
SKF
รายละเอียด :
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
Bushing size : 1210

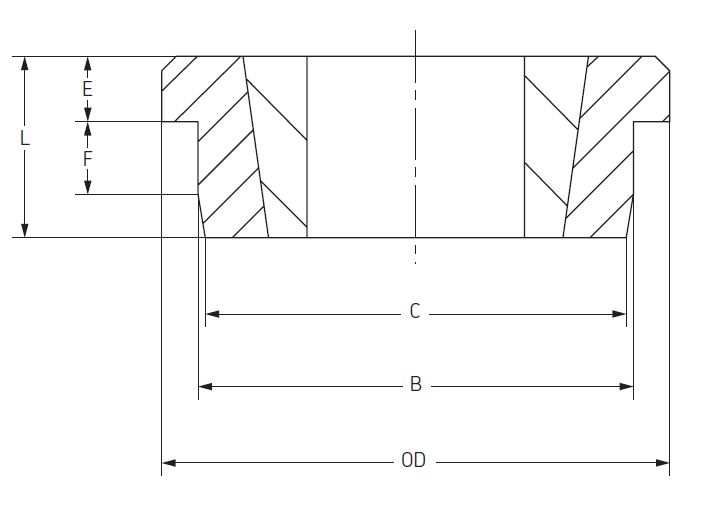

DIMENSIONS : OD =70 mm , B =60 mm , C = 58 mm ,L = 25 mm, E=9 mm, F =10 mm
Bushing size : 1610
DIMENSIONS : OD = 83 mm , B = 70 mm , C = 68 mm ,L = 35 mm, E=9 mm, F = 10 mm
Bushing size : 1615
DIMENSIONS : OD = 83 mm , B = 70 mm , C = 68 mm ,L = 38 mm, E=16 mm, F = 11 mm
Bushing size : 2012
DIMENSIONS : OD = 95 mm , B = 90 mm , C = 88 mm ,L = 32 mm, E= 12 mm, F = 12 mm
Bushing size : 2517
DIMENSIONS : OD = 127 mm , B = 110 mm , C = 108 mm ,L = 44 mm, E= 19 mm, F = 13 mm
Bushing size : 3020
DIMENSIONS : OD = 152 mm , B = 130 mm , C = 125 mm ,L = 50 mm, E= 20 mm, F = 15 mm
Bushing size : 3030
DIMENSIONS : OD = 152 mm , B = 130 mm , C = 125 mm ,L = 76 mm, E=25 mm, F = 19mm
Bushing size : 3535
DIMENSIONS : OD = 184 mm , B = 155 mm , C = 151 mm ,L = 89 mm, E= 32 mm, F = 25 mm
Bushing size : 4040
DIMENSIONS : OD = 225 mm , B = 195 mm , C = 187 mm ,L = 102 mm, E= 32 mm, F = 32 mm
Bushing size : 4545
DIMENSIONS : OD = 254 mm , B = 220 mm , C = 213 mm ,L = 114 mm, E= 38 mm, F = 38 mm
Bushing size : 5050
DIMENSIONS : OD = 276 mm , B = 242 mm , C = 228 mm ,L =127 mm, E= 38 mm, F = 38 mm
