PRODUCT
![]()
ชื่อรุ่น :
PHS 40 - 3BXX
แบรนด์
SKF
รายละเอียด :

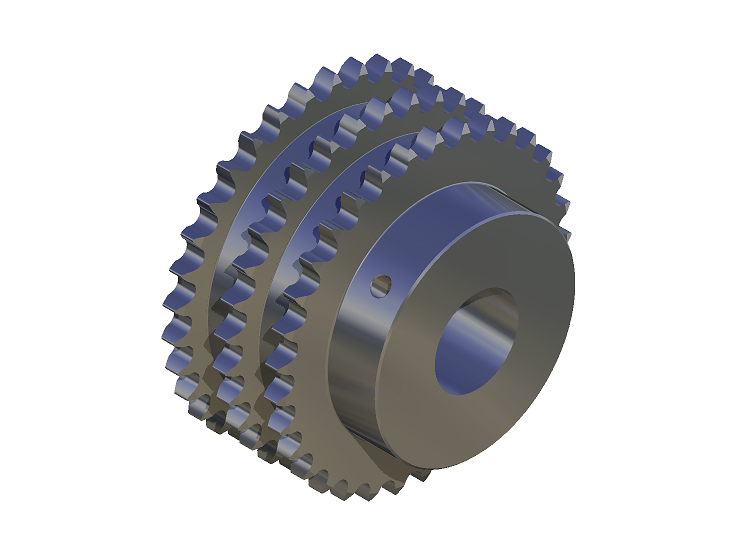

เฟื่องโซ่สามชั้น Pitch = 1/2"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 40 - 3B11
Model description
No.Teeth = 11

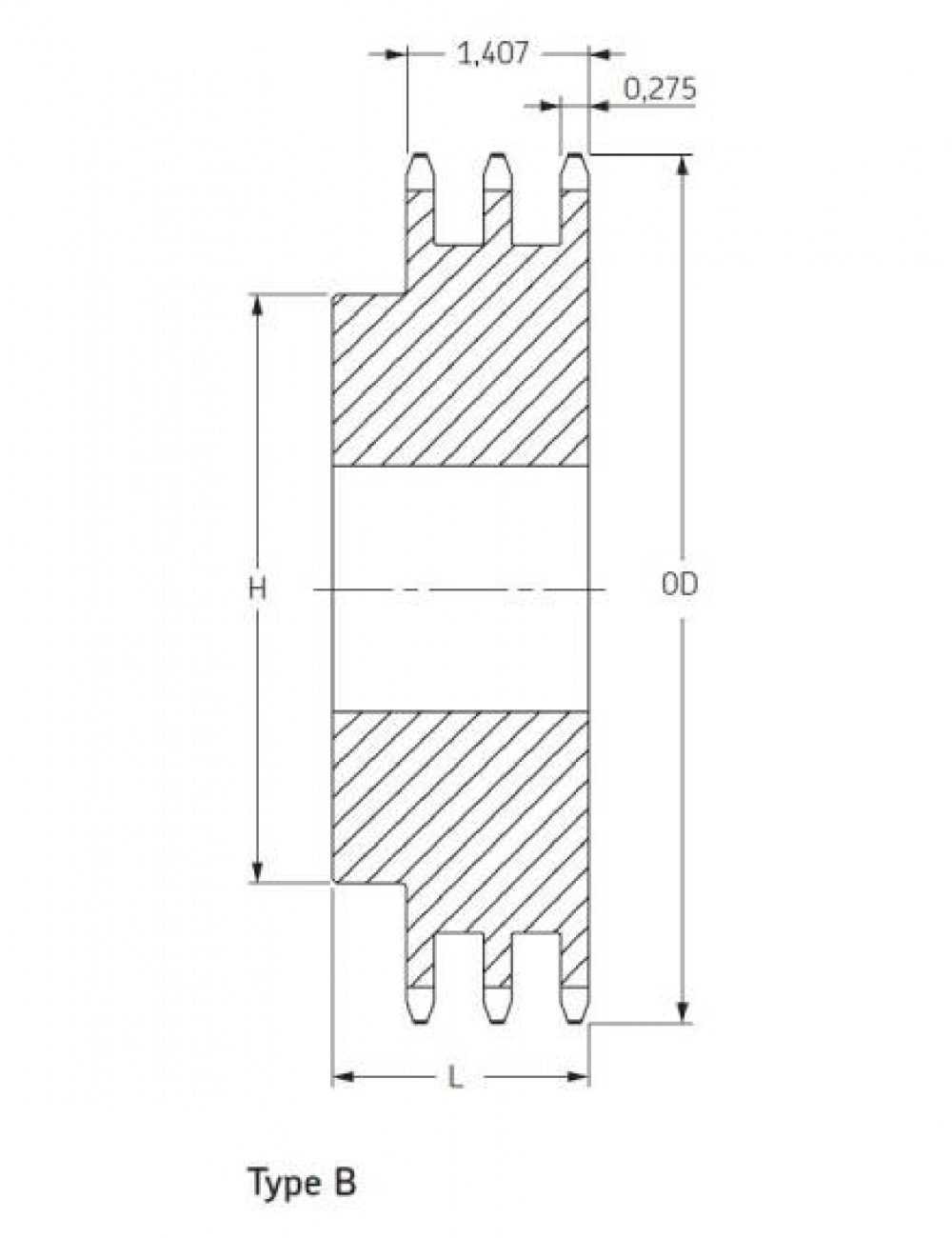

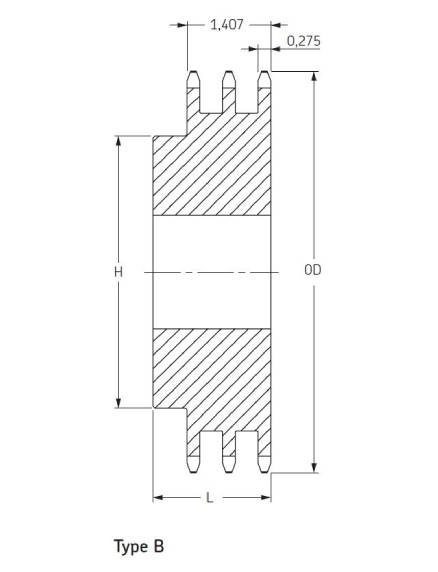

DIMENSIONS : Outside diameter = 2.00 inch , Type = B , Bore min = 1/2 inch , Bore max = 3/4 inch ,H = 1 7/16 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 2.17 inch , Type = B , Bore min = 1/2 inch , Bore max = 15/16 inch ,H = 1 9/16 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 2.33 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 inch ,H = 1 1/2 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 2.49 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 1/8 inch ,H = 1 11/16 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 2.65 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 1/4 inch ,H = 1 13/16 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 2.81 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 3/8 inch ,H = 2 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 2.98 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 7/16 inch ,H = 2 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 3.14 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/2 inch ,H = 2 5/16 in. , L =2 1/8 in.
Price
Model
PHS 40 - 3B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 3.30 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 2 1/8 in.
Price
Model
PHS 40 - 3B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 3.46 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 7/8 inch ,H =2 5/8 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 3.62 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 7/8 inch ,H = 2 3/4 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 3.78 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 7/8 inch ,H = 2 7/8 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 3.94 inch , Type = B , Bore min = 5/8 inch , Bore max = 2 inch ,H = 3 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 4.10 inch , Type = B , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 4.26 inch , Type = B , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 4.42 inch , Type = B , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 5.06 inch , Type = B , Bore min = 7/8 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B35
Model description
No.Teeth = 35
DIMENSIONS : Outside diameter = 5.86 inch , Type = B , Bore min = 7/8 inch , Bore max = 2 1/4 inch ,H =3 1/4 in. , L = 2 1/4 in.
Price
Model
PHS 40 - 3B36
Model description
No.Teeth = 36
DIMENSIONS : Outside diameter = 6.02 inch , Type = B , Bore min = 15/16 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 3/8 in.
Price
Model
PHS 40 - 3B42
Model description
No.Teeth = 42
DIMENSIONS : Outside diameter = 6.97 inch , Type = B , Bore min = 15/16 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 3/8 in.
Price
Model
PHS 40 - 3B48
Model description
No.Teeth = 48
DIMENSIONS : Outside diameter = 7.93 inch , Type = B , Bore min = 15/16 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L =2 3/8 in.
Price
Model
PHS 40 - 3B52
Model description
No.Teeth = 52
DIMENSIONS : Outside diameter = 8.57 inch , Type = B , Bore min = 15/16 inch , Bore max = 2 1/2 inch ,H =3 3/4 in. , L = 2 3/8 in.
Price
Model
PHS 40 - 3B60
Model description
No.Teeth = 60
DIMENSIONS : Outside diameter = 9.84 inch , Type = B , Bore min = 15/16 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 3/8 in.
Price
Model
PHS 40 - 3B68
Model description
No.Teeth = 68
DIMENSIONS : Outside diameter = 11.12 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 2 5/8 in.
Price
Model
PHS 40 - 3B72
Model description
No.Teeth = 72
DIMENSIONS : Outside diameter = 11.75 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H =4 in. , L = 2 5/8 in.
Price
Model
PHS 40 - 3B76
Model description
No.Teeth = 76
DIMENSIONS : Outside diameter = 12.39 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 2 5/8 in.
Price
Model
PHS 40 - 3B84
Model description
No.Teeth = 84
DIMENSIONS : Outside diameter = 13.66 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 2 3/4 in.
Price
Model
PHS 40 - 3B95
Model description
No.Teeth = 95
DIMENSIONS : Outside diameter = 15.42 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 2 3/4 in.
Price
Model
PHS 40 - 3B102
Model description
No.Teeth = 102
DIMENSIONS : Outside diameter = 16.53 inch , Type = B , Bore min = 1 3/16 inch , Bore max =2 3/4 inch ,H = 4 1/4 in. , L = 1 3/4 in.
Price
