PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 50 - 1TBXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่ชั้นเดียว Pitch = 5/8" มีดุมยื่น 1 ข้าง ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50 - 1TB12
Model description
No.Teeth = 12 , Bushing Size = 1008

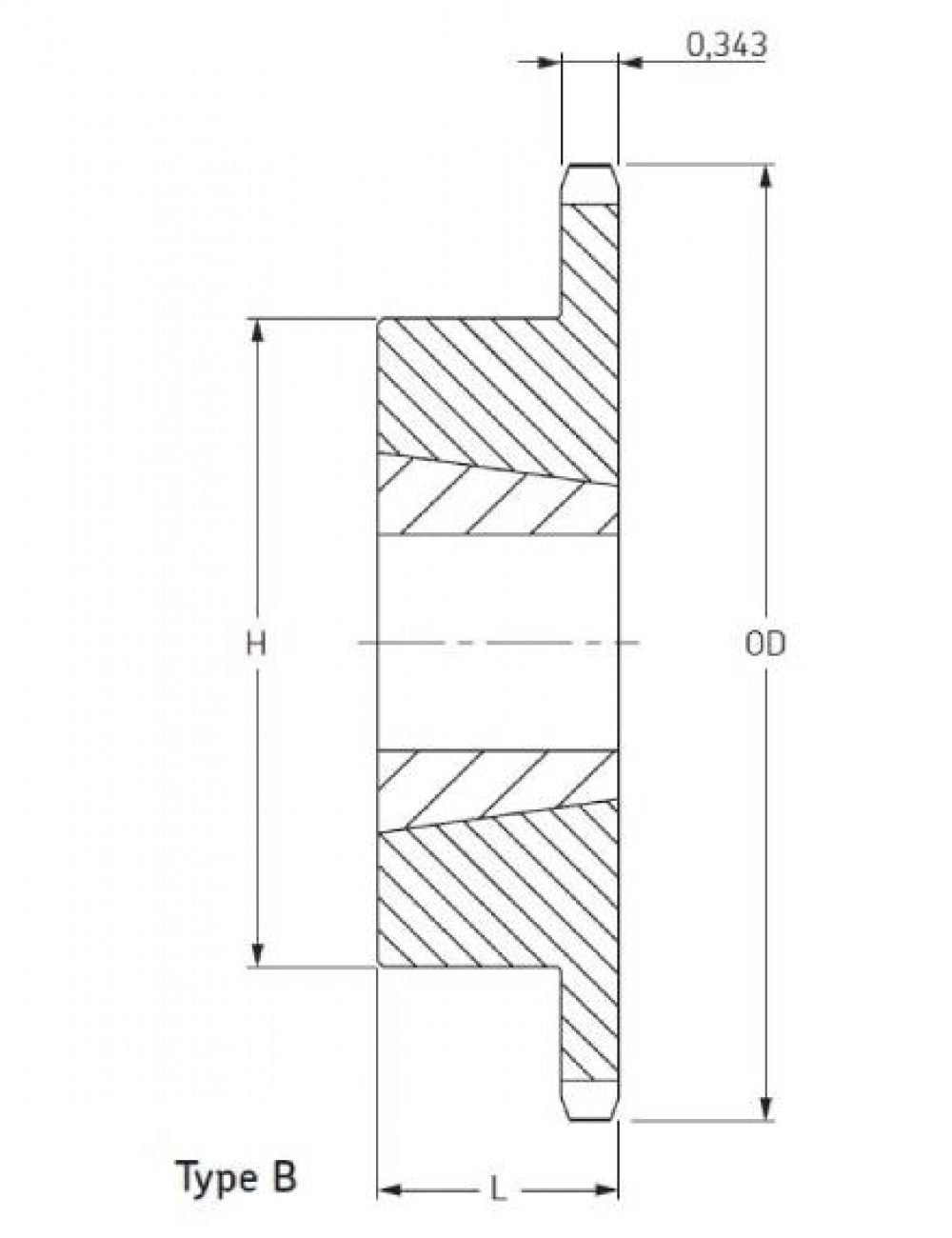

DIMENSIONS :Outside diameter = 2.708 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 15/16 in.
Price
Model
PHS 50 - 1TB13
Model description
No.Teeth = 13 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 2.911 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 13/16 in.
Price
Model
PHS 50 - 1TB14
Model description
No.Teeth = 14 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 3.113 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 15/16 in.
Price
Model
PHS 50 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.315 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 15/12 in.
Price
Model
PHS 50 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.517 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 2 25/32 in.
Price
Model
PHS 50 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.719 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 2 25/32 in.
Price
Model
PHS 50 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.920 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H =2 25/32 in.
Price
Model
PHS 50 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.120 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 50 - 1TB20
Model description
No.Teeth = 20 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.321 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.522 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 1TB22
Model description
No.Teeth = 22 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.722 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 1TB23
Model description
No.Teeth = 23 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 4.922 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L =1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB24
Model description
No.Teeth = 24 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.122 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L =1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB25
Model description
No.Teeth = 25 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.322 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.522 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB27
Model description
No.Teeth = 27 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.723 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB28
Model description
No.Teeth = 28 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 5.922 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB30
Model description
No.Teeth = 30 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 6.321 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB32
Model description
No.Teeth = 32 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 6.721 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 7.319 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB36
Model description
No.Teeth = 36 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 7.519 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB40
Model description
No.Teeth = 40 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 8.316 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H =3 9/16 in.
Price
Model
PHS 50 - 1TB42
Model description
No.Teeth = 42 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 8.715 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L =1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 9.313 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB48
Model description
No.Teeth = 48 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 9.911 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB54
Model description
No.Teeth = 54 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 11.106 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 2012
DIMENSIONS :Outside diameter = 12.301 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Model
PHS 50 - 1TB70
Model description
No.Teeth = 70 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 14.292 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H =3 1/4 in.
Price
Model
PHS 50 - 1TB72
Model description
No.Teeth = 72 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 15.690 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 1TB80
Model description
No.Teeth = 80 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 16.282 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 1TB84
Model description
No.Teeth = 84 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 17.079 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 3 1/4 in.
Price
Model
PHS 50 - 1TB96
Model description
No.Teeth = 96 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 19.466 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L =1 3/4 in. , H =3 1/4 in.
Price
Model
PHS 50 - 1TB112
Model description
No.Teeth = 112 , Bushing Size = 2517
DIMENSIONS :Outside diameter = 22.651 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 3 1/4 in.
Price
