PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 41 - 1TBXX
แบรนด์
SKF
รายละเอียด :

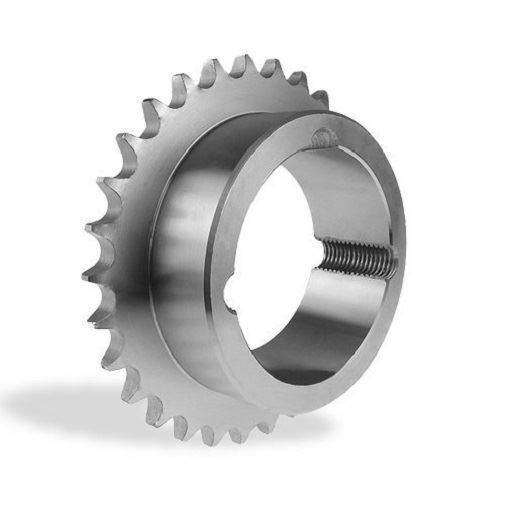

เฟื่องโซ่ชั้นเดียว Pitch = 1/2" มีดุมยื่น 1 ข้าง ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 41 - 1TB14
Model description
No.Teeth = 14 , Bushing Size = 1008

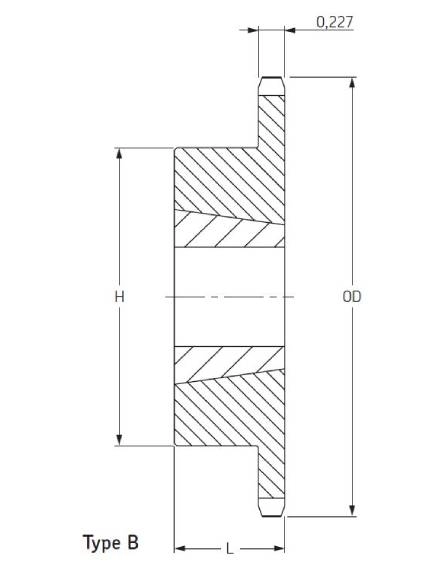

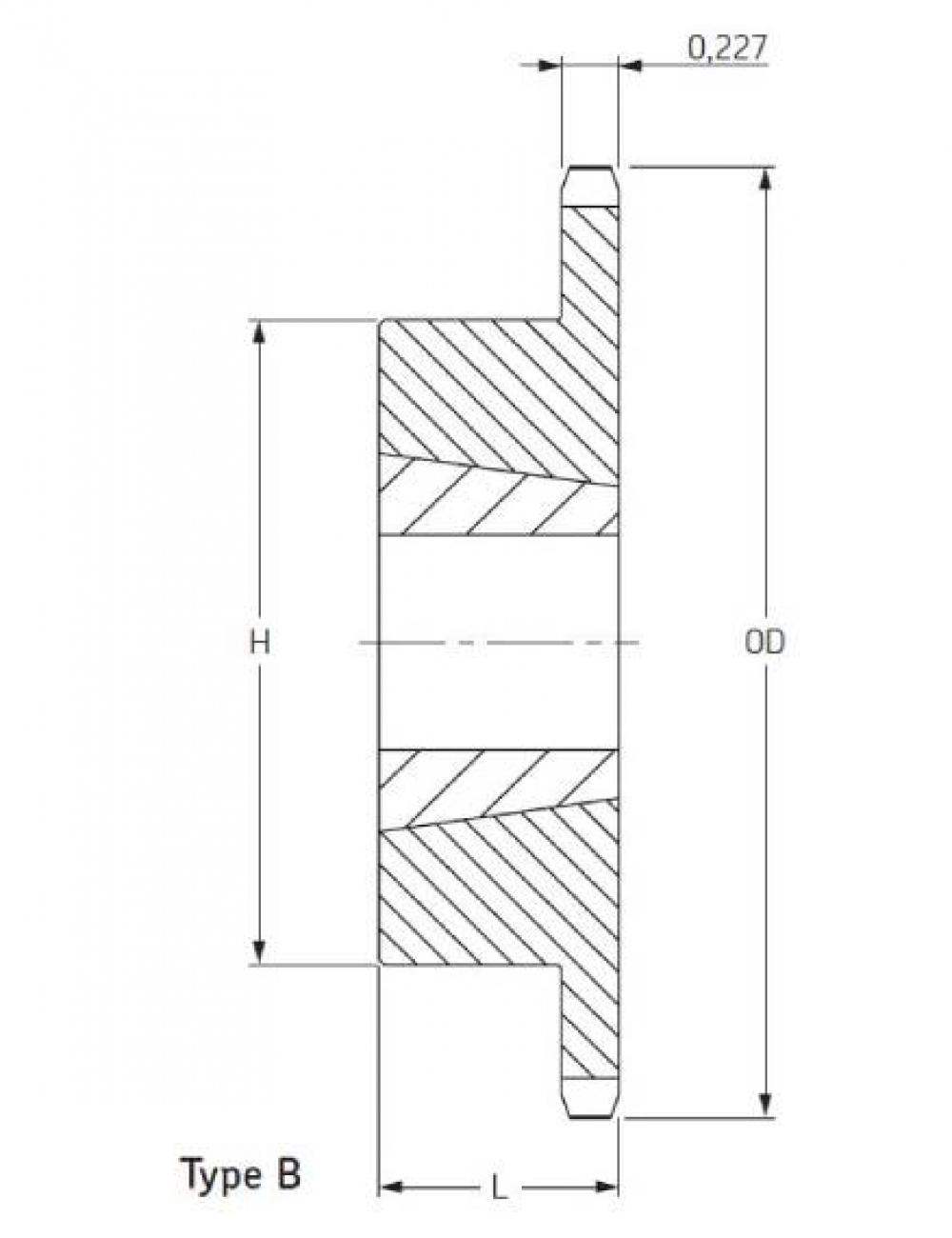

DIMENSIONS :Outside diameter = 2.49 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 7/8 in.
Price
Model
PHS 41 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 2.65 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 1 7/8 in.
Price
Model
PHS 41 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 1008
DIMENSIONS :Outside diameter = 2.81 inch , Type = B , Bore min = 3/8 inch , Bore max = 1 inch ,L = 7/8 in. , H = 2 in.
Price
Model
PHS 41 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 2.97 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L =1 in. , H = 2 3/8 in.
Price
Model
PHS 41 - 1TB18
Model description
No.Teeth = 18 , Bushing Size =
DIMENSIONS :Outside diameter = 3.14 inch , Type = B , Bore min = 5/8 inch , Bore max =1 1/4 inch ,L = 1 in. , H = 2 3/8 in.
Price
Model
PHS 41 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.30 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/4 inch ,L = 1 in. , H = 2 1/2 in.
Price
Model
PHS 41 - 1TB20
Model description
No.Teeth = 20 , Bushing Size = 1210
DIMENSIONS :Outside diameter = 3.46 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 2 7/8 in.
Price
Model
PHS 41 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.62 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB22
Model description
No.Teeth = 22 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.78 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB23
Model description
No.Teeth = 23 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 3.94 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB24
Model description
No.Teeth = 24 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.10 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H =3 in.
Price
Model
PHS 41 - 1TB25
Model description
No.Teeth = 25 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.26 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.42 inch , Type =B , Bore min = 1/2 inch , Bore max =1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB28
Model description
No.Teeth = 28 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 4.74 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB30
Model description
No.Teeth = 30 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 5.06 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L =1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB32
Model description
No.Teeth = 32 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 5.38 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 5.86 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB36
Model description
No.Teeth = 36 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 6.02 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB40
Model description
No.Teeth = 40 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 6.65 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 7.45 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L =1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB48
Model description
No.Teeth = 48 , Bushing Size = 1610
DIMENSIONS :Outside diameter =7.93 inch , Type = B , Bore min =1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB54
Model description
No.Teeth = 54 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 8.88 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 9.84 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB70
Model description
No.Teeth = 70 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 11.43 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB72
Model description
No.Teeth = 72 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 11.75 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB80
Model description
No.Teeth = 80 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 13.03 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
Model
PHS 41 - 1TB96
Model description
No.Teeth = 96 , Bushing Size = 1610
DIMENSIONS :Outside diameter = 15.57 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 in. , H = 3 in.
Price
