PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 160 - 1TBXX
แบรนด์
SKF
รายละเอียด :

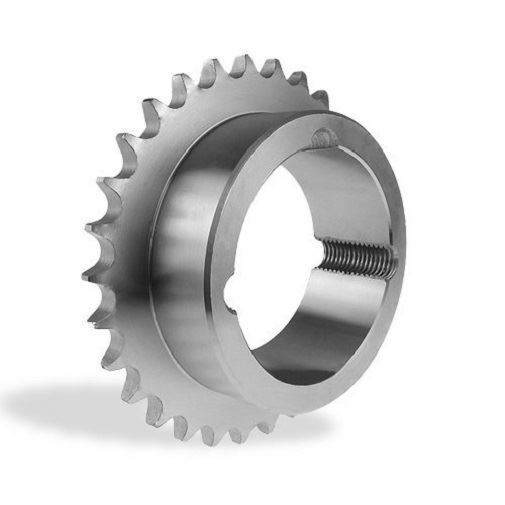

เฟื่องโซ่ชั้นเดียว Pitch = 2" ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 160 - 1TB11
Model description
No.Teeth = 11 , Bushing Size = 2517

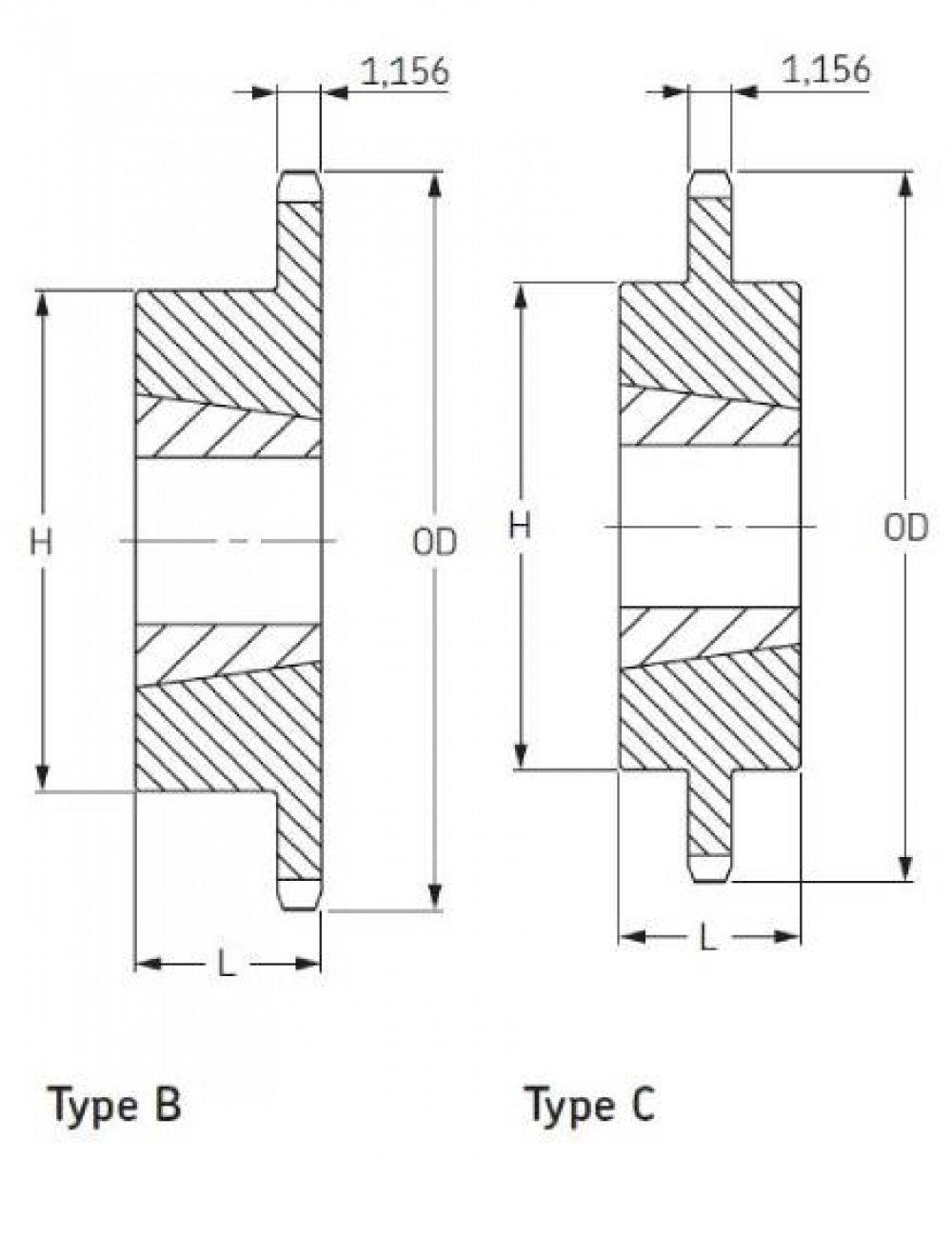

DIMENSIONS :Outside diameter = 8.011 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 160 - 1TB12
Model description
No.Teeth = 12 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 8.664 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 160 - 1TB13
Model description
No.Teeth = 13 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 9.314 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 160 - 1TB14
Model description
No.Teeth = 14 , Bushing Size =3020
DIMENSIONS :Outside diameter = 9.963 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 160 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 10.609 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 160 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 11.255 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 160 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 11.899 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 160 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 12.543 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 160 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 13.185 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 160 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 14.470 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H = 6 1/2 in.
Price
Model
PHS 160 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 17.671 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L = 3 1/2 in. , H =6 1/2 in.
Price
Model
PHS 160 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 4040
DIMENSIONS :Outside diameter = 23.422 inch , Type = C , Bore min = 1 3/4 inch , Bore max = 4 inch ,L = 4 in. , H = 7 3/4 in.
Price
Model
PHS 160 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 4040
DIMENSIONS :Outside diameter = 29.802 inch , Type = C , Bore min = 1 3/4 inch , Bore max = 4 inch ,L = 4 in. , H = 7 3/4 in.
Price
Model
PHS 160 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 4545
DIMENSIONS :Outside diameter = inch , Type = C , Bore min = 2 1/8 inch , Bore max = 4 1/2 inch ,L = 4 1/2 in. , H = 7 3/4 in.
Price
