PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 140 - 1TBXX
แบรนด์
SKF
รายละเอียด :

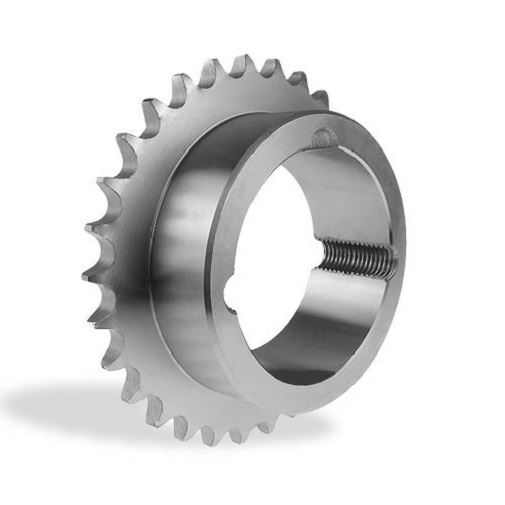

เฟื่องโซ่ชั้นเดียว Pitch = 1.3/4" ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 140 - 1TB12
Model description
No.Teeth = 12 , Bushing Size = 2517

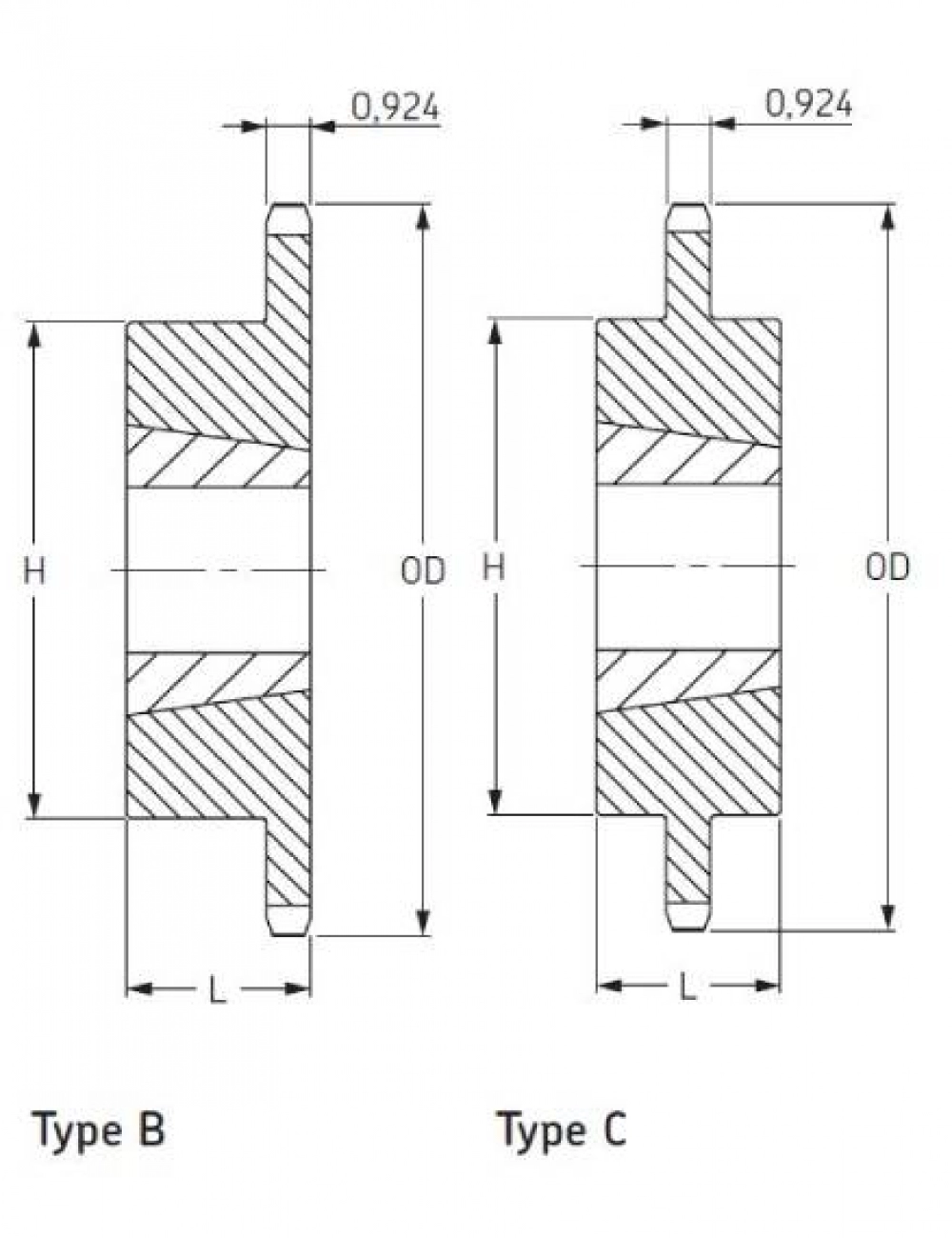

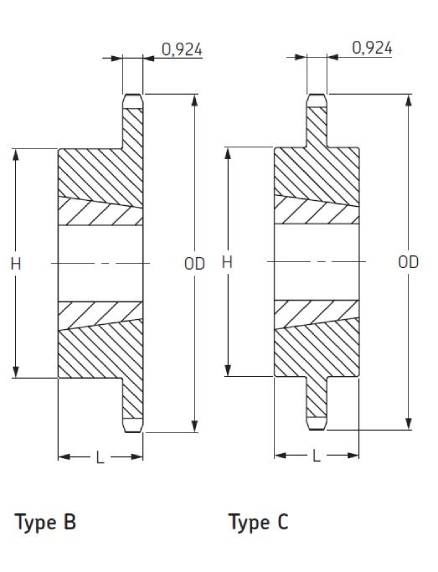

DIMENSIONS :Outside diameter = 7.581 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Model
PHS 140 - 1TB13
Model description
No.Teeth = 13 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 8.150 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB14
Model description
No.Teeth = 14 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 8.718 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 9.283 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 9.848 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 10.411 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 10.975 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB19
Model description
No.Teeth = 19 , Bushing Size =3020
DIMENSIONS :Outside diameter = 11.537 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 12.660 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB26
Model description
No.Teeth = 26 , Bushing Size = 3020
DIMENSIONS :Outside diameter = 15.463 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Model
PHS 140 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 3535
DIMENSIONS :Outside diameter = 20.494 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,L =3 1/2 in. , H =6 1/2 in.
Price
Model
PHS 140 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 4040
DIMENSIONS :Outside diameter = 26.076 inch , Type = C , Bore min = 1 3/4 inch , Bore max = 4 inch ,L = 4 in. , H = 7 3/4 in.
Price
Model
PHS 140 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 4040
DIMENSIONS :Outside diameter = 34.442 inch , Type = C , Bore min = 1 3/4 inch , Bore max = 4 inch ,L = 4 in. , H = 7 3/4 in.
Price
Model
PHS 140 - 1TB70
Model description
No.Teeth = 70 , Bushing Size = 4040
DIMENSIONS :Outside diameter = 40.017 inch , Type = C , Bore min = 1 3/4 inch , Bore max = 4 inch ,L = 4 in. , H = 7 3/4 in.
Price
