ANSI PHS 100 - 1TBXX

ชื่อรุ่น :

ANSI PHS 100 - 1TBXX

แบรนด์

SKF

รายละเอียด :

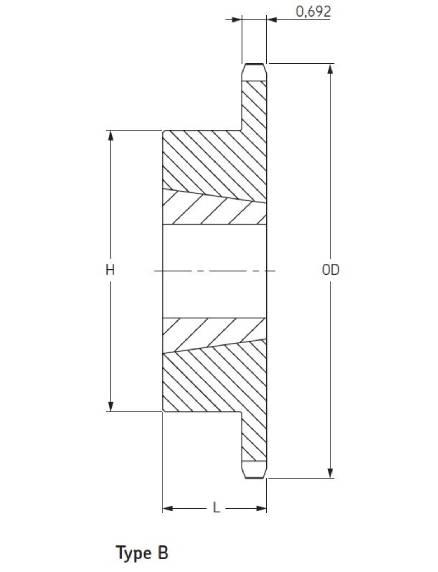

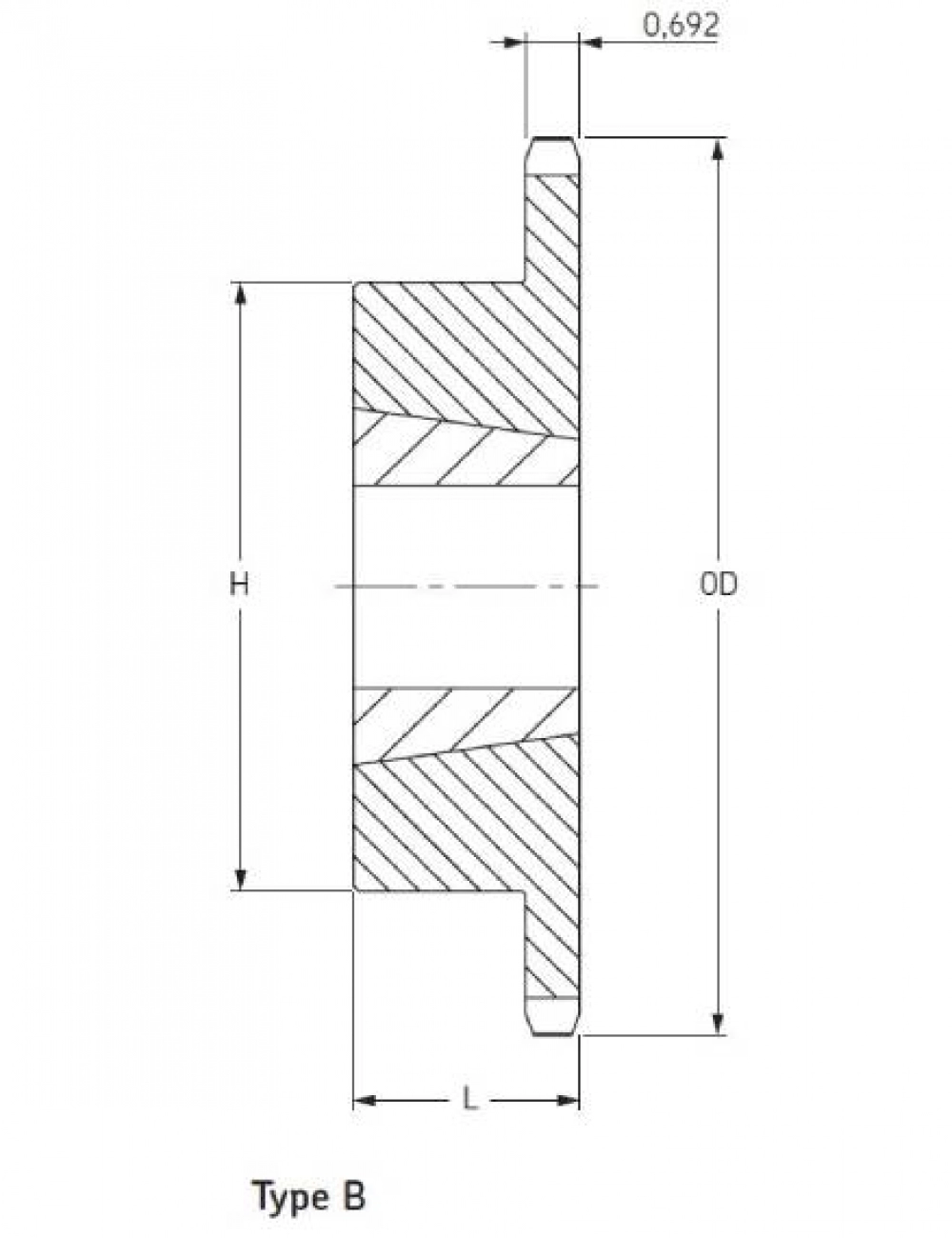

เฟื่องโซ่ชั้นเดียว Pitch = 1. 1/4" มีดุมยื่น 1 ข้าง ล็อดเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHS 100 - 1TB11
Model description
No.Teeth = 11 , Bushing Size = 1615 DIMENSIONS :Outside diameter = 5.007 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 1/2 in. , H = 3 in.
Price
Call
Model
PHS 100 - 1TB12
Model description
No.Teeth = 12 , Bushing Size = 1615 DIMENSIONS :Outside diameter = 5.415 inch , Type = B , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L = 1 1/2 in. , H = 3 1/4 in.
Price
Call
Model
PHS 100 - 1TB13
Model description
No.Teeth = 13 , Bushing Size = 2012 DIMENSIONS :Outside diameter = 5.821 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H = 3 9/16 in.
Price
Call
Model
PHS 100 - 1TB14
Model description
No.Teeth = 14 , Bushing Size = 2012 DIMENSIONS :Outside diameter = 6.227 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 inch ,L = 1 1/4 in. , H =3 9/16 in.
Price
Call
Model
PHS 100 - 1TB15
Model description
No.Teeth = 15 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 6.631 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/4 in.
Price
Call
Model
PHS 100 - 1TB16
Model description
No.Teeth = 16 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 7.034 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB17
Model description
No.Teeth = 17 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 7.437 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB18
Model description
No.Teeth = 18 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 7.839 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB19
Model description
No.Teeth = 19 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 8.241 inch , Type = B , Bore min = 3/4 inch , Bore max =2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB20
Model description
No.Teeth = 20 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 8.642 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB21
Model description
No.Teeth = 21 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 9.043 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L =1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB22
Model description
No.Teeth = 22 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 9.444 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H = 4 1/2 in.
Price
Call
Model
PHS 100 - 1TB24
Model description
No.Teeth = 24 , Bushing Size = 2517 DIMENSIONS :Outside diameter = 10.245 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H =4 1/2 in.
Price
Call
Model
PHS 100 - 1TB26
Model description
No.Teeth = 26 , Bushing Size =2517 DIMENSIONS :Outside diameter = 11.045 inch , Type = B , Bore min = 3/4 inch , Bore max = 2 1/2 inch ,L = 1 3/4 in. , H =4 1/2 in.
Price
Call
Model
PHS 100 - 1TB28
Model description
No.Teeth = 28 , Bushing Size =3020 DIMENSIONS :Outside diameter = 11.844 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Call
Model
PHS 100 - 1TB30
Model description
No.Teeth = 30 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 12.643 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Call
Model
PHS 100 - 1TB32
Model description
No.Teeth = 32 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 13.442 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Call
Model
PHS 100 - 1TB35
Model description
No.Teeth = 35 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 14.639 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H =5 1/4 in.
Price
Call
Model
PHS 100 - 1TB36
Model description
No.Teeth = 36 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 15.038 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H =5 1/4 in.
Price
Call
Model
PHS 100 - 1TB40
Model description
No.Teeth = 40 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 16.633 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Call
Model
PHS 100 - 1TB45
Model description
No.Teeth = 45 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 18.626 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L =2 in. , H = 5 1/4 in.
Price
Call
Model
PHS 100 - 1TB48
Model description
No.Teeth = 48 , Bushing Size = 3020 DIMENSIONS :Outside diameter =19.821 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Call
Model
PHS 100 - 1TB54
Model description
No.Teeth = 54 , Bushing Size =3020 DIMENSIONS :Outside diameter = 22.212 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H =5 1/4 in.
Price
Call
Model
PHS 100 - 1TB60
Model description
No.Teeth = 60 , Bushing Size = 3020 DIMENSIONS :Outside diameter = 24.601 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,L = 2 in. , H = 5 1/4 in.
Price
Call
